BMW R1100S (1999) [162/302] Disassembling assembling output shaft
![BMW R1100S (1999) [162/302] Disassembling assembling output shaft](/views2/1121020/page162/bga2.png)
23.14
Disassembling/assembling output
shaft

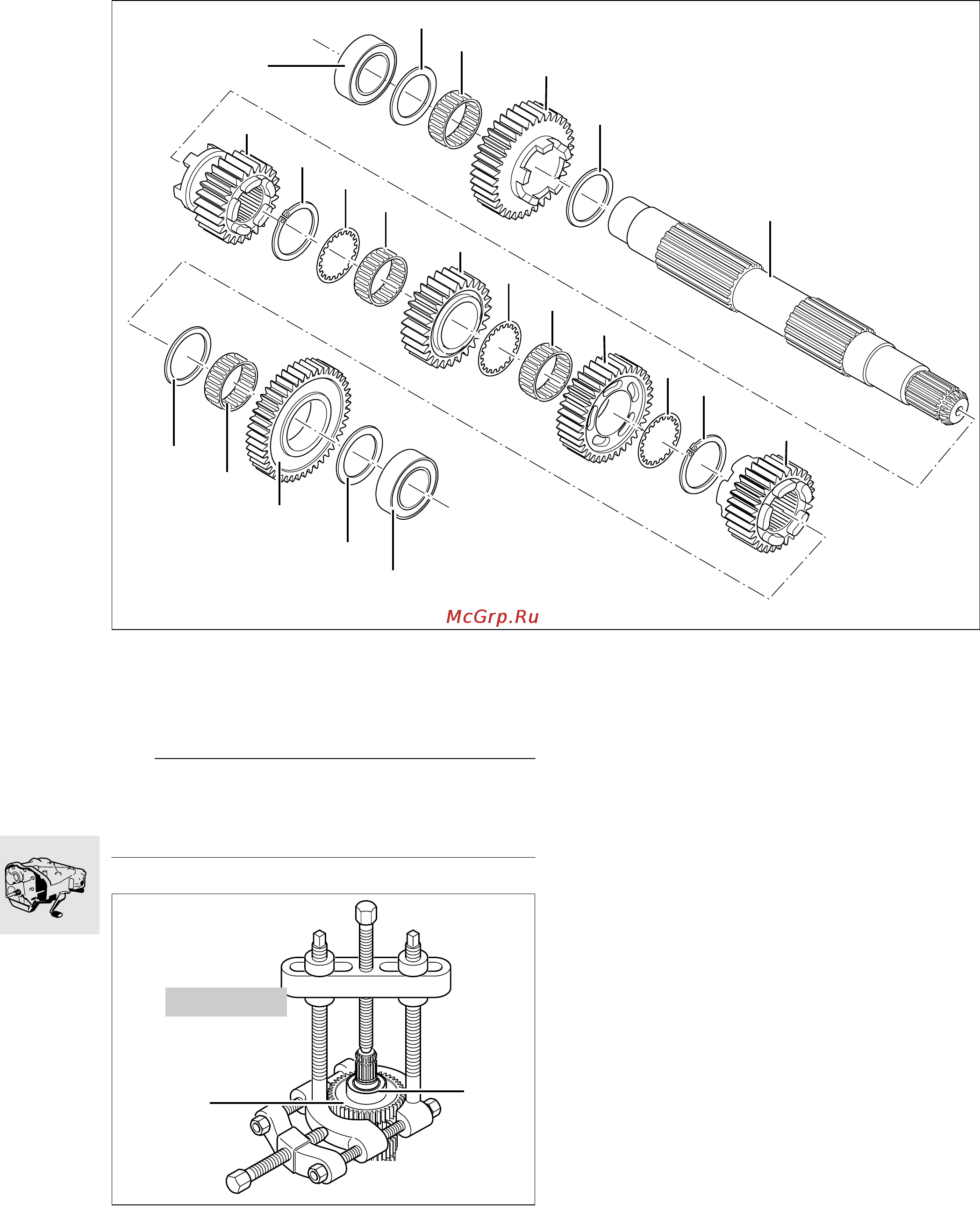

Disassembling output shaft
e Caution:
To avoid damaging the needle roller bearing on the
splines, spread it carefully at the end face when re-
moving.
•
Using universal puller, BMW No. 00 7 500, pull
off grooved ball bearing (22) together with
1st gear wheel (20).
•
Remove spacing washer (21), shift gear wheel for
1st gear (20), needle roller bearing (19) and
spacing washer (18).
•
Remove sliding gearwheel (7).
•
Remove circlip (8), backup washer (9), shift gear-
wheel for 3rd gear (10) and needle roller
bearing (11).
•
Remove backup washer (12), 4th gear shift
wheel (13), needle roller bearing (14) and backup
washer (15).
•
Remove circlip (16) and sliding gearwheel for
5th gear (17).
•
Turn output shaft (6) other way round and clamp
into the vise with soft jaws.
•
Using universal puller, BMW No. 00 7 500, pull
off deep-groove ball bearing (1) together with
shift gearwheel for 2nd gear (4).
•
Remove shim washer (2), needle roller
bearing (3), shift gearwheel for 2nd gear (4) and
thrust washer (5).
KR230100
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
2
1
00 7 500
KR230110
22
20
