12.10

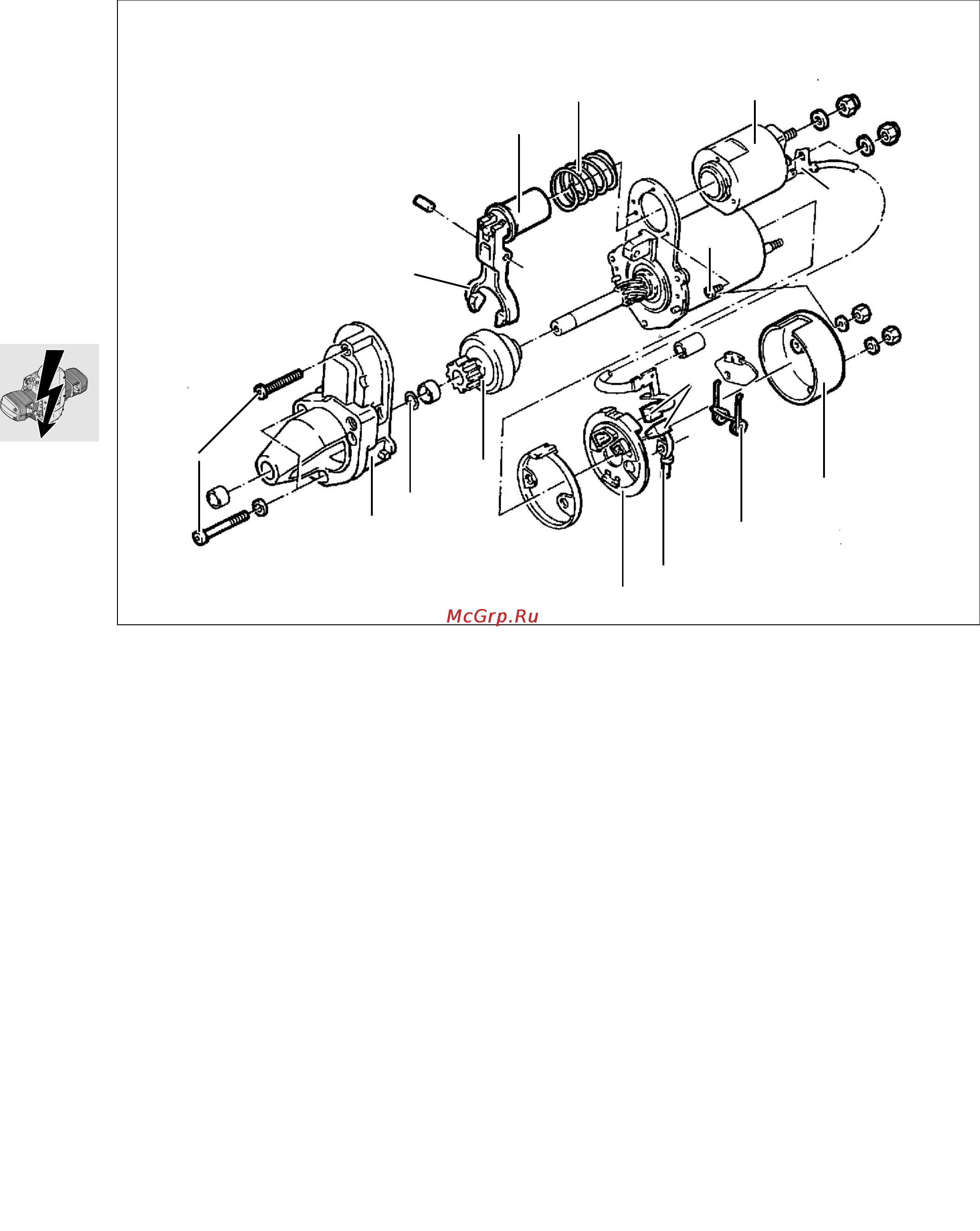

Disassembling/assembling starter
motor
•
Disconnect lead (1).
•
Remove securing screws (2).
•
Remove flange (3).
•
Remove solenoid switch (4) after taking out the
retaining screws (5).
•
Remove release lever (6) and spring (7) from so-
lenoid switch (8).
•
Fit a socket of correct size, tap it lightly to back
off the bush and remove the retaining ring (9).
•
Remove the starter gear (10) from the shaft.
•
Installation is the reverse of the removal proce-
dure.
•
Coat the Bendix gear and pull-in ring with
grease.
Lubricant:
.........Bosch PZ 2 V 3 silicone grease or equivalent
Replacing carbon brushes
•
Disconnect lead (1).
•
Remove cover (11).
•
Remove holder (12) for carbon brushes.
•
Lift up retaining springs (13) and remove carbon
brushes (14).
•
Install carbon brushes with retaining plate.
•
Slide short lead (15) on to threaded pin.
•
Install cover (11).
•
Connect lead (1).
Checking starter motor
•
Test with BMW MoDiTeC.
Checking starter relay
•
Test with BMW MoDiTeC.
RS120080
9
15
13
11
10
2
5
8
7
4
14
6
1
3
12
