46.7

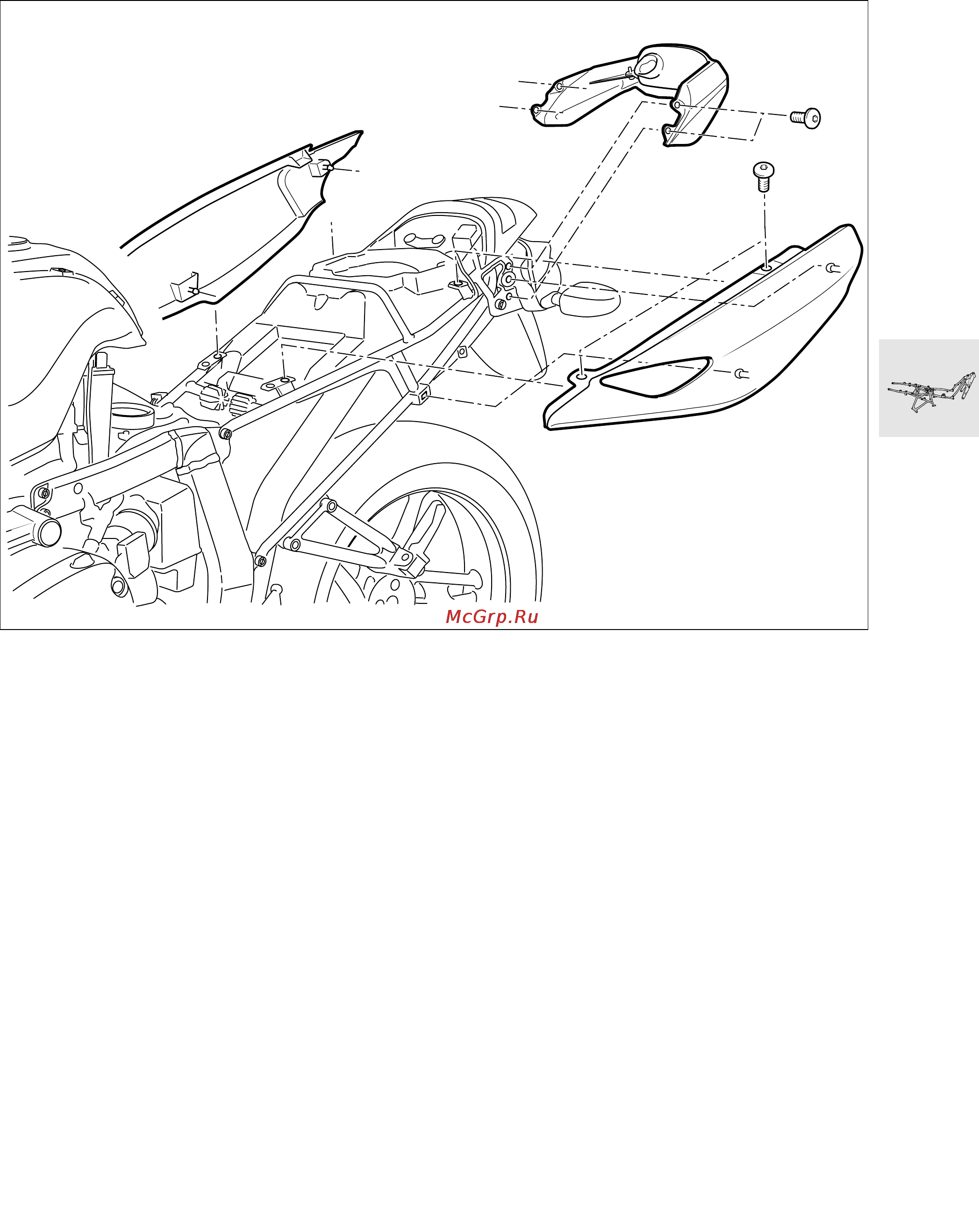

Removing and installing rear side
panels
•
Remove securing screws at top.
•
Release side panel from rubber mounts.
•
Installation is the reverse of the removal proce-
dure.
Removing and installing tail section
•
Remove rear side panels.
•
Remove securing screws.
•
Disconnect plugs for rear light and brake light.
•
Remove tail section.
•
Installation is the reverse of the removal proce-
dure.
S460020
