23.25
•

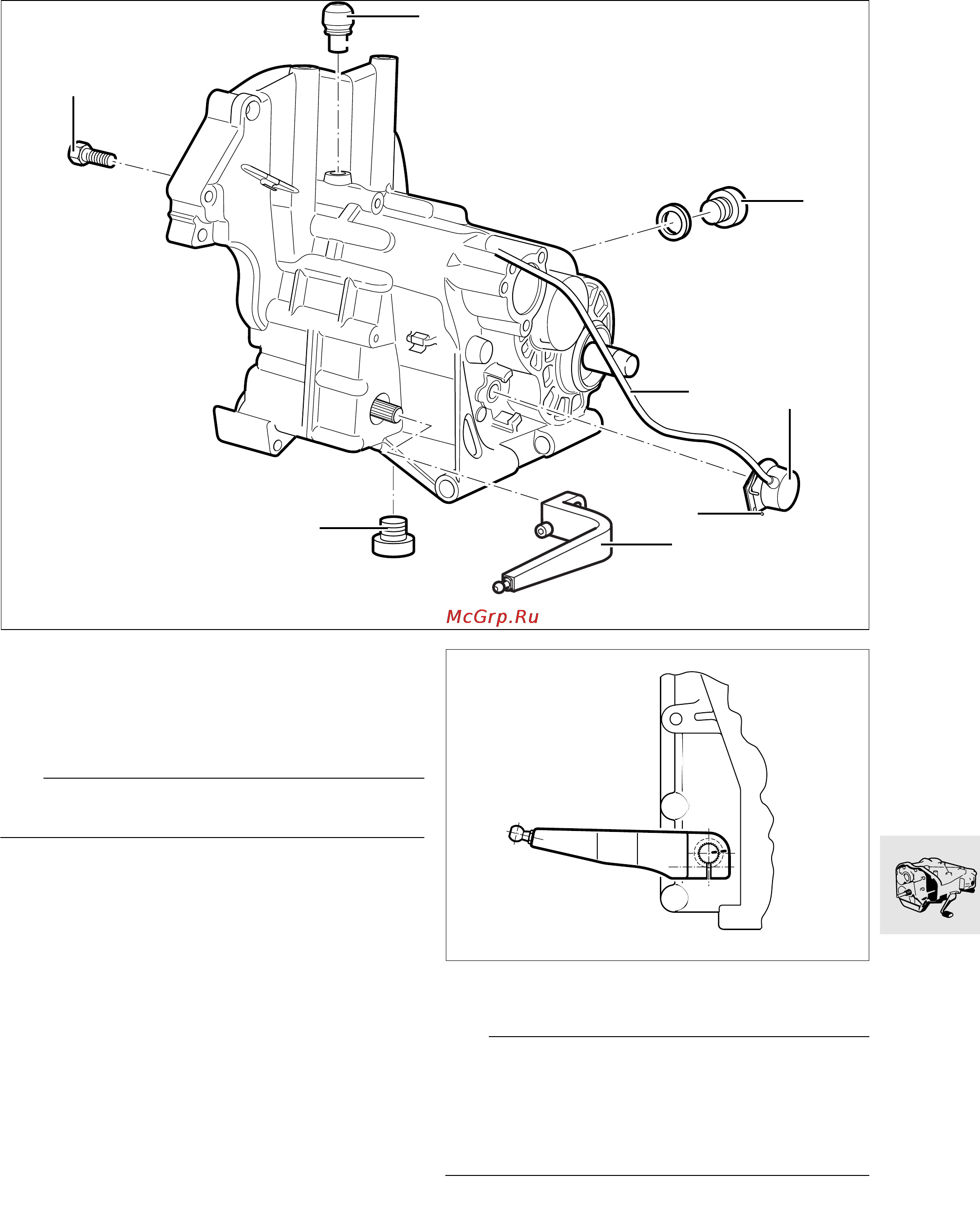

Insert screws (8) and tighten in diagonally oppo-
site sequence.
•
Install neutral indicator (4) and clip wire (3) into
position.
•
Install breather (1).
e Caution:
Clean metal particles off the magnet in drain plug (7).
•
Install oil drain plug (7).
•
Install oil-check and oil filler plug (2) with new
sealing ring.
•
Install shift lever in correct position.
L Note:
The shift lever is in the correct position when the
mark is aligned with the corresponding mark on the
selector shaft.
After assembling the gearbox, perform a functional
check.
Tightening torque:
Selector lever to selector shaft....................... 9 Nm
S230020
7
2
4
6
5
3
8
1
S230080
