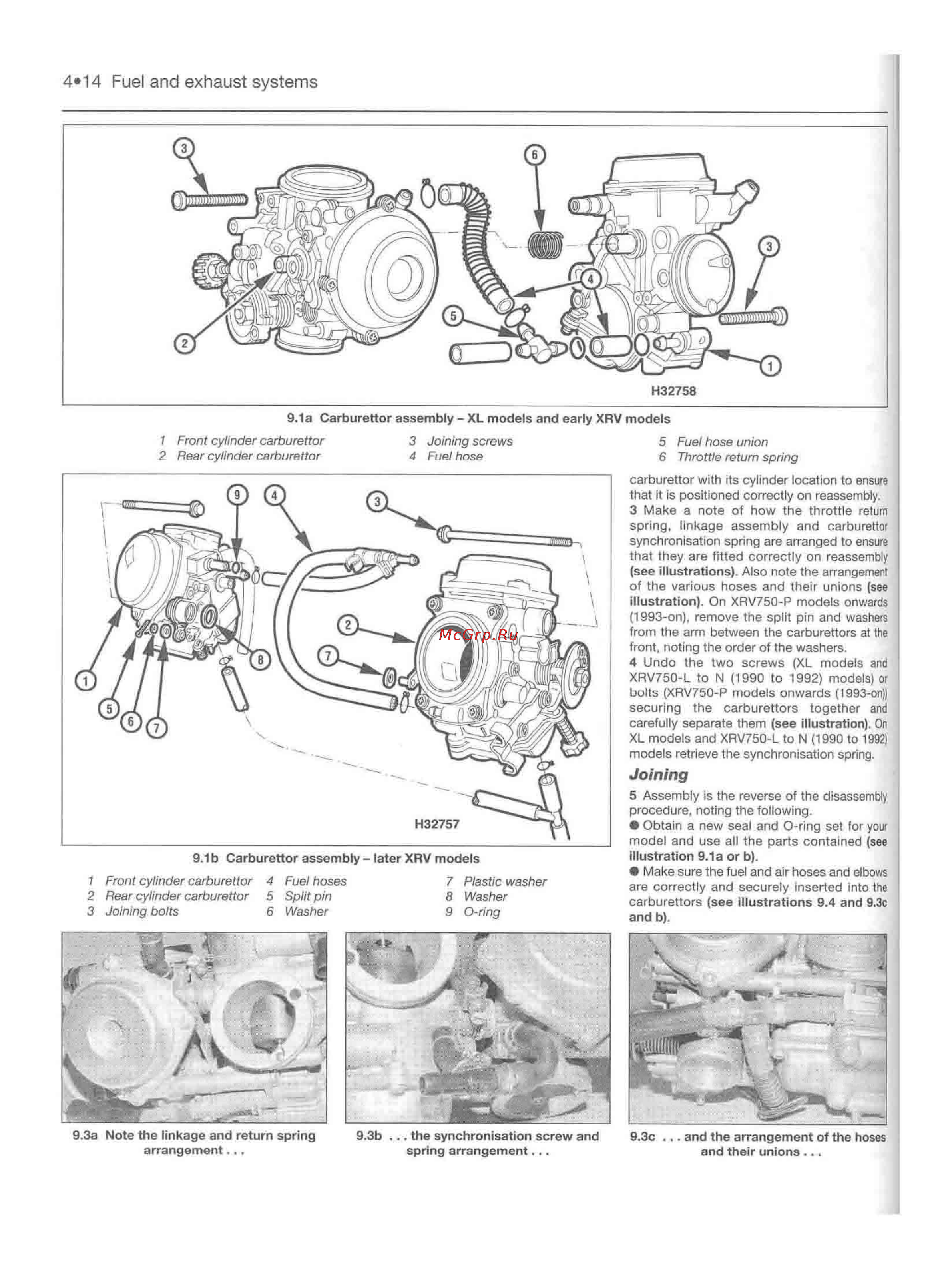

4 14 Fuel and exhaust systems H32758 9 1a Carburettor assembly XL models and early XRV models 1 Front cylinder carburettor 2 Rear cylinder carburettor 3 Joining screws 4 Fuel hose 5 Fuel hose union 6 Throttle return spring carburettor with its cylinder location to ensure that it is positioned correctly on reassembly 3 Make a note of how the throttle return spring linkage assembly and carburettor synchronisation spring are arranged to ensure that they are fitted correctly on reassembly see illustrations Also note the arrangement of the various hoses and their unions see illustration On XRV750 P models onwards 1993 on remove the split pin and washers from the arm between the carburettors at the front noting the order of the washers 4 Undo the two screws XL models and XRV750 L to N 1990 to 1992 models or bolts XRV750 P models onwards 1993 on securing the carburettors together and carefully separate them see illustration On XL models and XRV750 L to N 1990 to 1992 models retrieve the synchronisation spring Joining 9 1b Carburettor assembly later XRV models 1 2 3 Front cylinder carburettor Rear cylinder carburettor Joining bolts 4 Fuel hoses 5 Split pin 6 Washer 9 3a Note the linkage and return spring arrangement 7 Plastic washer 8 Washer 9 O ring 9 3b the synchronisation screw and spring arrangement 5 Assembly is the reverse of the disassembly procedure noting the following Obtain a new seal and O ring set for your model and use all the parts contained see Illustration 9 1a or b Make sure the fuel and air hoses and elbows are correctly and securely inserted into the carburettors see illustrations 9 4 and 9 3c and b 9 3c and the arrangement of the hoses and their unions
