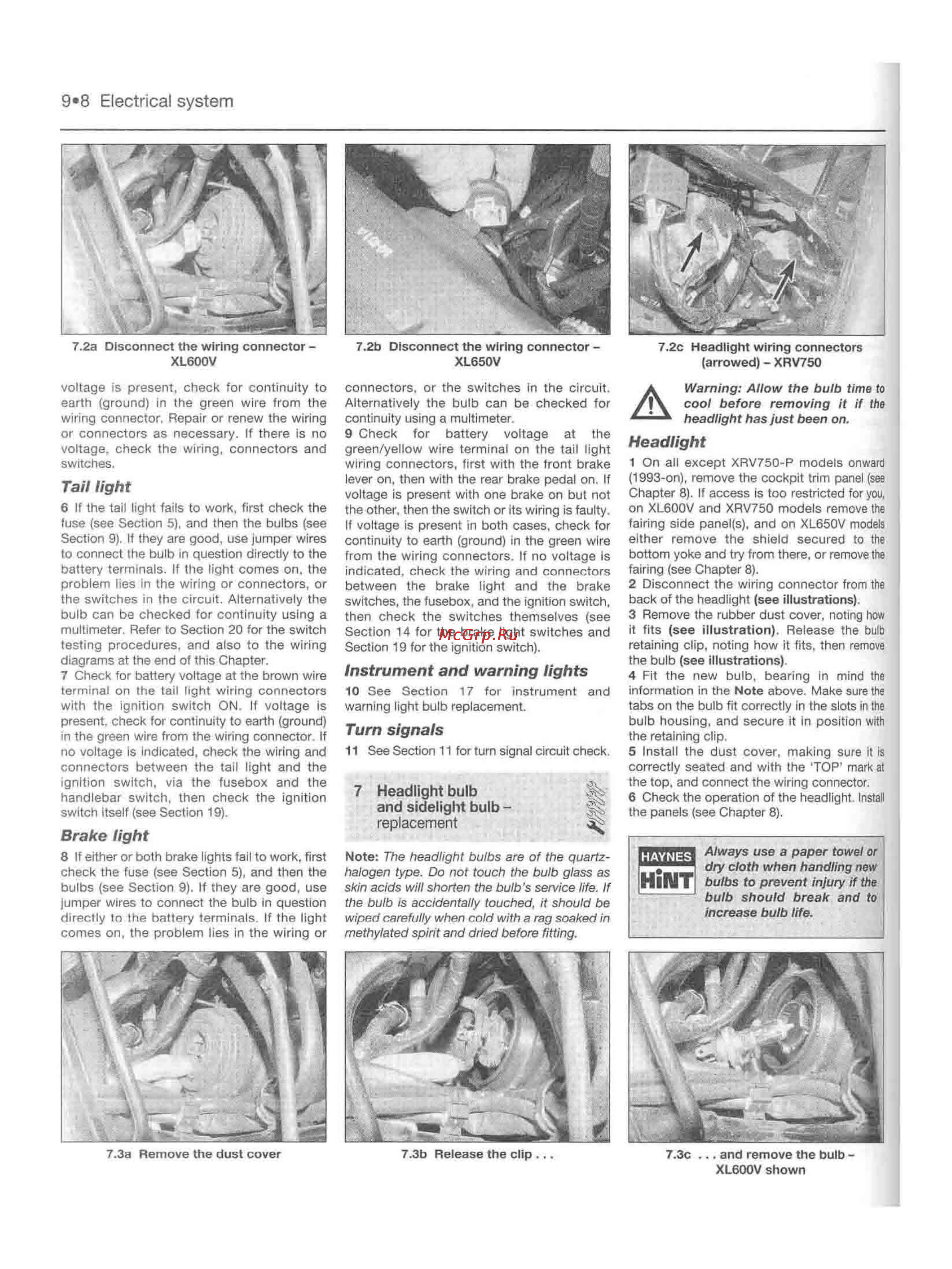

9 8 Electrical system 7 2a Disconnect the wiring connector XL600V 7 2b Disconnect the wiring connector XL650V voltage is present check for continuity to earth ground in the green wire from the wiring connector Repair or renew the wiring or connectors as necessary If there is no voltage check the wiring connectors and switches connectors or the switches in the circuit Alternatively the bulb can be checked for continuity using a multimeter 9 Check for battery voltage at the green yellow wire terminal on the tail light wiring connectors first with the front brake lever on then with the rear brake pedal on If voltage is present with one brake on but not the other then the switch or its wiring is faulty If voltage is present in both cases check for continuity to earth ground in the green wire from the wiring connectors If no voltage Is indicated check the wiring and connectors between the brake light and the brake switches the fusebox and the ignition switch then check the switches themselves see Section 14 for the brake light switches and Section 19 for the ignition switch Tail light 6 If the tail light fails to work first check the fuse see Section 5 and then the bulbs see Section 9 It they are good use jumper wires to connect the bulb in question directly to the battery terminals If the light comes on the problem lies In the wiring or connectors or the switches in the circuit Alternatively the bulb can be checked for continuity using a multimeter Refer to Section 20 for the switch testing procedures and also to the wiring diagrams at the end of this Chapter 7 Check for battery voltage at the brown wire terminal on the tail light wiring connectors with the ignition switch ON It voltage is present check for continuity to earth ground in the green wire from the wiring connector If no voltage is indicated check the wiring and connectors between the tail light and the ignition switch via the fusebox and the handlebar switch then check the ignition switch itself see Section 19 Brake light 8 If either or both brake lights fail to work first check the fuse see Section 5 and then the bulbs see Section 9 If they are good use jumper wires to connect the bulb in question directly to the battery terminals If the light comes on the problem lies in the wiring or 7 3a Remove the dust cover Instrument and warning lights 10 See Section 17 for instrument and warning light bulb replacement Turn signals 11 See Section 11 for turn signal circuit check 7 Headlight bulb and sidelight bulbreplacement Note The headlight bulbs are of the quartz halogen type Do not touch the bulb glass as skin acids will shorten the bulb s service life If the bulb is accidentally touched it should be wiped carefully when cold with a rag soaked in methylated spirit and dried before fitting 7 3b Release the clip 7 2c Headlight wiring connectors arrowed XRV750 A Warning Allow the bulb time to cool before removing it if the headlight has just been on Headlight 1 On all except XRV750 P models onward 1993 on remove the cockpit trim panel see Chapter 8 If access is too restricted for you on XL600V and XRV750 models remove the fairing side panel s and on XL650V models either remove the shield secured to the bottom yoke and try from there or remove the fairing see Chapter 8 2 Disconnect the wiring connector from the back of the headlight see illustrations 3 Remove the rubber dust cover noting how it fits see illustration Release the bulb retaining clip noting how it fits then remove the bulb see illustrations 4 Fit the new bulb bearing In mind the information in the Note above Make sure the tabs on the bulb fit correctly in the slots in the bulb housing and secure it in position with the retaining clip 5 Install the dust cover making sure it is correctly seated and with the TOP mark at the top and connect the wiring connector 6 Check the operation of the headlight Install the panels see Chapter 8 HAYNES Always use a paper towel or dry cloth when handling new bulbs to prevent injury if the bulb should break and to increase bulb life 7 3c and remove the bulb XL600V shown
