Honda TRANSALP XL600-650V (1987-2002) [144/291] Fuel and exhaust systems 4 17

Содержание

Похожие устройства

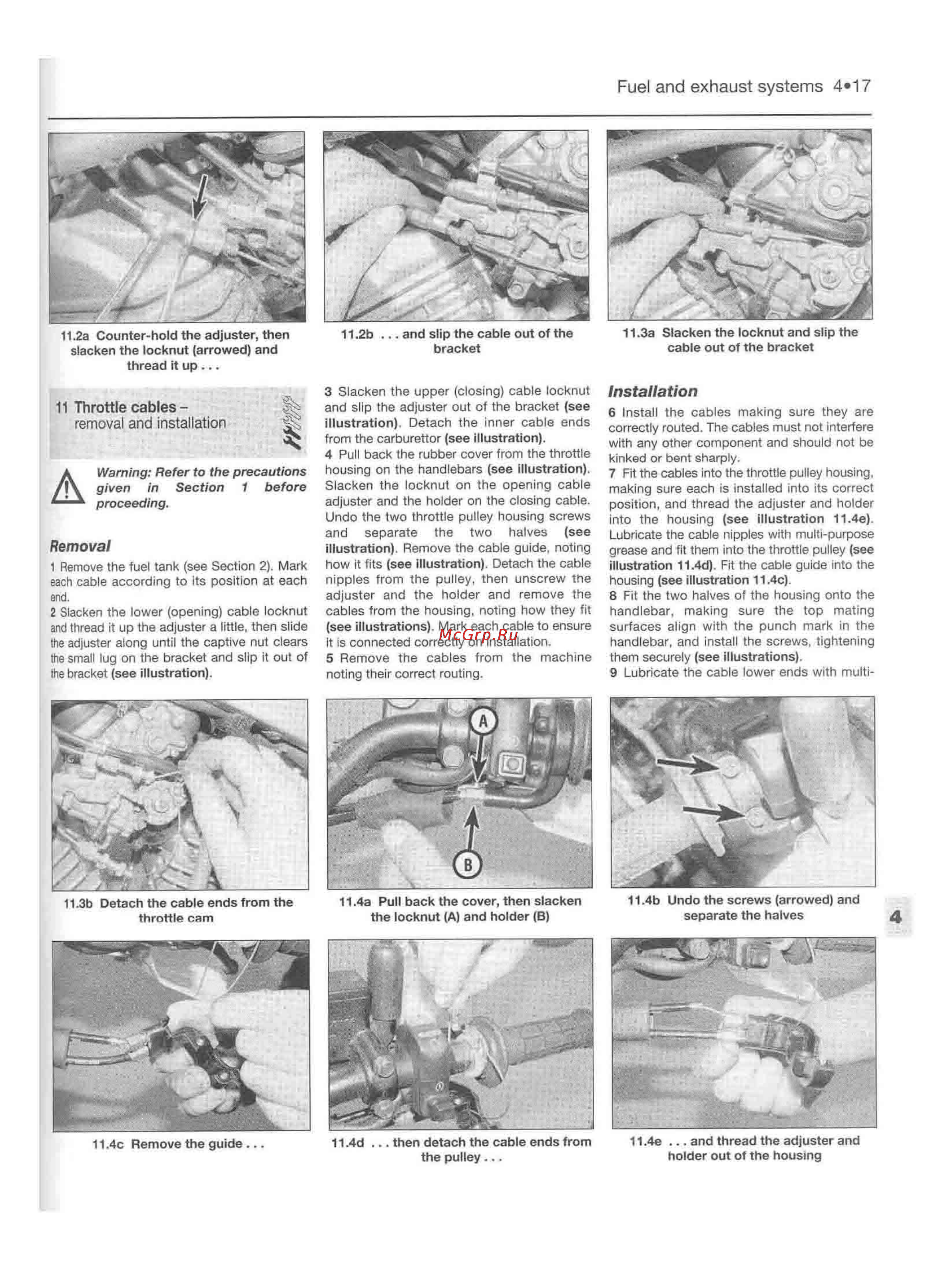

Fuel and exhaust systems 4 17 11 2a Counter hold the adjuster then slacken the locknut arrowed and thread it up 11 2b and slip the cable out of the bracket 11 3a Slacken the locknut and slip the cable out of the bracket Installation 1 Remove the fuel tank see Section 2 Mark each cable according to its position at each end 2 Slacken the lower opening cable locknut and thread it up the adjuster a little then slide the adjuster along until the captive nut clears the small lug on the bracket and slip it out of the bracket see illustration 3 Slacken the upper closing cable locknut and slip the adjuster out of the bracket see illustration Detach the inner cable ends from the carburettor see illustration 4 Pull back the rubber cover from the throttle housing on the handlebars see illustration Slacken the locknut on the opening cable adjuster and the holder on the closing cable Undo the Iwo throttle pulley housing screws and separate the two halves see illustration Remove the cable guide noting how it fits see illustration Detach the cable nipples from the pulley then unscrew the adjuster and the holder and remove the cables from the housing noting how they fit see illustrations Mark each cable to ensure it is connected correctly on installation 5 Remove the cables from the machine noting their correct routing 6 Install the cables making sure they are correctly routed The cables must not interfere with any other component and should not be kinked or bent sharply 7 Fit the cables into the throttle pulley housing making sure each is installed into its correct position and thread the adjuster and holder into the housing see illustration 11 4e Lubricate the cable nipples with multi purpose grease and fit them into the throttle pulley see illustration 11 4d Fit the cable guide into the housing see illustration 11 4c 8 Fit the two halves of the housing onto the handlebar making sure the top mating surfaces align with the punch mark in the handlebar and install the screws tightening them securely see illustrations 9 Lubricate the cable lower ends with multi 11 3b Detach the cable ends from the throttle cam 11 4a Pull back the cover then slacken the locknut A and holder B 11 4b Undo the screws arrowed and separate the halves 11 4d then detach the cable ends from the pulley 11 4e and thread the adjuster and holder out of the housing 11 Throttle cables removal and installation A Warning Refer to the precautions given in Section 1 before proceeding Removal 11 4c Remove the guide
