Chapter 13 Spanning Tree Protocol
GS2210 Series User’s Guide
129
13.6 Configure Multiple Rapid Spanning Tree Protocol
To configure MRSTP, click MRSTP in the Advanced Application > Spanning Tree Protocol
screen. See Section 13.1 on page 121 for more information on MRSTP.

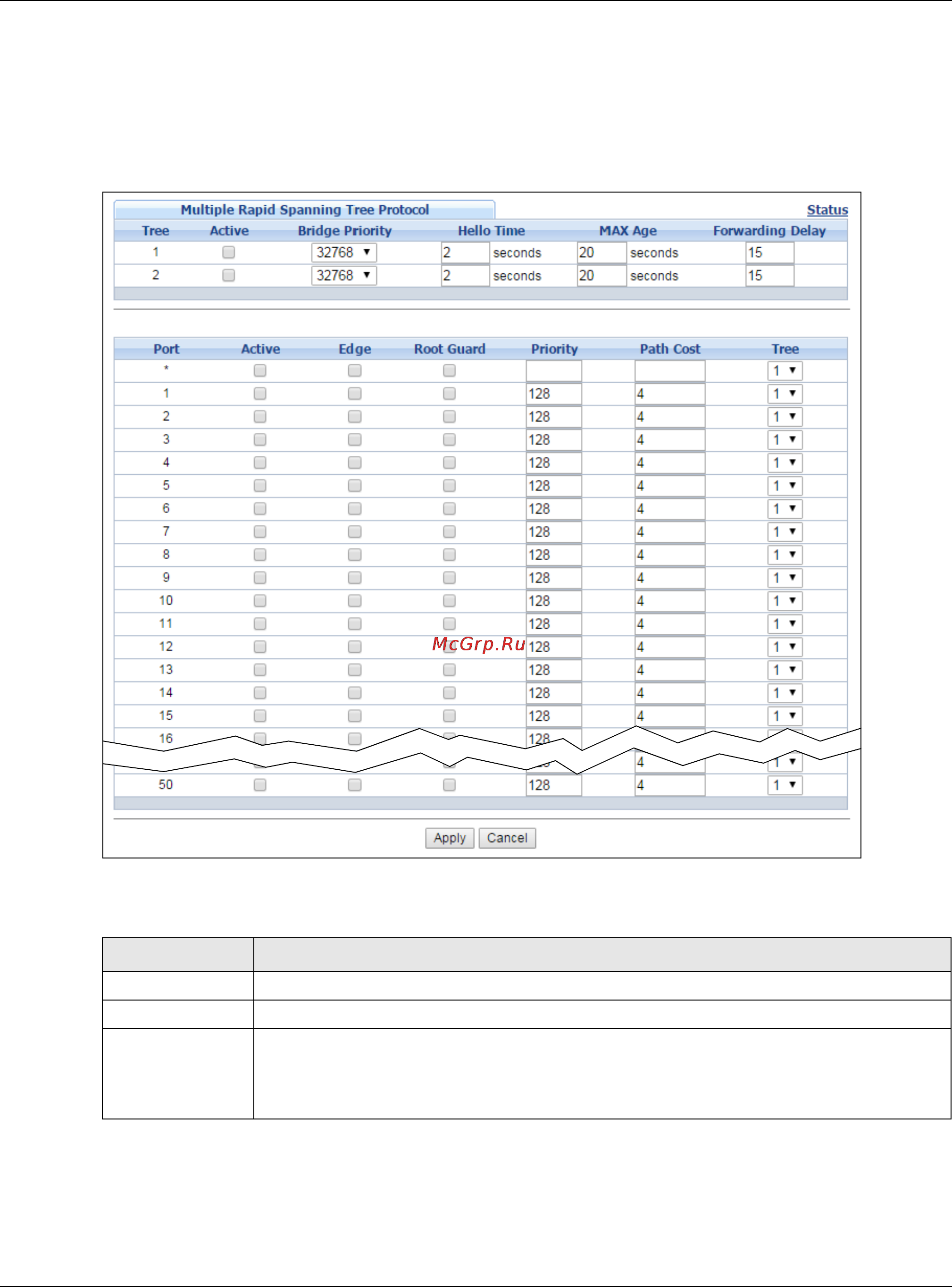

Figure 97 Advanced Application > Spanning Tree Protocol > MRSTP
The following table describes the labels in this screen.
Table 51 Advanced Application > Spanning Tree Protocol > MRSTP
LABEL DESCRIPTION
Status Click Status to display the MRSTP Status screen (see Figure 98 on page 131).
Tree This is a read only index number of the STP trees.
Active Select this check box to activate an STP tree. Clear this checkbox to disable an STP tree.
Note: You must also activate Multiple Rapid Spanning Tree in the Advanced Application
> Spanning Tree Protocol > Configuration screen to enable MRSTP on the Switch.
