Chapter 13 Spanning Tree Protocol
GS2210 Series User’s Guide
137
13.9 Multiple Spanning Tree Protocol Status
Click Advanced Application > Spanning Tree Protocol in the navigation panel to display the
status screen as shown next. See Multiple STP on page 123 for more information on MSTP.
Note: This screen is only available after you activate MSTP on the Switch.

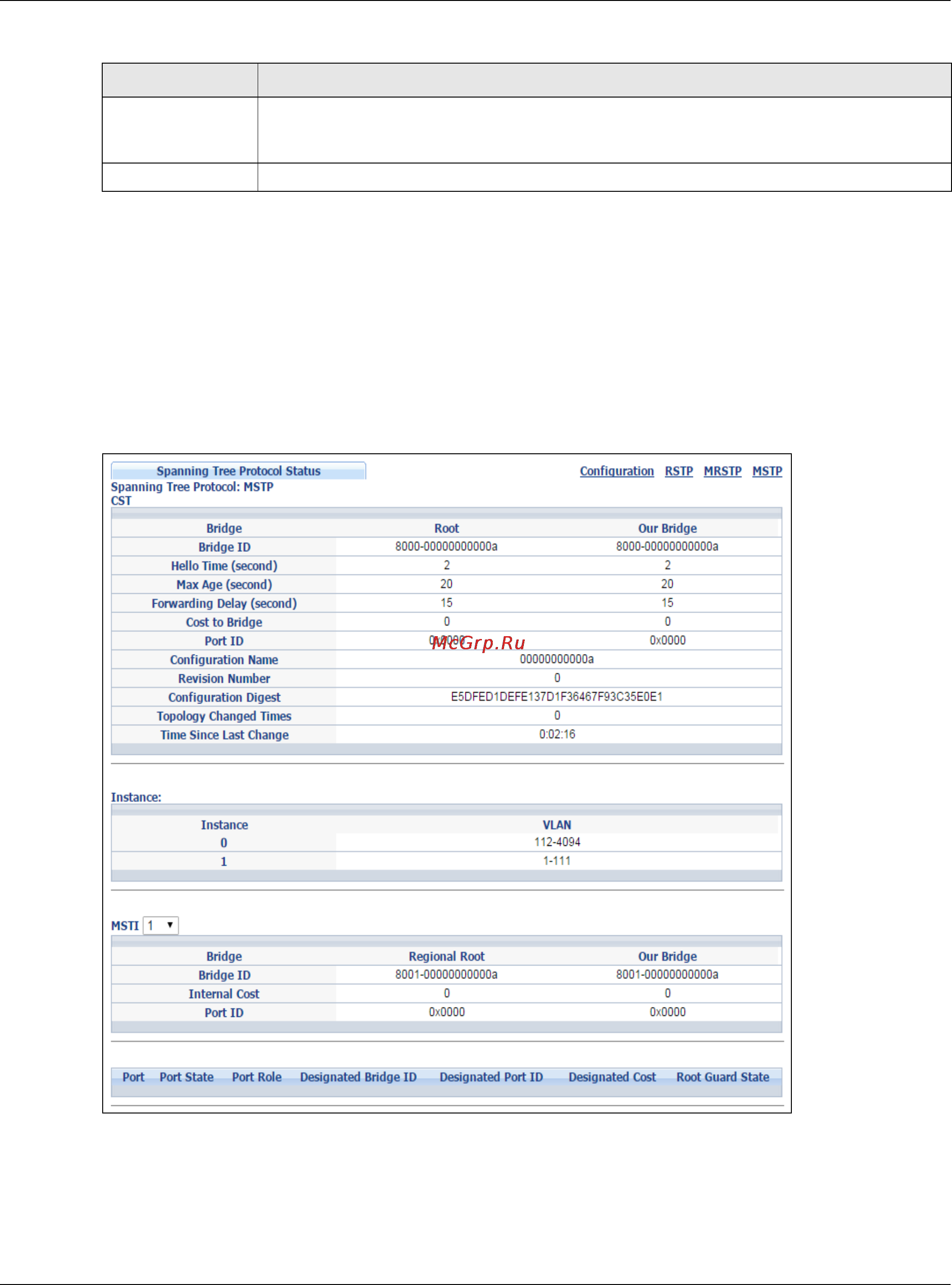

Figure 101 Advanced Application > Spanning Tree Protocol > Status: MSTP
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
these changes if it is turned off or loses power, so use the Save link on the top navigation
panel to save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Table 54 Advanced Application > Spanning Tree Protocol > MSTP > Port (continued)
LABEL DESCRIPTION
