Zyxel GS2210-48HP [385/444] Diagnostic
![Zyxel GS2210-48HP [385/444] Diagnostic](/views2/1168825/page385/bg181.png)
GS2210 Series User’s Guide
385
CHAPTER 44
Diagnostic
44.1 Overview
This chapter explains the Diagnostic screen. You can use this screen to help you identify problems.
44.2 Diagnostic
Click Management > Diagnostic in the navigation panel to open this screen. Use this screen to
ping IP addresses, run a traceroute, perform port tests or show the Switch’s location between
devices.

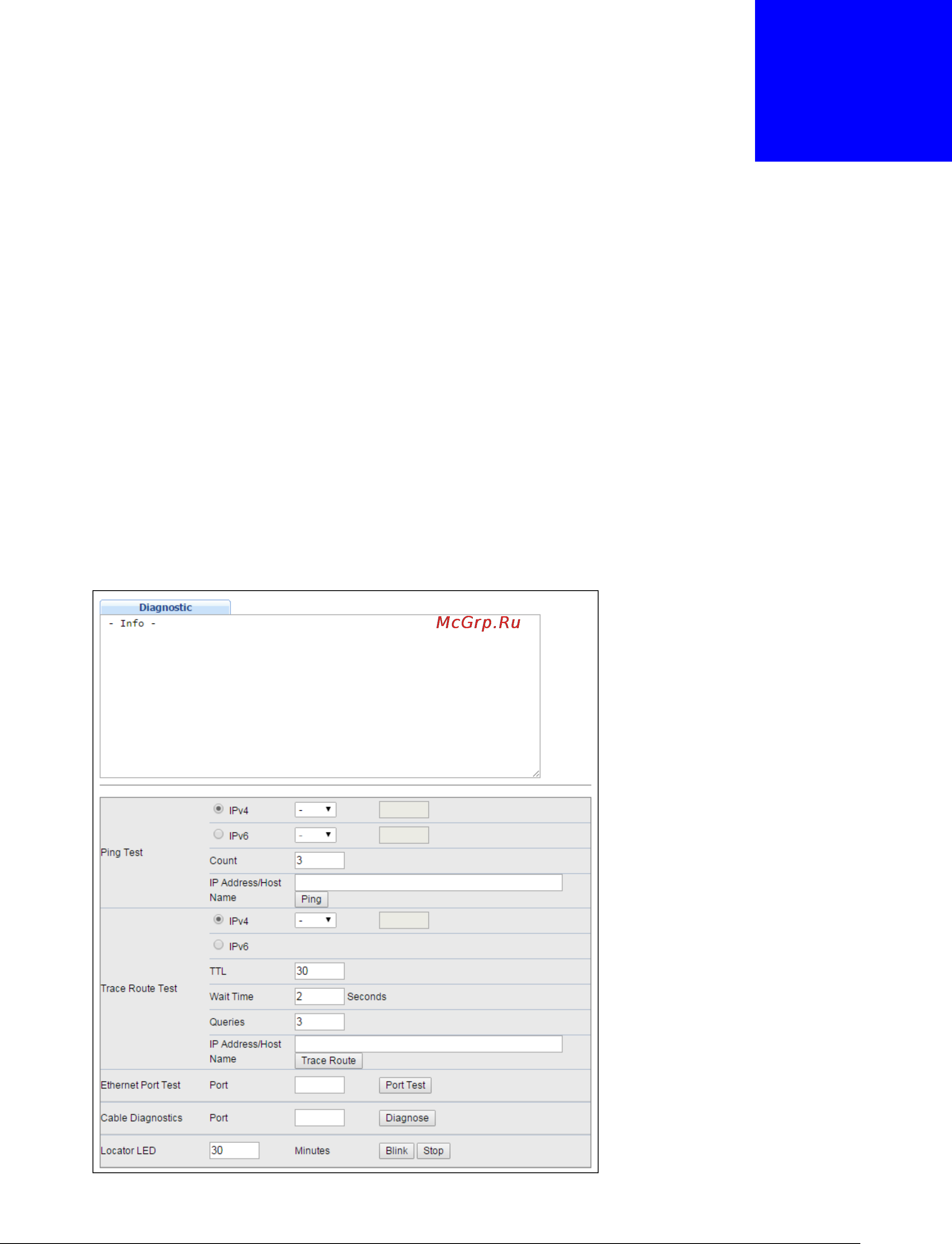

Figure 274 Management > Diagnostic
