GS2210 Series User’s Guide
168
CHAPTER 20
Time Range
20.1 Time Range Overview
You can set up one-time and recurring schedules for time-oriented features, such as PoE and
classifier. The UAG supports one-time and recurring schedules. One-time schedules are effective
only once, while recurring schedules usually repeat. Both types of schedules are based on the
current date and time in the Switch.
20.1.1 What You Can Do
Use the Time Range screen (Section 20.2 on page 168) to view or define a schedule on the
Switch.
20.2 Configuring Time Range
Click Advanced Application > Time Range in the navigation panel to display the screen as
shown.

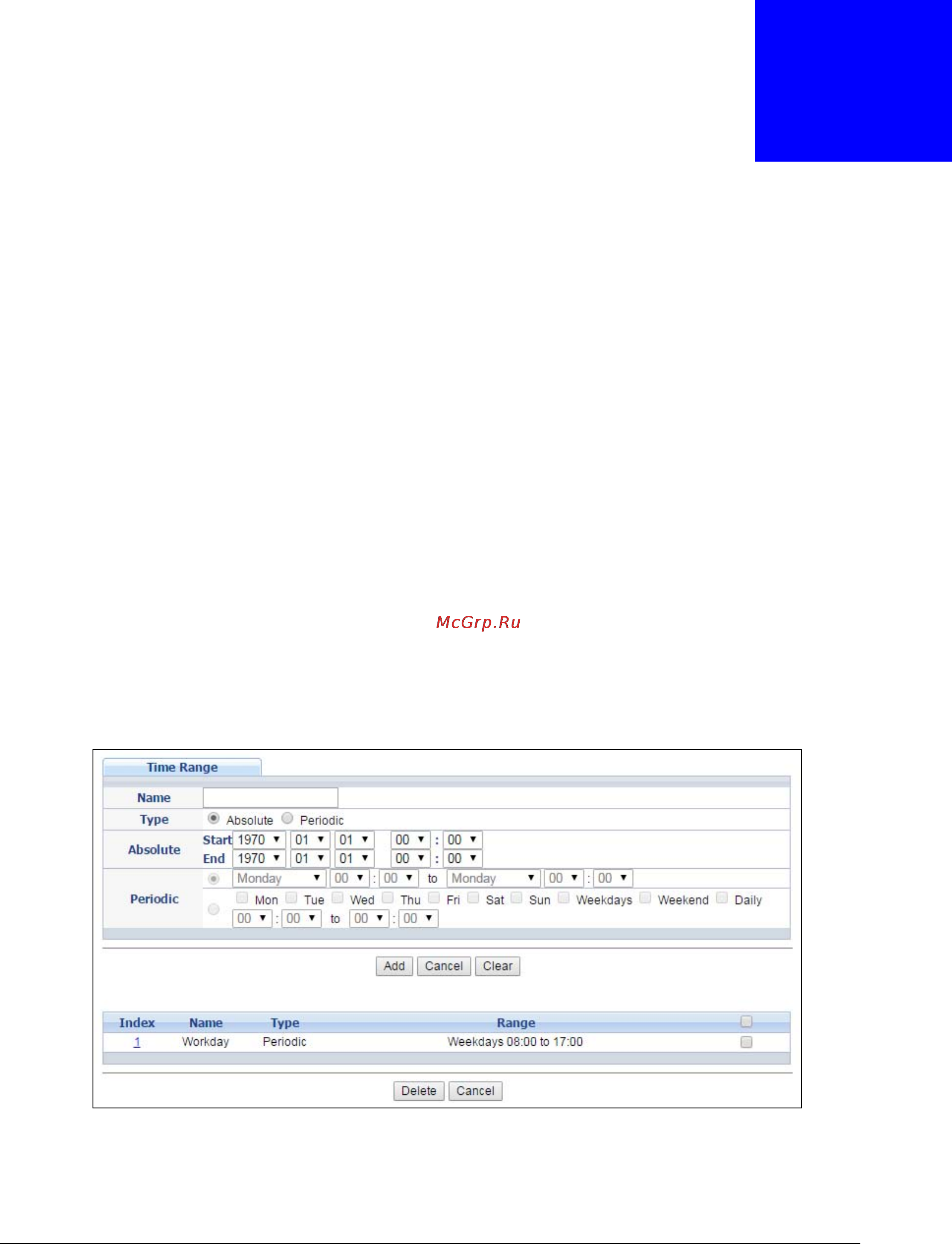

Figure 122 Advanced Application > Time Range
