Chapter 4 The Web Configurator
GS2210 Series User’s Guide
39
4.3.1 Change Your Password
After you log in for the first time, it is recommended you change the default administrator
password. Click Management > Access Control > Logins to display the next screen.

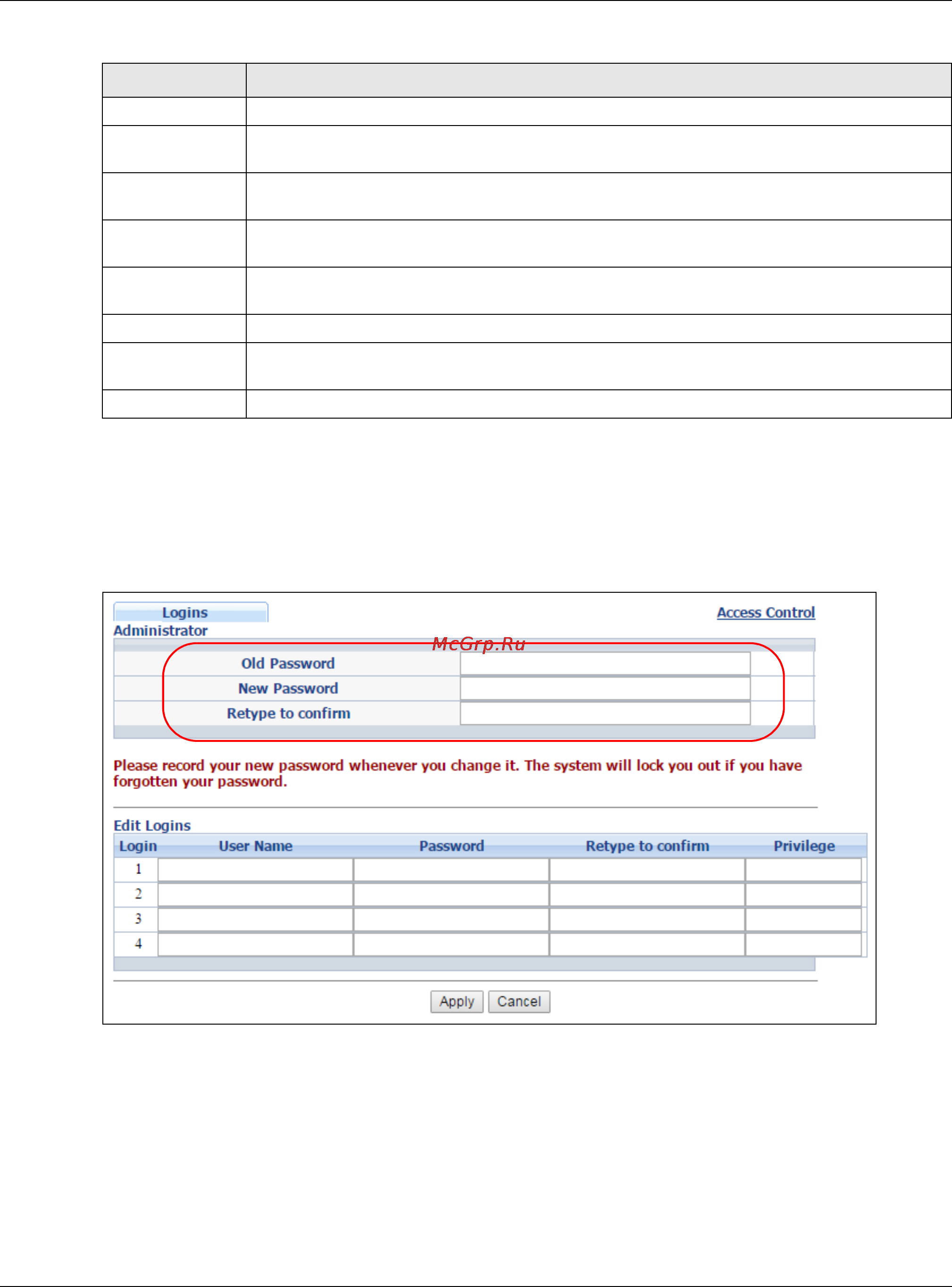

Figure 26 Change Administrator Login Password
4.4 Saving Your Configuration
When you are done modifying the settings in a screen, click Apply to save your changes back to
the run-time memory. Settings in the run-time memory are lost when the Switch’s power is turned
off.
Syslog Setup This link takes you to a screen where you can setup system logs and a system log server.
Cluster
Management
This link takes you to screens where you can configure clustering management and view its
status.
MAC Table This link takes you to a screen where you can view the MAC addresses (and types) of
devices attached to what ports and VLAN IDs.
ARP Table This link takes you to a screen where you can view the MAC addresses – IP address
resolution table.
Path MTU Table This link takes you to a screen where you can view the path MTU aging time, index,
destination address, MTU, and expire settings.
Configure Clone This link takes you to a screen where you can copy attributes of one port to other ports.
IPv6 Neighbor
Table
This link takes you to a screen where you can view the IPv6 neighbor table which includes
index, interface, neighbor address, MAC address, status and type.
Port Status This link takes you to a screen where you can view the port statistics.
Table 6 Navigation Panel Links (continued)
LINK DESCRIPTION
