Chapter 33 Link Layer Discovery Protocol (LLDP)
GS2210 Series User’s Guide
306

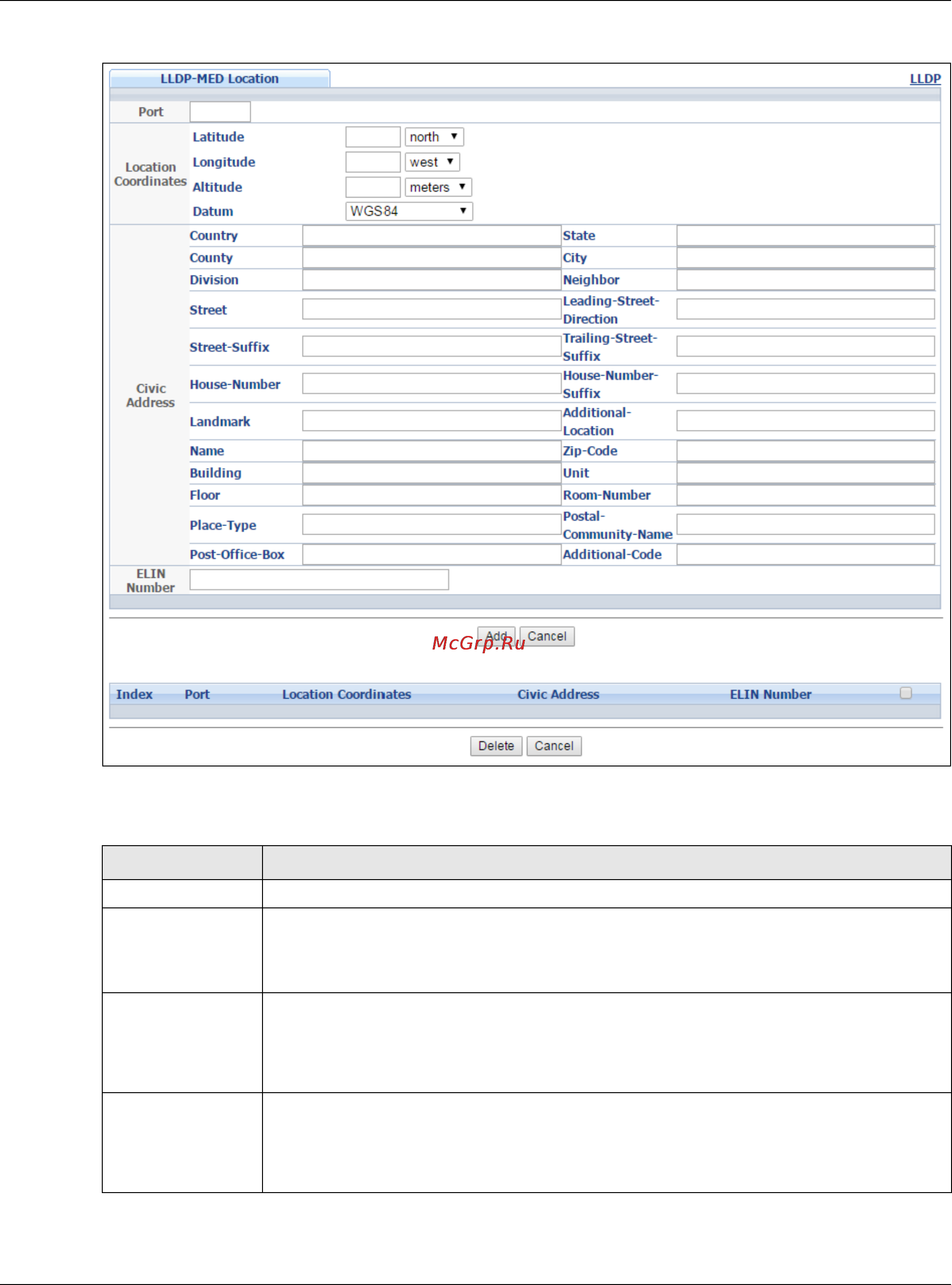

Figure 213 Advanced Application > LLDP > LLDP-MED Location
The following table describes the labels in this screen.
Table 147 Advanced Application > LLDP > LLDP-MED Location
LABEL DESCRIPTION
Port Enter the port number you want to set up the location within the LLDP-MED network.
Location
Coordinates
The LLDP-MED uses geographical coordinates and Civic Address to set the location
information of the remote device. Geographical based coordinates includes latitude,
longitude, altitude and datum. Civic Address includes Country, State, County, City, Street
and other related information.
Latitude Enter the latitude information. The value should be from 0º to 90º. The negative value
represents the South.
•north
•south
Longitude Enter the longitude information. The value should be from 0º to 180º. The negative
value represents the West.
•west
•east
