Chapter 24 Multicast
GS2210 Series User’s Guide
205

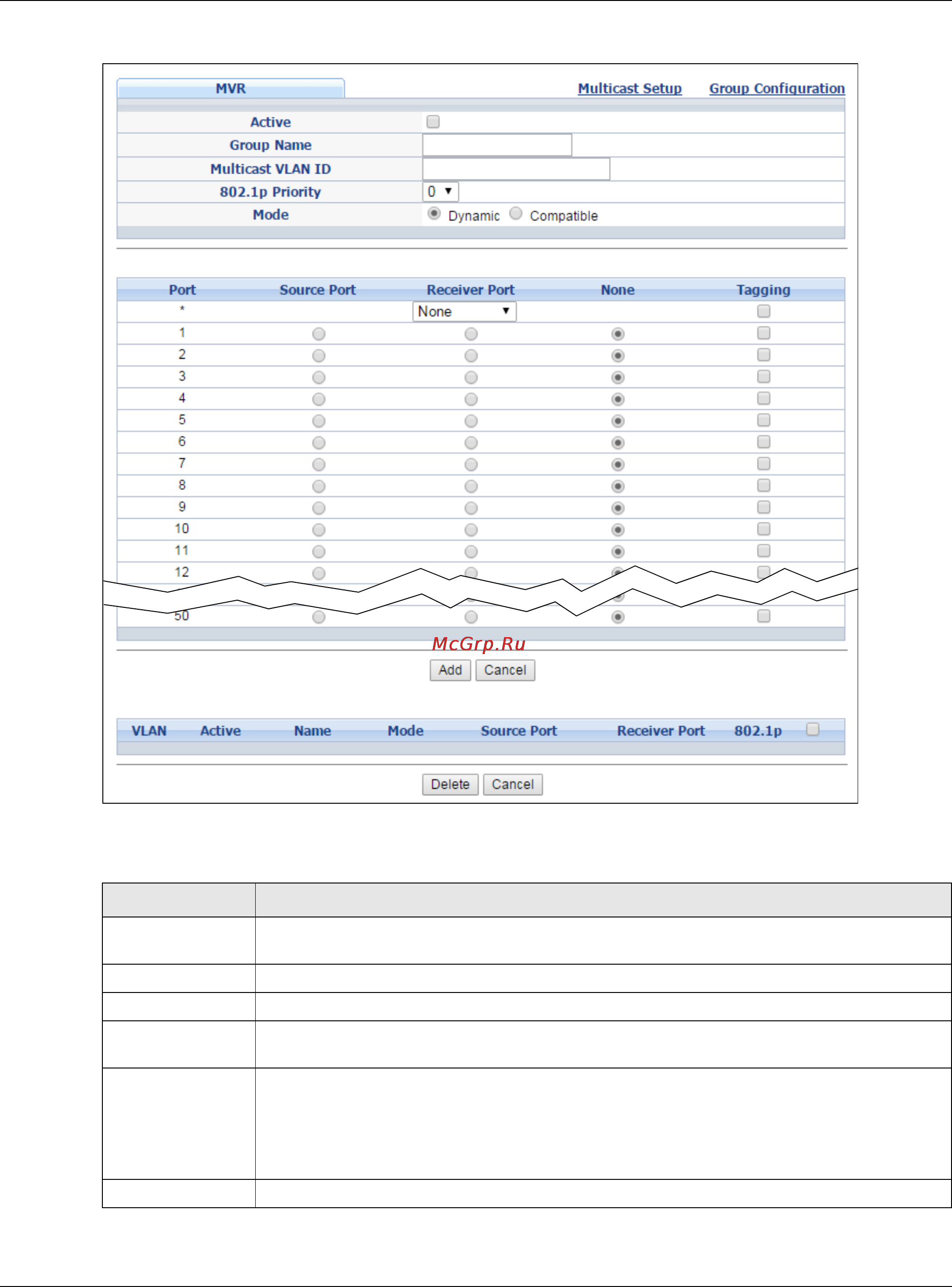

Figure 144 Advanced Application > Multicast > MVR
The following table describes the related labels in this screen.
Table 89 Advanced Application > Multicast > MVR
LABEL DESCRIPTION
Active Select this check box to enable MVR to allow one single multicast VLAN to be shared
among different subscriber VLANs on the network.
Group Name Enter a descriptive name (up to 32 printable ASCII characters) for identification purposes.
Multicast VLAN ID Enter the VLAN ID (1 to 4094) of the multicast VLAN.
802.1p Priority Select a priority level (0-7) with which the Switch replaces the priority in outgoing IGMP
or MLD control packets (belonging to this multicast VLAN).
Mode Specify the MVR mode on the Switch. Choices are Dynamic and Compatible.
Select Dynamic to send IGMP reports or MLD messages to all MVR source ports in the
multicast VLAN.
Select Compatible to set the Switch not to send IGMP reports or MLD messages.
Port This field displays the port number on the Switch.
