Zyxel GS2210-48HP [336/444] Chapter 39 differentiated services
![Zyxel GS2210-48HP [336/444] Chapter 39 differentiated services](/views2/1168825/page336/bg150.png)
Chapter 39 Differentiated Services
GS2210 Series User’s Guide
336
The following table shows the default DSCP-to-IEEE802.1p mapping.
39.3.1 Configuring DSCP Settings
To change the DSCP-IEEE 802.1p mapping click the DSCP Setting link in the DiffServ screen to
display the screen as shown next.

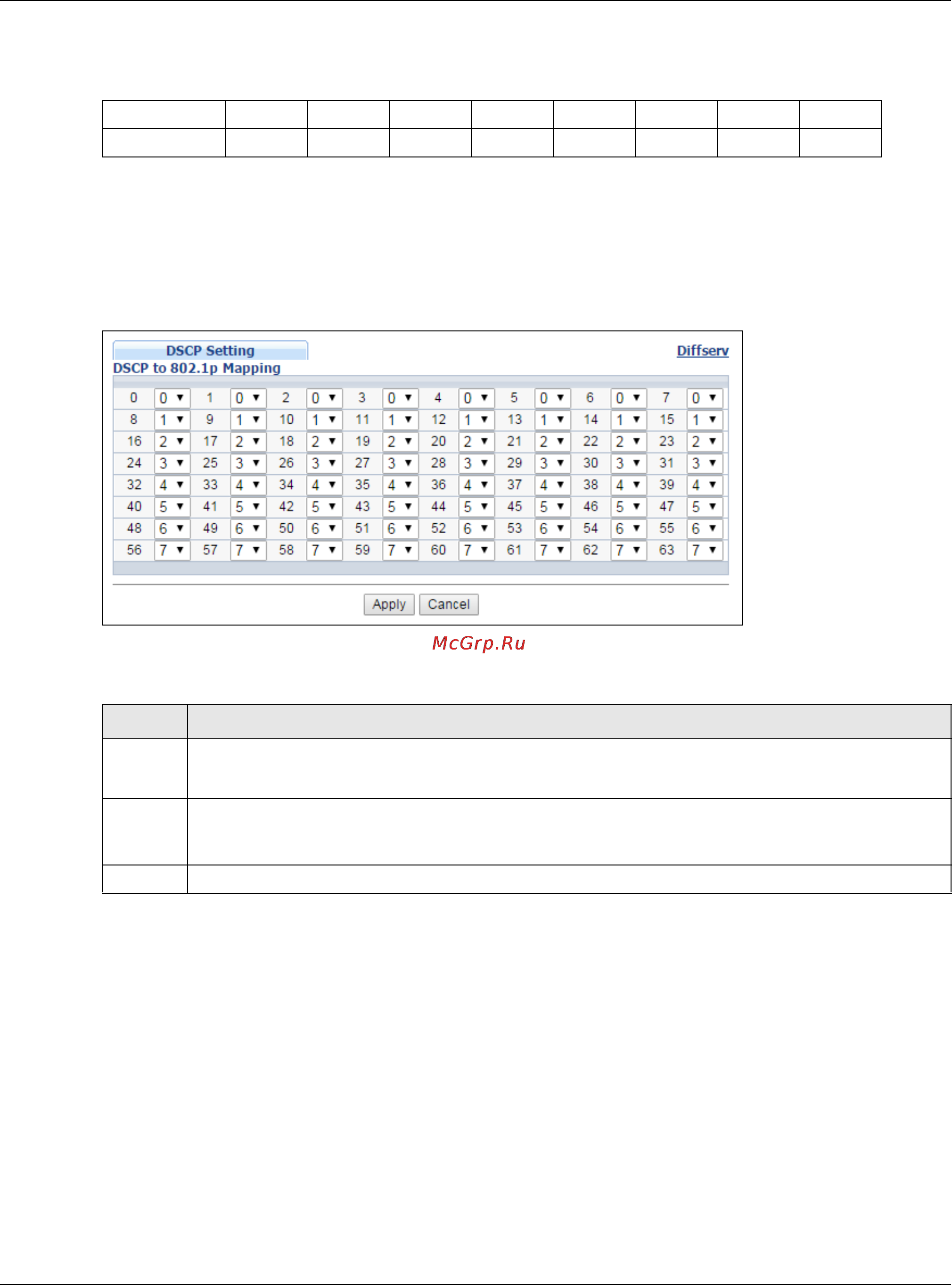

Figure 233 IP Application > DiffServ > DSCP Setting
The following table describes the labels in this screen.
Table 162 Default DSCP-IEEE 802.1p Mapping
DSCP VALUE 0 – 7 8 – 15 16 – 23 24 – 31 32 – 39 40 – 47 48 – 55 56 – 63
IEEE 802.1p 01234567
Table 163 IP Application > DiffServ > DSCP Setting
LABEL DESCRIPTION
0 … 63 This is the DSCP classification identification number.
To set the IEEE 802.1p priority mapping, select the priority level from the drop-down list box.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to save
your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
