Chapter 35 BPDU Guard
GS2210 Series User’s Guide
316

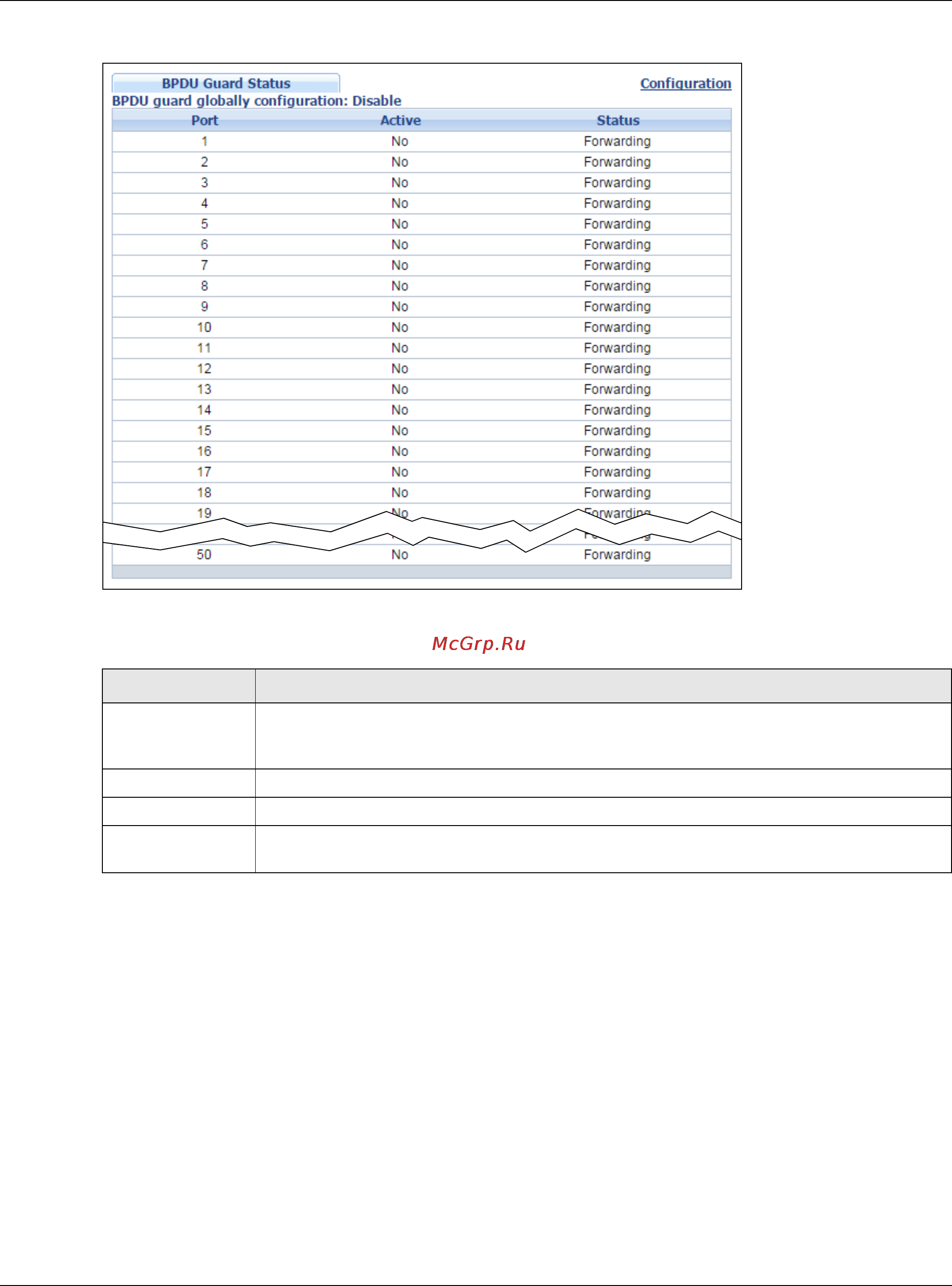

Figure 218 Advanced Application > BPDU Guard Staus
The following table describes the labels in this screen.
35.3 BPDU Guard Configuration
Use this screen to turn on the BPDU guard feature on the Switch and port(s).
In the BPDU Guard Status screen click Configuration to display the configuration screen as
shown.
Table 152 Advanced Application > BPDU Guard Staus
LABEL DESCRIPTION
BPDU guard
globally
configuration
This field displays whether BPDU guard is activated on the Switch.
Port This is the number of the port on the Switch.
Active This shows whether BPDU guard is activated on the port.
Status This shows whether the port is shut down (Err-disable) or able to transmit packets
(Forwarding).
