Chapter 36 OAM
GS2210 Series User’s Guide
324
36.4 OAM Remote Loopback
Use this screen to perform a remote-loopback test. In the OAM Status screen click Remote
Loopback to display the screen as shown.

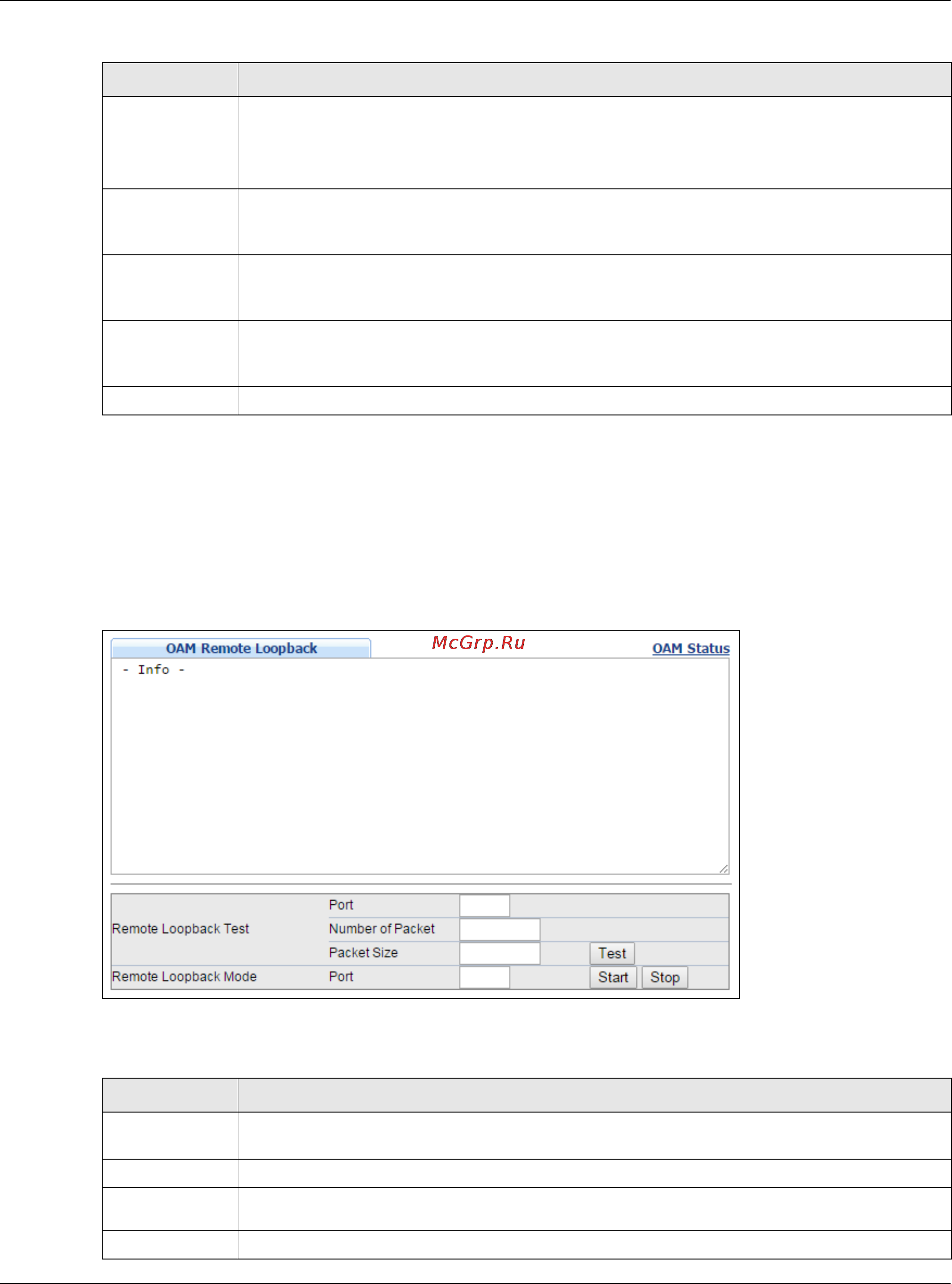

Figure 223 Advanced Application > OAM > OAM Remote Loopback
The following table describes the labels in this screen.
Mode Specify the OAM mode on the port.
Select Active to allow the port to issue and respond to Ethernet OAM commands.
Select Passive to allow the port to respond to Ethernet OAM commands.
Remote
Loopback
Supported
Select this check box to enable the remote loopback feature on the port. Otherwise, clear
the check box to disable it.
Remote
Loopback
Ignore-Rx
Select this check box to set the Switch to process loopback commands received on the port.
Otherwise, clear the check box to have the Switch ignore loopback commands received on
the port.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Table 156 Advanced Application > OAM > OAM Configuration (continued)
LABEL DESCRIPTION
Table 157 Advanced Application > OAM > OAM Remote Loopback
LABEL DESCRIPTION
Remote
Loopback Test
Port Enter the number of the port from which the Switch performs a remote-loopback test.
Number of
Packet
Define the allowable packet number of the loopback test frames.
Packet Size Define the allowable packet size of the loopback test frames.
