Chapter 33 Link Layer Discovery Protocol (LLDP)
GS2210 Series User’s Guide
300
33.6.1 LLDP Configuration Basic TLV Setting
Use this screen to configure Basic TLV settings. Click Advanced Application > LLDP > LLDP
Configuration (Click Here) > Basic TLV Setting to display the screen as shown next.

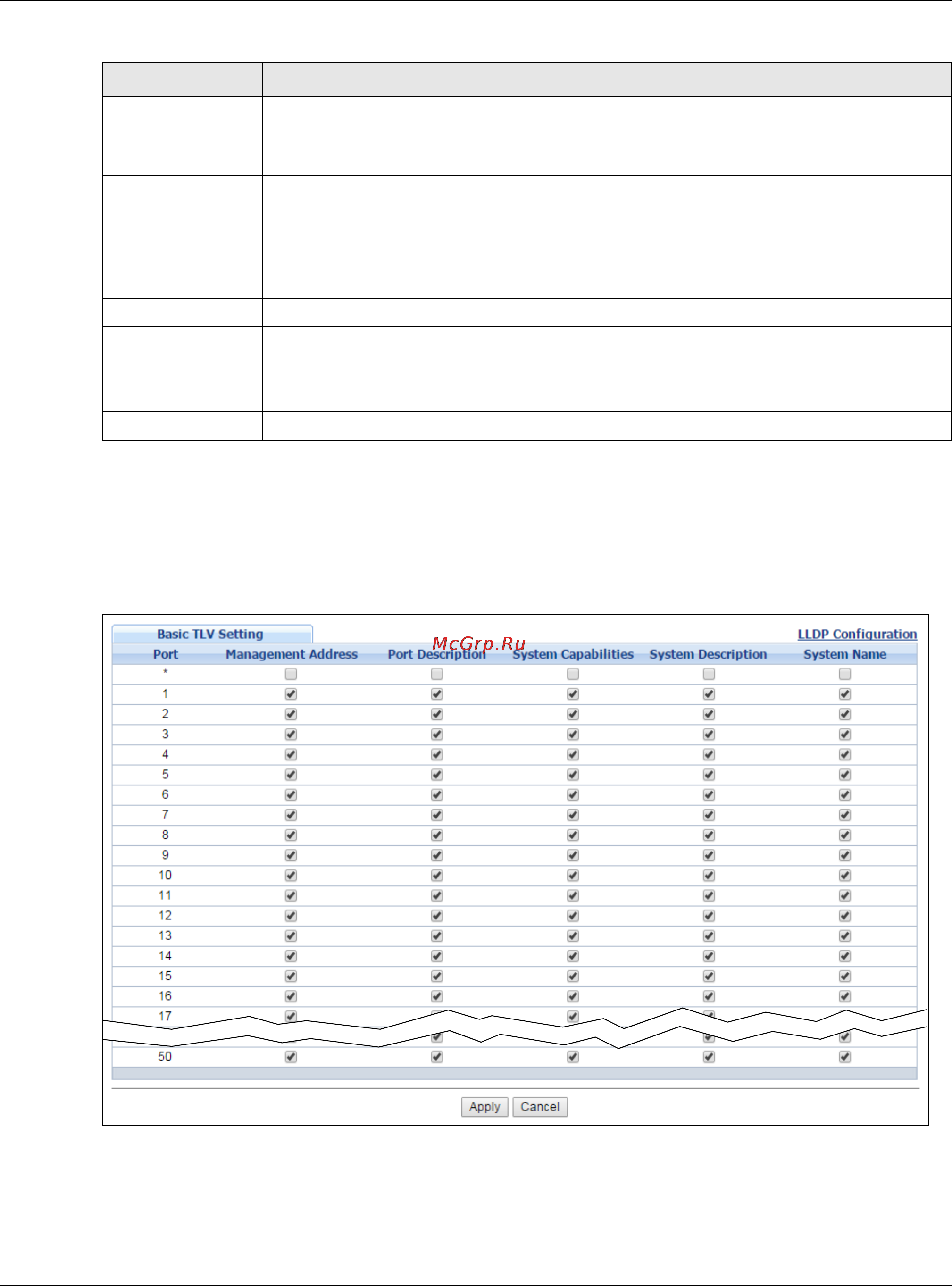

Figure 209 Advanced Application > LLDP > LLDP Configuration> Basic TLV Setting
* Use this row to make the setting the same for all ports. Use this row first and then make
adjustments to each port if necessary.
Changes in this row are copied to all the ports as soon as you make them.
Admin Status Select whether LLDP transmission and/or reception is allowed on this port.
• Disable - not allowed
• Tx-Only - transmit only
• Rx-Only - receive only
• Tx-Rx - transmit and receive
Notification Select whether LLDP notification is enabled on this port.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the non-volatile memory when you are done
configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Table 142 Advanced Application > LLDP > LLDP Configuration
LABEL DESCRIPTION
