Chapter 13 Spanning Tree Protocol
GS2210 Series User’s Guide
133

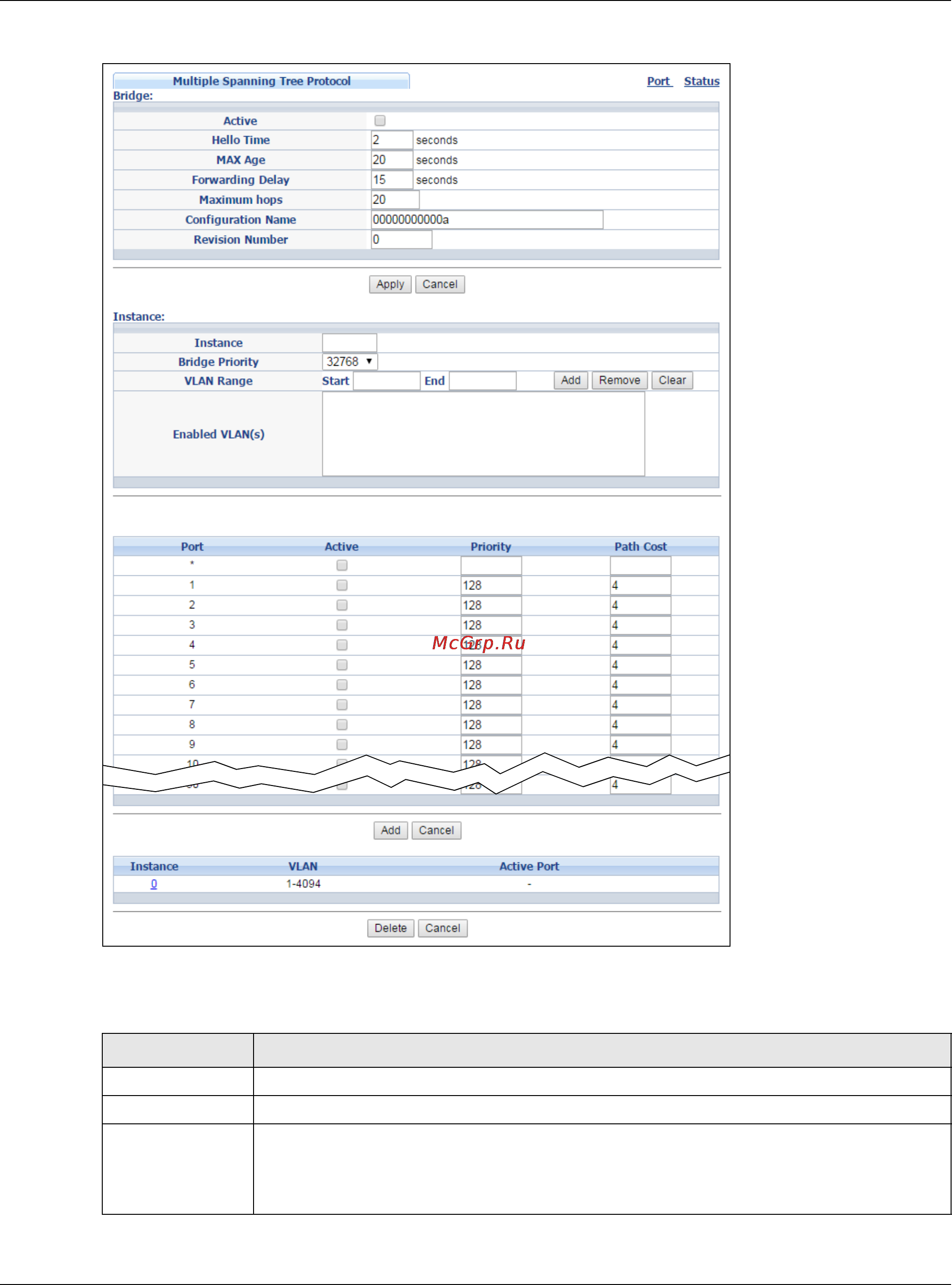

Figure 99 Advanced Application > Spanning Tree Protocol > MSTP
The following table describes the labels in this screen.
Table 53 Advanced Application > Spanning Tree Protocol > MSTP
LABEL DESCRIPTION
Port Click Port to display the MSTP Port screen (see Figure 100 on page 136).
Status Click Status to display the MSTP Status screen (see Figure 101 on page 137).
Active Select this to activate MSTP on the Switch. Clear this to disable MSTP on the Switch.
Note: You must also activate Multiple Spanning Tree in the Advanced Application >
Spanning Tree Protocol > Configuration screen to enable MSTP on the Switch.
