Chapter 18 Port Authentication
GS2210 Series User’s Guide
161

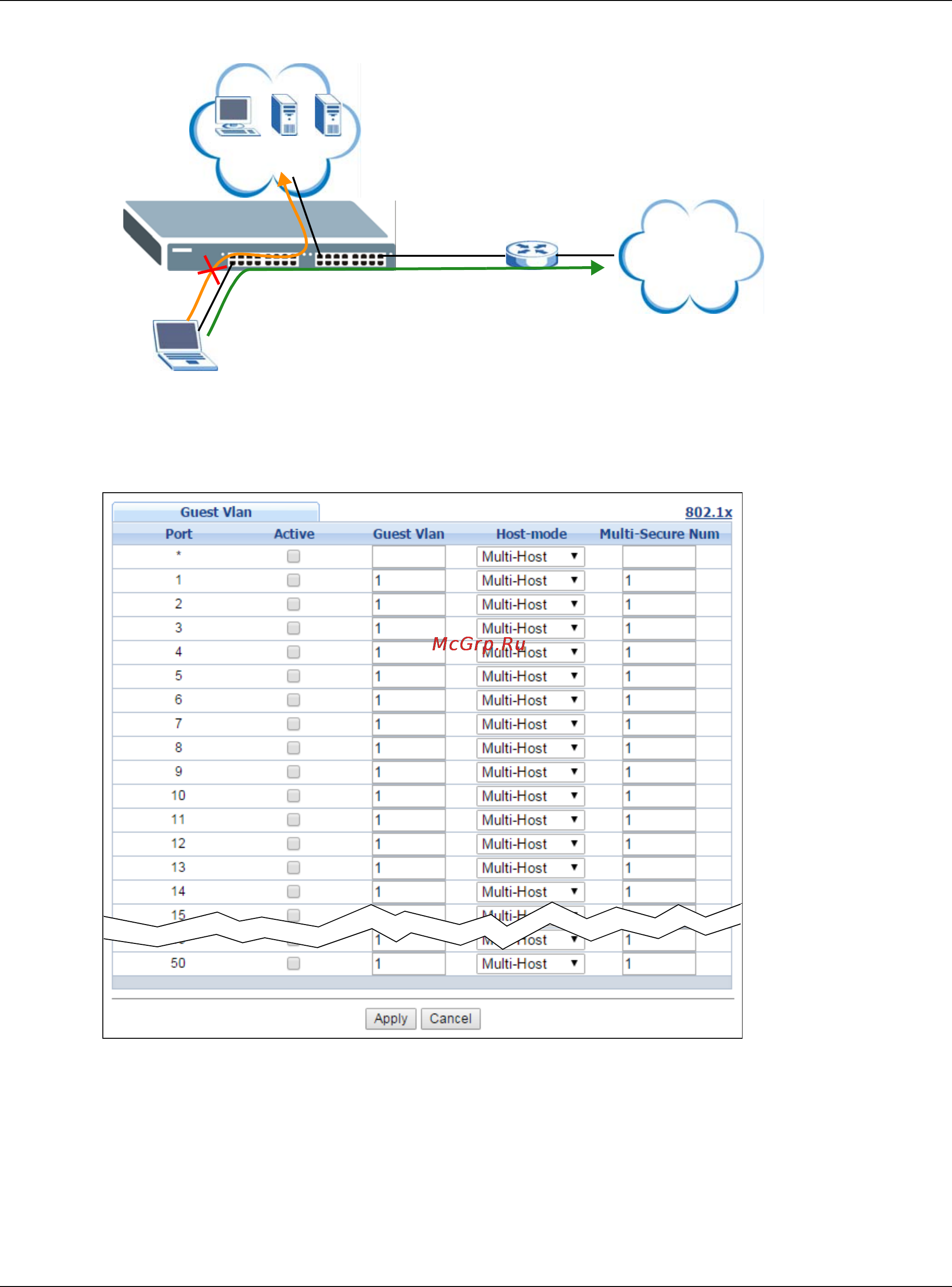

Figure 118 Guest VLAN Example
Use this screen to enable and assign a guest VLAN to a port. In the Port Authentication >
802.1x screen click Guest Vlan to display the configuration screen as shown.
Figure 119 Advanced Application > Port Authentication > 802.1x > Guest VLAN
Internet
2
VLAN 100
A
VLAN 102
