Chapter 8 Basic Setting
GS2210 Series User’s Guide
75

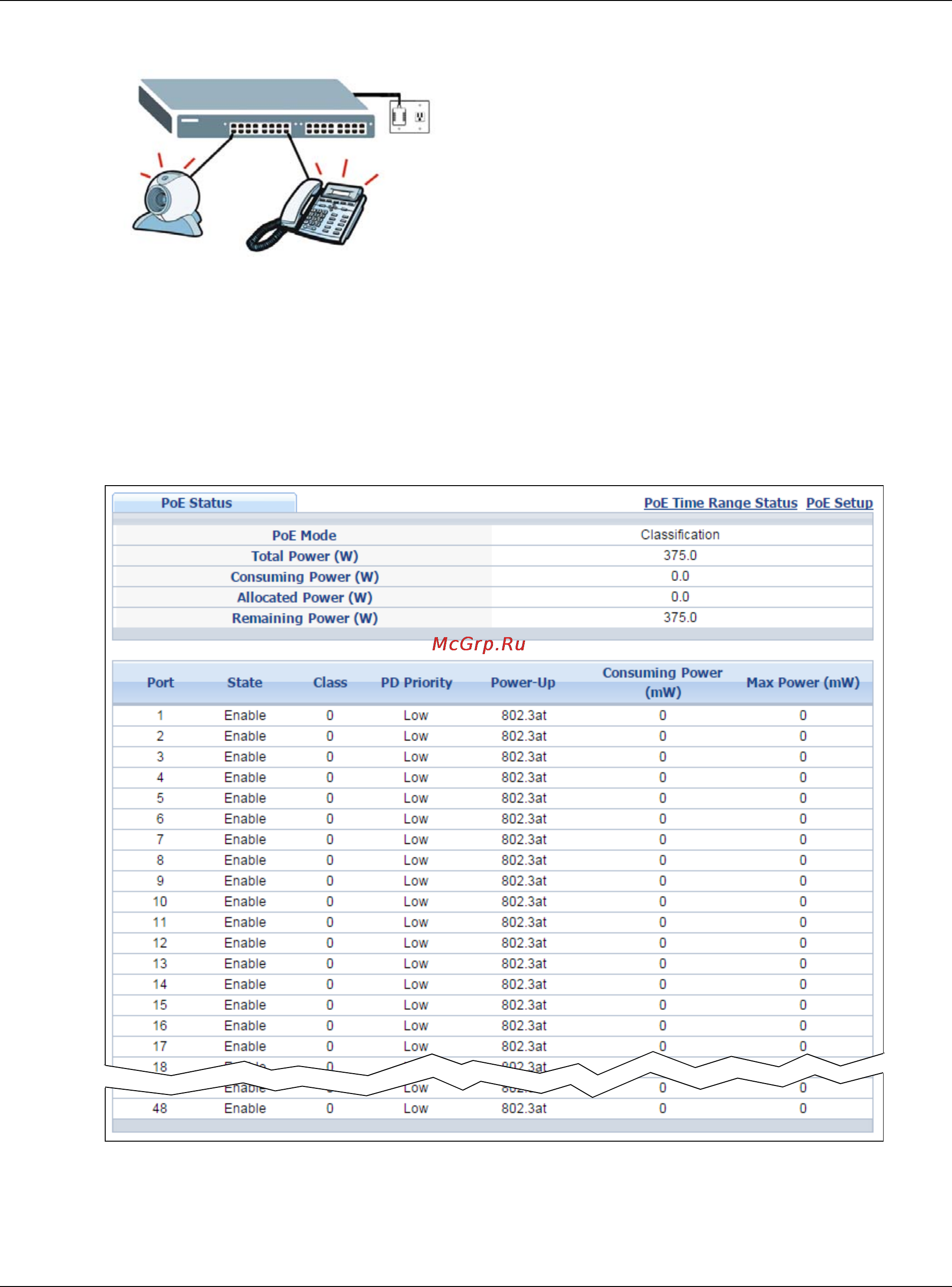

Figure 54 Powered Device Examples
You can also set priorities so that the Switch is able to reserve and allocate power to certain PDs.
Note: The POE (Power over Ethernet) devices that supply or receive power and their
connected Ethernet cables must all be completely indoors.
To view the current amount of power that PDs are receiving from the Switch, click Basic Setting >
PoE Setup.
Figure 55 Basic Setting > PoE Status
