Chapter 26 IP Source Guard
GS2210 Series User’s Guide
249

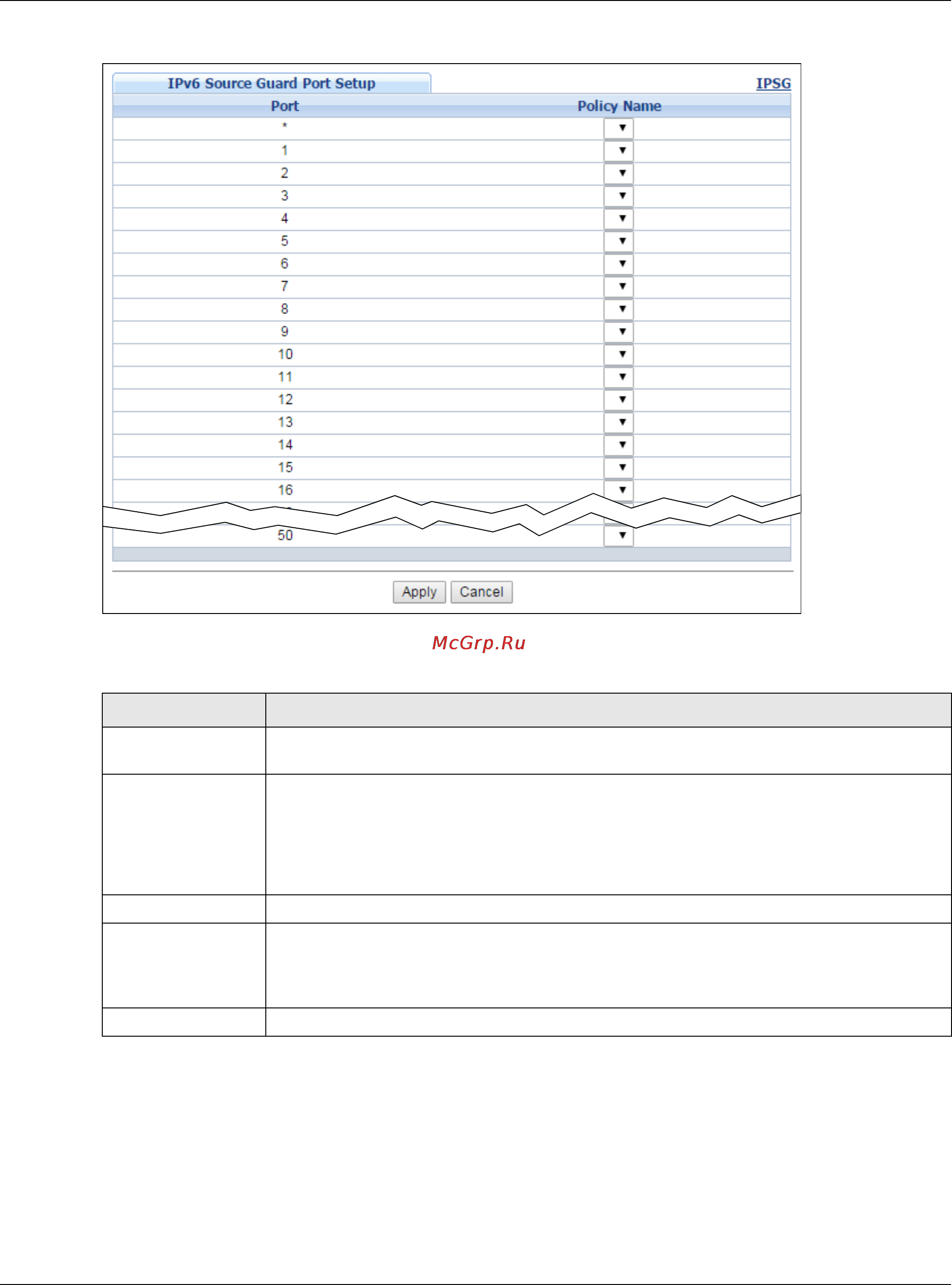

Figure 172 Advanced Application > IP Source Guard > IPv6 Source Guard Port Setup
The following table describes the labels in this screen.
26.16 IPv6 Snooping Policy Setup
Use this screen to dynamically create an IPv6 source guard binding table using a DHCPv6 snooping
policy. A DHCPv6 snooping policy lets the Switch sniff DHCPv6 packets sent from a DHCPv6 server
to a DHCPv6 client when it is assigning an IPv6 address. When a DHCPv6 client successfully gets a
Table 114 Advanced Application > IP Source Guard > IPv6 Source Guard Port Setup
LABEL DESCRIPTION
Port This field displays the port number. If you configure the * port, the settings are applied
to all of the ports.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all ports. Use this row
first to set the common settings and then make adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
Policy Name Select an IPv6 source guard policy that the Switch will apply to this port.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the non-volatile memory when you are done
configuring.
Cancel Click this to reset the values in this screen to their last-saved values.
