Chapter 17 Link Aggregation
GS2210 Series User’s Guide
150

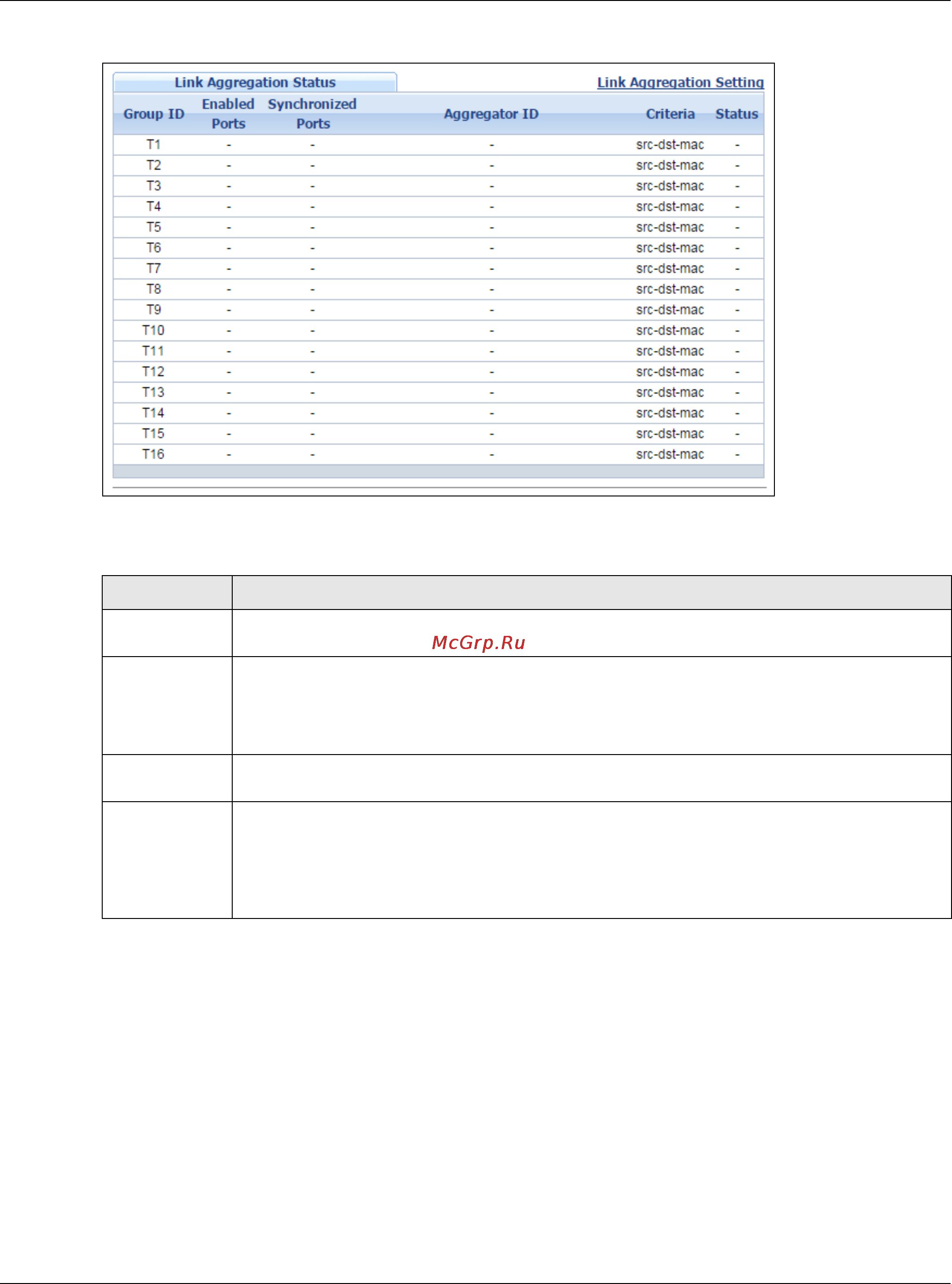

Figure 109 Advanced Application > Link Aggregation Status
The following table describes the labels in this screen.
Table 61 Advanced Application > Link Aggregation Status
LABEL DESCRIPTION
Group ID This field displays the group ID to identify a trunk group, that is, one logical link containing
multiple ports.
Enabled Ports These are the ports you have configured in the Link Aggregation screen to be in the trunk
group.
The port number(s) displays only when this trunk group is activated and there is a port
belonging to this group.
Synchronized
Ports
These are the ports that are currently transmitting data as one logical link in this trunk
group.
Aggregator ID Link Aggregator ID consists of the following: system priority, MAC address, key, port priority
and port number. Refer to Link Aggregation ID on page 149 for more information on this
field.
The ID displays only when there is a port belonging to this trunk group and LACP is also
enabled for this group.
