Chapter 43 Access Control
GS2210 Series User’s Guide
384
43.7.3.2 The Main Screen
After you accept the certificate and enter the login username and password, the Switch main screen
appears. The lock displayed in the bottom right of the browser status bar or next to the website
address denotes a secure connection.

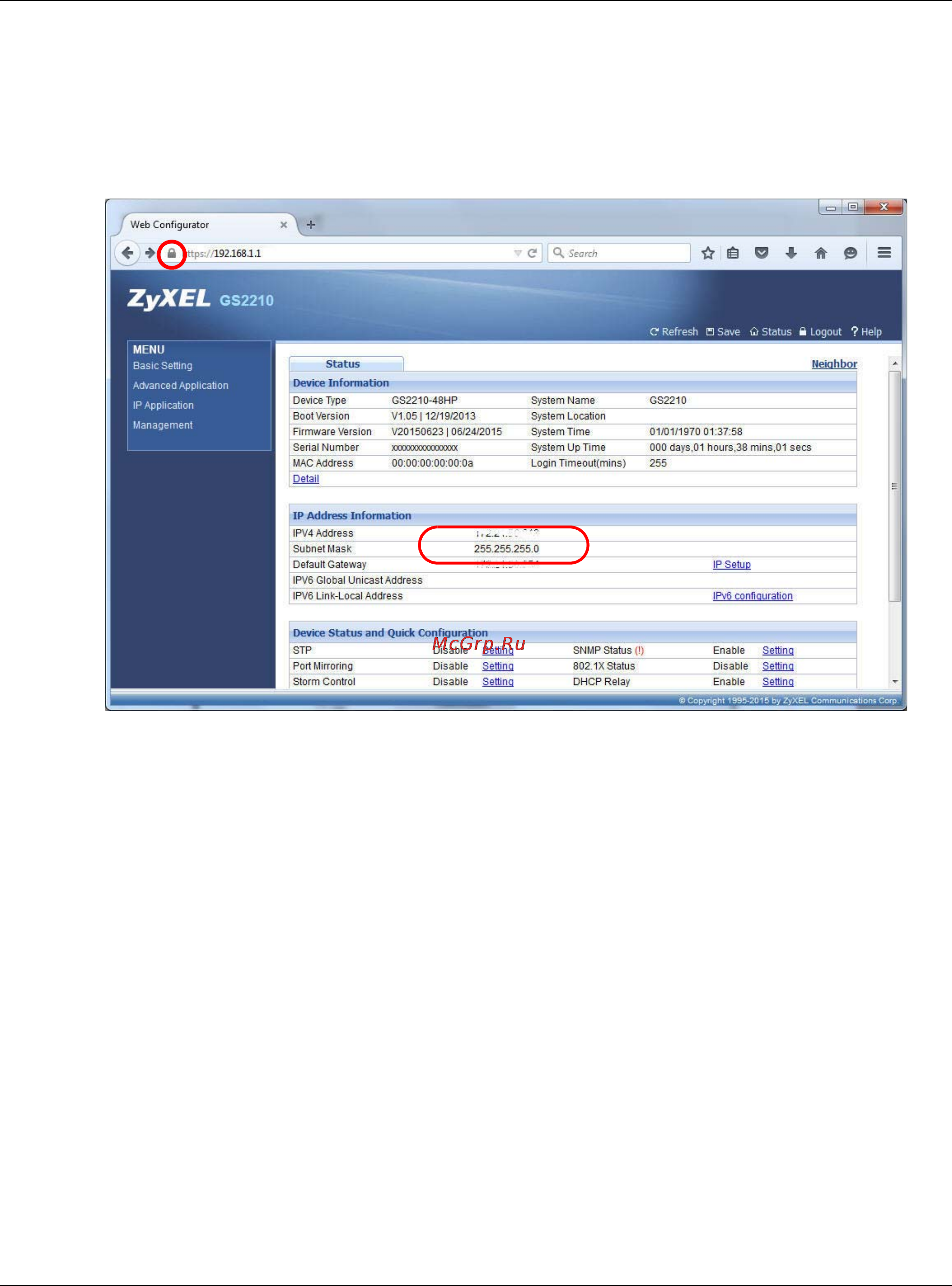

Figure 273 Example: Lock Denoting a Secure Connection
EXAMPLE
