Chapter 33 Link Layer Discovery Protocol (LLDP)
GS2210 Series User’s Guide
302

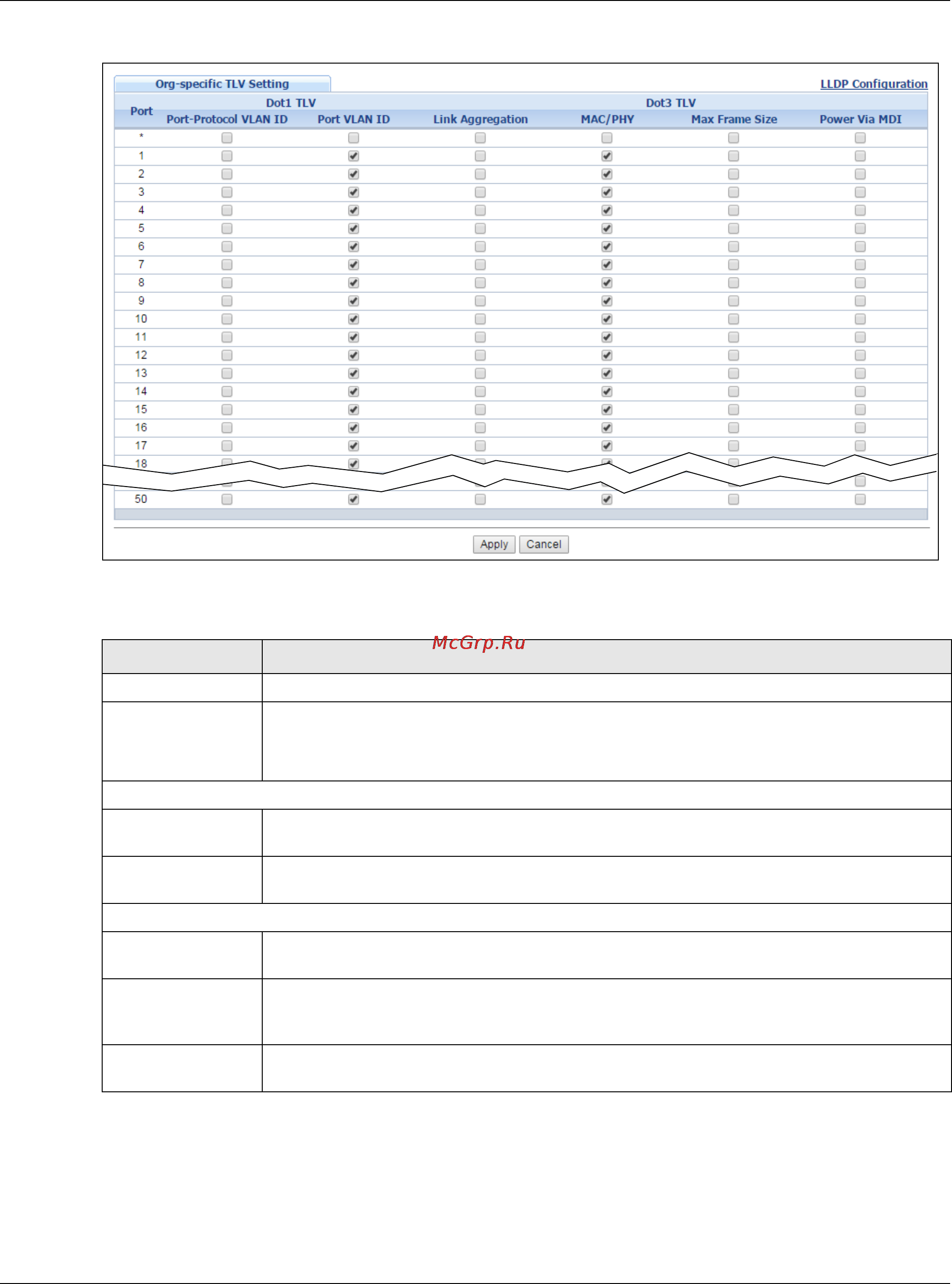

Figure 210 Advanced Application > LLDP > LLDP Configuration> Org-specific TLV Setting
The following table describes the labels in this screen.
Table 144 Advanced Application > LLDP > LLDP Configuration > Org-specific TLV Setting
LABEL DESCRIPTION
Port This displays the Switch’s port number.
* Use this row to make the setting the same for all ports. Use this row first and then make
adjustments to each port if necessary.
Changes in this row are copied to all the ports as soon as you make them.
Dot1 TLV
Port-Protocol
VLAN ID
Select the check box(es) to enable or disable the sending of IEEE 802.1 Port and Protocol
VLAN ID TLVs on the port(s).
Port VLAN ID Select the check box(es) to enable or disable the sending of IEEE 802.1 Port VLAN ID
TLVs on the port(s). All check boxes in this column are enabled by default.
Dot3 TLV
Link
Aggregation
Select the check box(es) to enable or disable the sending of IEEE 802.3 Link Aggregation
TLVs on the port(s).
MAC/PHY Select the check box(es) to enable or disable the sending of IEEE 802.3 MAC/PHY
Configuration/Status TLVs on the port(s). All check boxes in this column are enabled by
default.
Max Frame
Size
Select the check box(es) to enable or disable the sending of IEEE 802.3 Max Frame Size
TLVs on the port(s).
