Chapter 43 Access Control
GS2210 Series User’s Guide
382

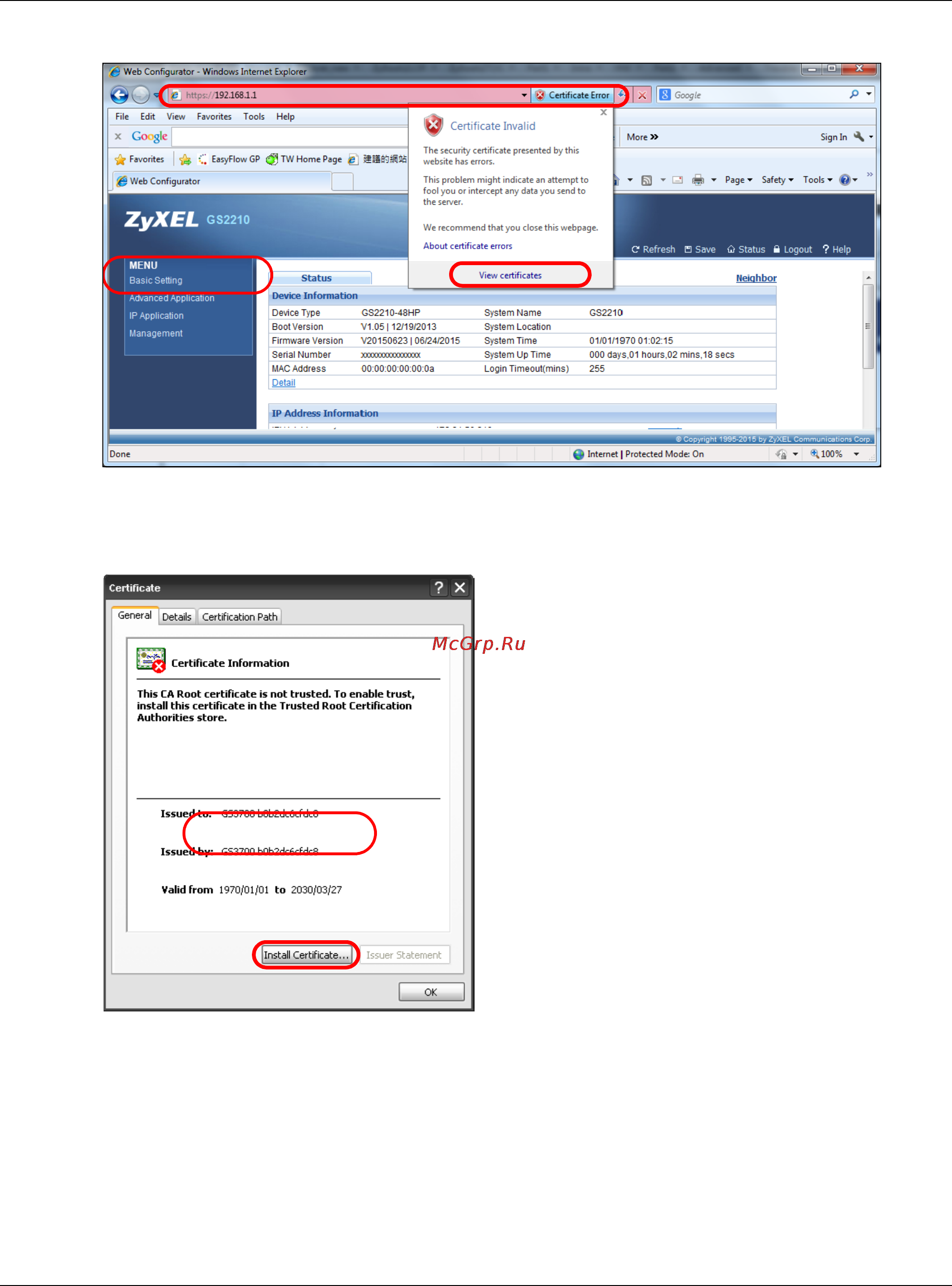

Figure 269 Certificate Error (Internet Explorer 7 or 8)
Click Install Certificate... and follow the on-screen instructions to install the certificate in your
browser.
Figure 270 Certificate (Internet Explorer 7 or 8)
Mozilla Firefox Warning Messages
When you attempt to access the Switch HTTPS server, a This Connection is Unstructed screen
may display. If that is the case, click I Understand the Risks and then the Add Exception...
button.
