Chapter 36 OAM
GS2210 Series User’s Guide
319

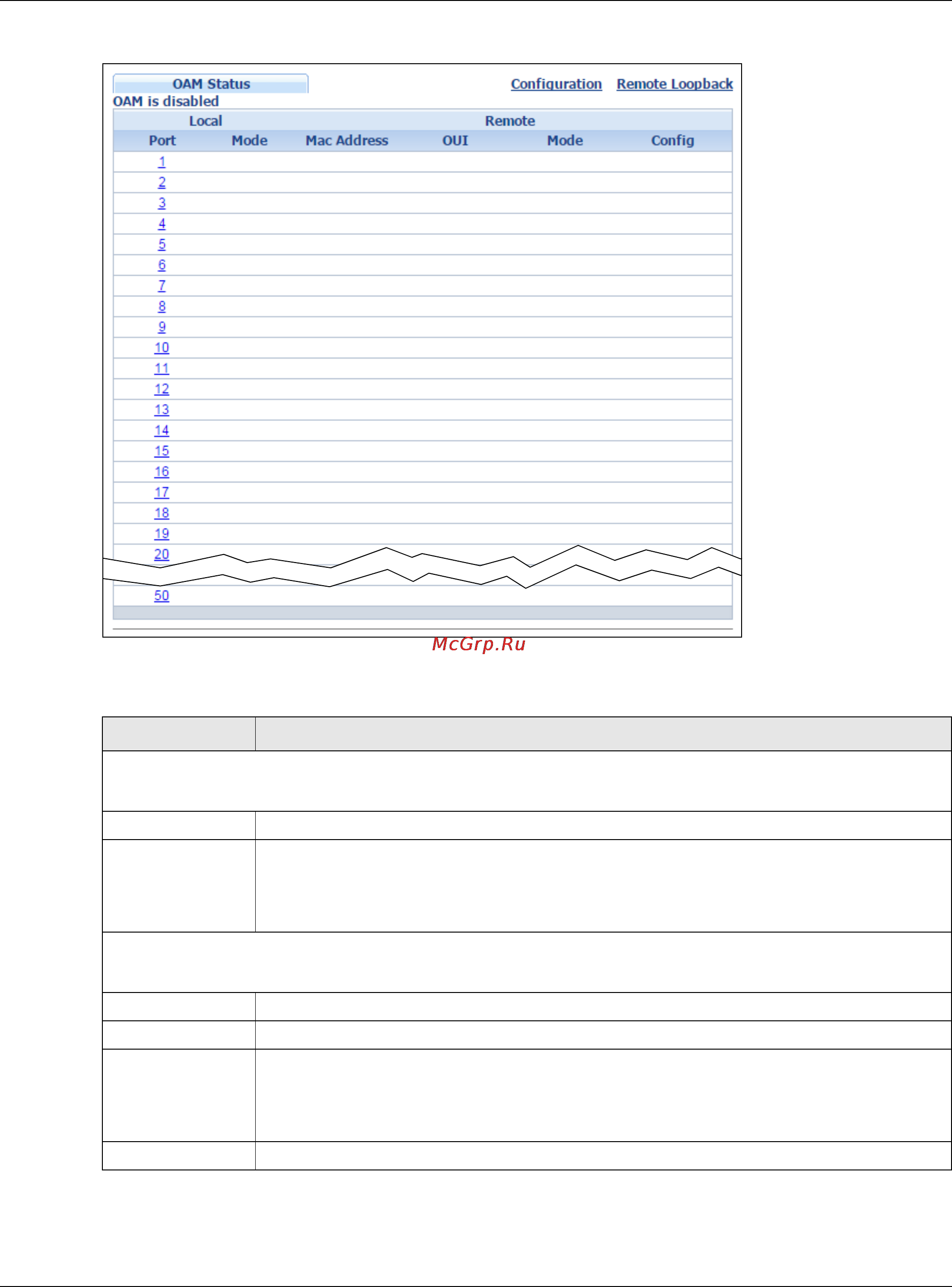

Figure 220 Advanced Application > OAM Staus
The following table describes the labels in this screen.
Table 154 Advanced Application > OAM Staus
LABEL DESCRIPTION
Local
This section displays information about the ports on the Switch.
Port This field displays the number of the port on the Switch.
Mode This field displays the operational state of the port when OAM is enabled on the port.
Active - Allows the port to issue and respond to Ethernet OAM commands.
Passive - Allows the port to respond to Ethernet OAM commands.
Remote
This section displays information about the remote device.
Mac Address This field displays the MAC address of the remote device.
OUI This field displays the OUI (first three bytes of the MAC address) of the remote device.
Mode This field displays the operational state of the port when OAM is enabled on the port.
Active - Allows the port to issue and respond to Ethernet OAM commands.
Passive - Allows the port to respond to Ethernet OAM commands.
Config This field displays the capabilities of the Switch and remote device.
