24.4 IPv6 Multicast Status

Click Advanced Application > Multicast > IPv6 Multicast to display the screen as shown. This

screen shows the IPv6 multicast group information. See Section 24.1 on page 186 for more

information on multicasting.

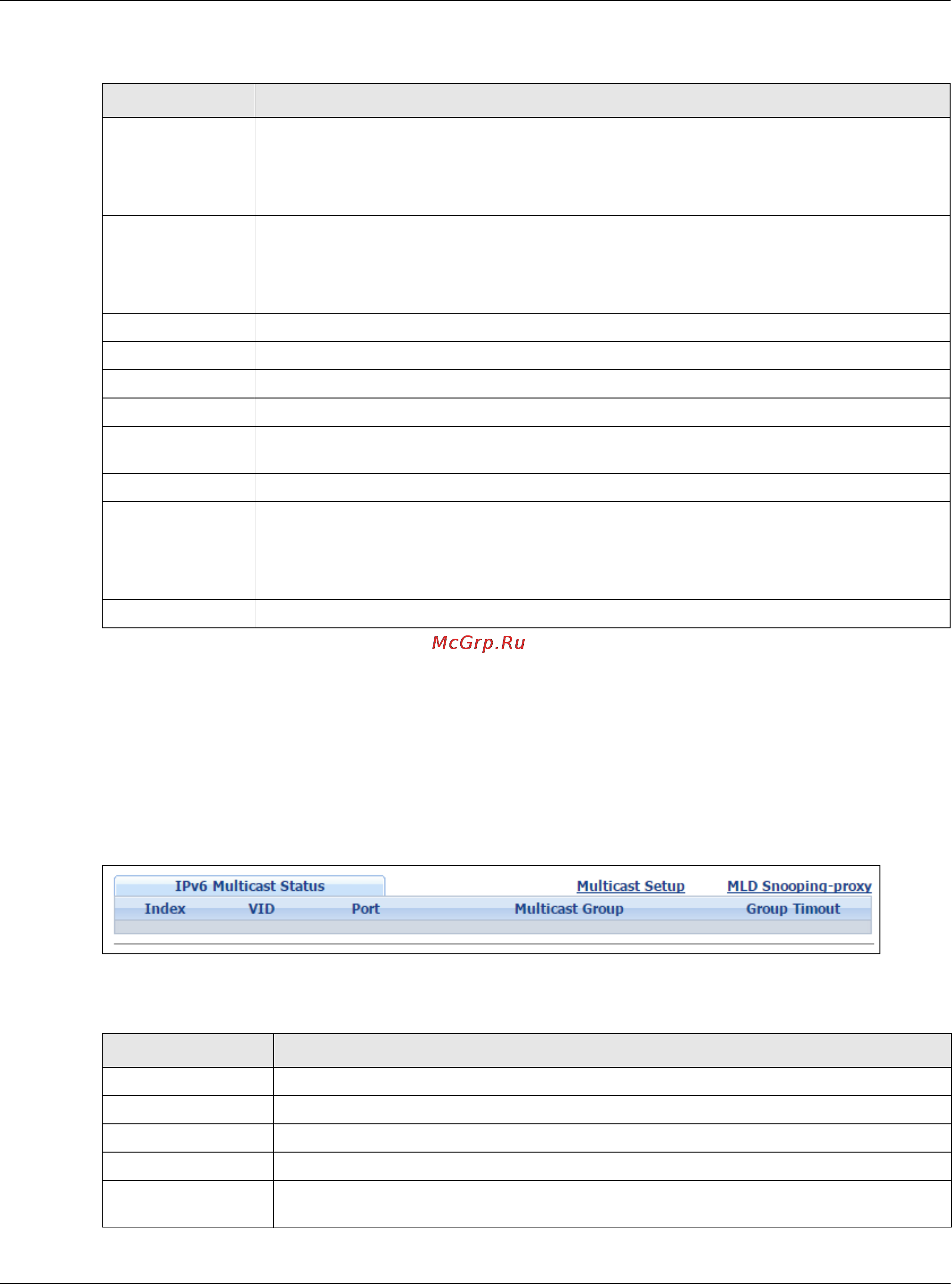

Figure 138 Advanced Application > Multicast > IPv6 Multicast

The following table describes the fields in the above screen.

End Address Type the ending multicast IP address for a range of IP addresses that you want to belong

to the IGMP filter profile.

If you want to add a single multicast IP address, enter it in both the Start Address and

End Address fields.

Add Click this to create a new entry.

This saves your changes to the Switch’s run-time memory. The Switch loses these

changes if it is turned off or loses power, so use the Save link on the top navigation panel

to save your changes to the non-volatile memory when you are done configuring.

Clear Click Clear to reset the fields to the factory defaults.

Profile Name This field displays the descriptive name of the profile.

Start Address This field displays the start of the multicast address range.

End Address This field displays the end of the multicast address range.

Delete Profile Select a profile’s check box to select a specific profile. Otherwise, select the check box in

the table heading row to select all profiles.

Delete Rule Select the check box(es) of the rule(s) that you want to remove from a profile.

Delete To delete the profile(s) and all the accompanying rules, select the profile(s) that you want

to remove in the Delete Profile column, then click the Delete button.

To delete a rule(s) from a profile, select the rule(s) that you want to remove in the Delete

Rule column, then click the Delete button.

Cancel Click Cancel to clear the Delete Profile/Delete Rule check boxes.

Table 82 Advanced Application > Multicast > IPv4 Multicast > IGMP Snooping > IGMP Filtering

Profile (continued)

LABEL DESCRIPTION

Table 83 Advanced Application > Multicast > IPv6 Multicast

LABEL DESCRIPTION

Index This is the index number of the entry.

VID This field displays the multicast VLAN ID.

Port This field displays the port number that belongs to the multicast group.

Multicast Group This field displays IP multicast group addresses.

Group Timeout This field displays the time (in seconds) that elapses before the Switch removes a MLD

group membership entry if it does not receive report messages from the port.
