Chapter 28 Layer 2 Protocol Tunneling
GS2210 Series User’s Guide
263

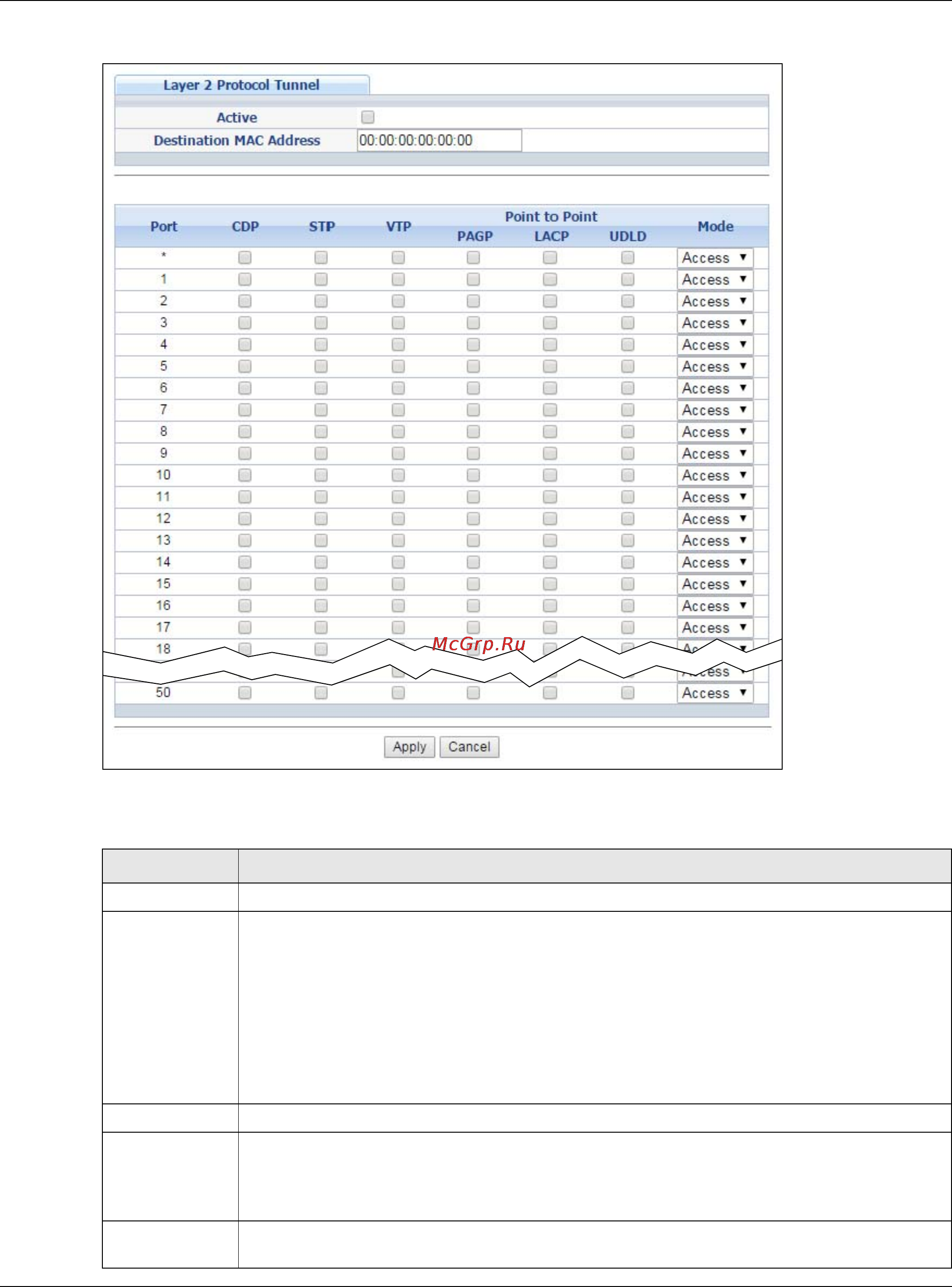

Figure 185 Advanced Application > Layer 2 Protocol Tunneling
The following table describes the labels in this screen.
Table 119 Advanced Application > Layer 2 Protocol Tunneling
LABEL DESCRIPTION
Active Select this to enable layer 2 protocol tunneling on the Switch.
Destination
MAC Address
Specify a MAC address with which the Switch uses to encapsulate the layer 2 protocol
packets by replacing the destination MAC address in the packets.
Note: The MAC address can be either a unicast MAC address or multicast MAC address. If
you use a unicast MAC address, make sure the MAC address does not exist in the
address table of a switch on the service provider’s network.
Note: All the edge switches in the service provider’s network should be set to use the same
MAC address for encapsulation.
Port This field displays the port number.
* Use this row to make the setting the same for all ports. Use this row first and then make
adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
CDP Select this option to have the Switch tunnel CDP (Cisco Discovery Protocol) packets so that
other Cisco devices can be discovered through the service provider’s network.
