Chapter 6 Tutorials
GS2210 Series User’s Guide
52

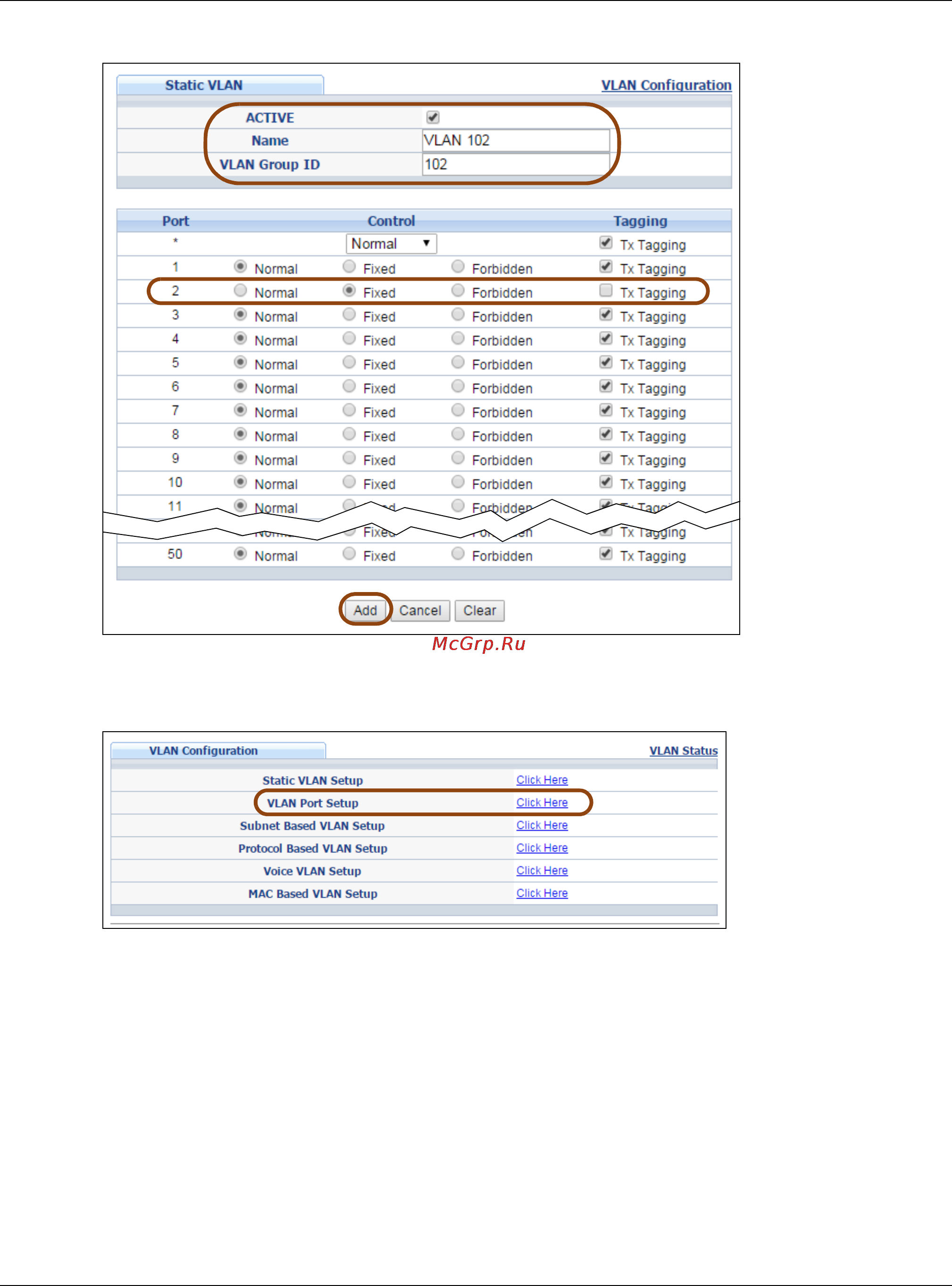

Figure 40 Tutorial: Create a Static VLAN
8 Click the VLAN Configuration link in the Static VLAN Setup screen and then the VLAN Port
Setup link in the VLAN Configuration screen.
Figure 41 Tutorial: Click the VLAN Port Setting Link
9 Enter 102 in the PVID field for port 2 to add a tag to incoming untagged frames received on that
port so that the frames are forwarded to the VLAN group that the tag defines.
10 Click Apply to save your changes back to the run-time memory.
