Chapter 18 Classifier
XS3900-48F User’s Guide
152
Click Advanced Application > Classifier in the navigation panel to display the configuration
screen as shown.

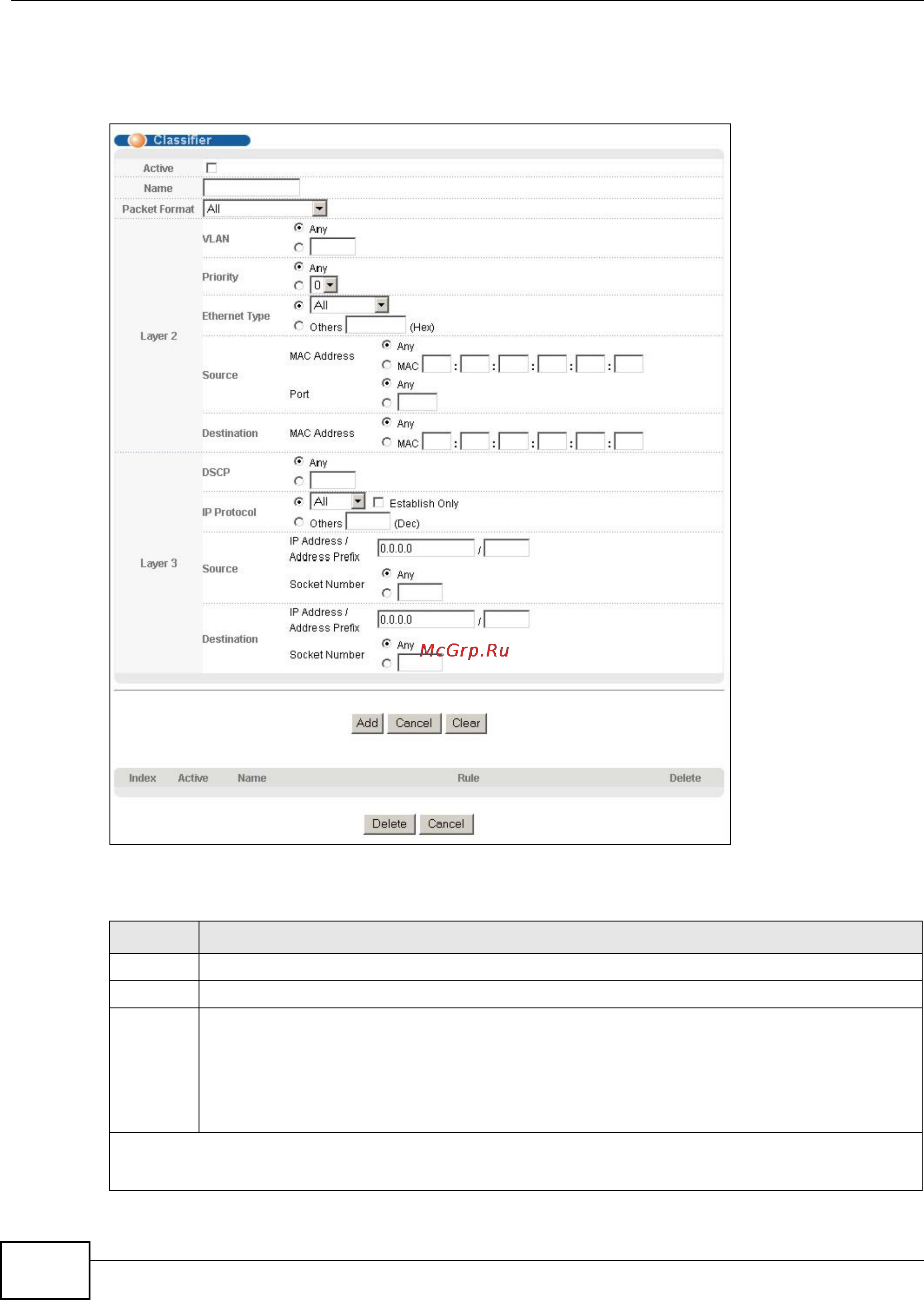

Figure 78 Advanced Application > Classifier
The following table describes the labels in this screen.
Table 54 Advanced Application > Classifier
LABEL DESCRIPTION
Active Select this option to enable this rule.
Name Enter a descriptive name for this rule for identifying purposes.
Packet
Format
Specify the format of the packet. Choices are All, 802.3 tagged, 802.3 untagged, Ethernet II
tagged and Ethernet II untagged.
A value of 802.3 indicates that the packets are formatted according to the IEEE 802.3 standards.
A value of Ethernet II indicates that the packets are formatted according to RFC 894, Ethernet
II encapsulation.
Layer 2
Specify the fields below to configure a layer-2 classifier.
