Chapter 22 Multicast
XS3900-48F User’s Guide
186
To set the Switch to forward the multicast group traffic to the subscribers, configure multicast group
settings in the Group Configuration screen. The following figure shows an example where two
multicast groups (News and Movie) are configured for the multicast VLAN 200.

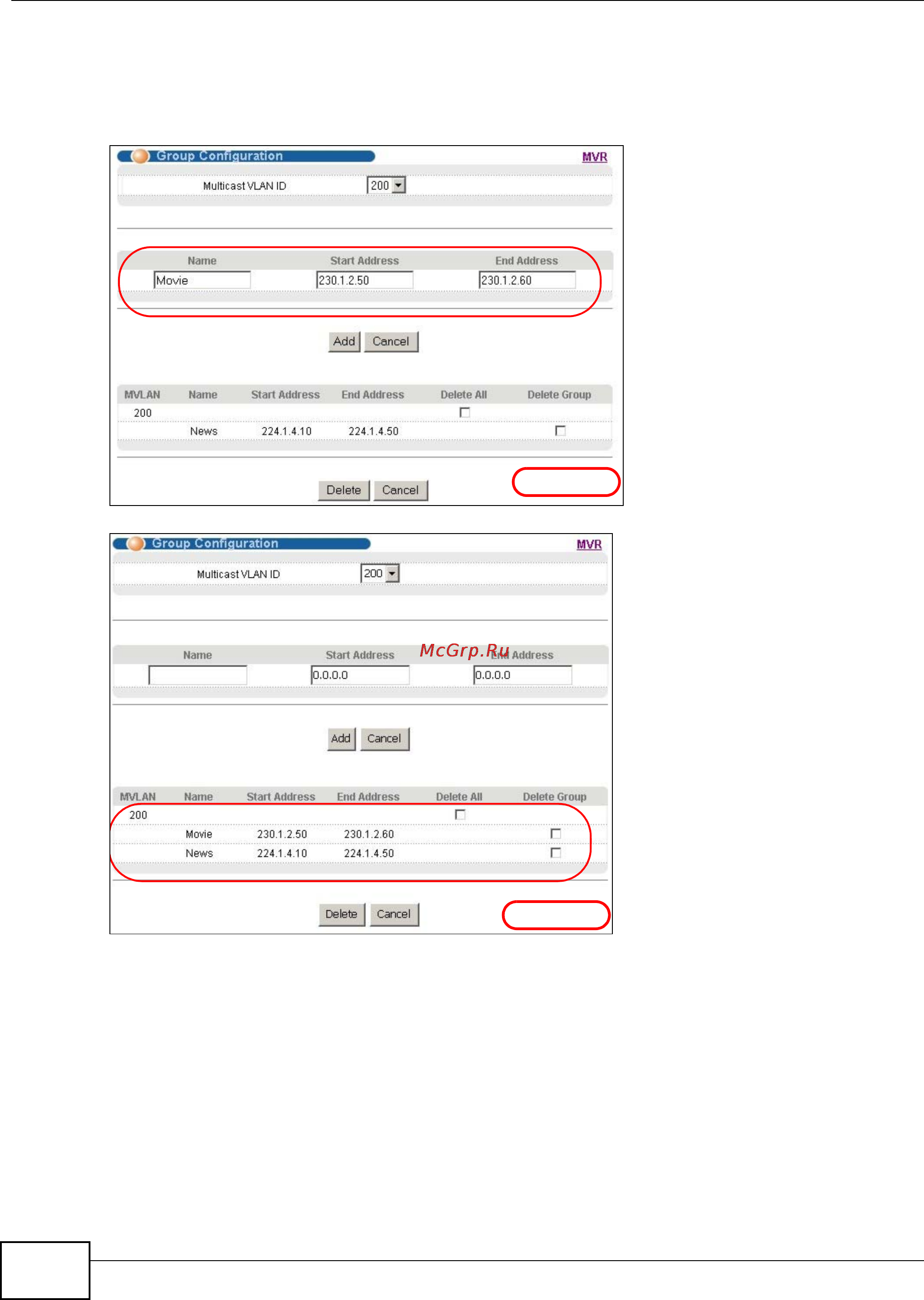

Figure 99 MVR Group Configuration Example
Figure 100 MVR Group Configuration Example
EXAMPLE
EXAMPLE
