Chapter 7 VLAN
XS3900-48F User’s Guide
86
7.5.3 Configure a Static VLAN or Private VLAN
Use this screen to create 802.1Q VLAN IDs and set VLAN members for Normal (static) or Private
(Primary, Isolated or Community) VLANs. You must create VLAN IDs for Private (Primary,
Isolated or Community) VLANs before configuring Advanced Application > Private VLAN. See
Section 7.1 on page 81 for more information on 802.1Q VLAN.
To configure a static or private VLAN, click Static VLAN in the VLAN Status screen to display the
screen as shown next.

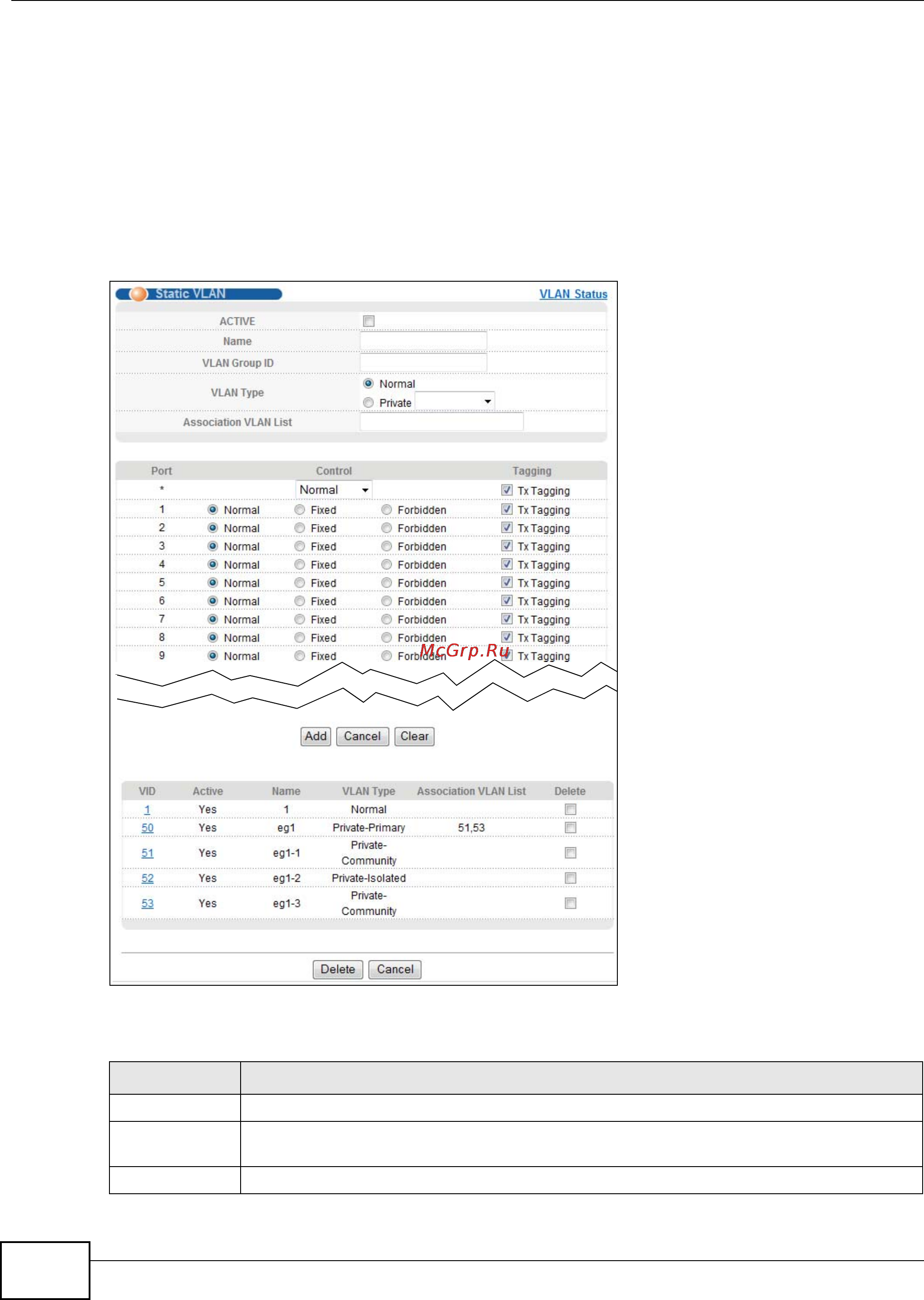

Figure 31 Advanced Application > VLAN > Static VLAN
The following table describes the related labels in this screen.
Table 22 Advanced Application > VLAN > Static VLAN
LABEL DESCRIPTION
ACTIVE Select this check box to activate the VLAN settings.
Name Enter a descriptive name for the VLAN group for identification purposes. This name consists
of up to 64 printable characters; spaces are allowed.
VLAN Group ID Enter the VLAN ID for this static entry; the valid range is between 1 and 4094.
