Chapter 24 IP Source Guard
XS3900-48F User’s Guide
215
24.6.2 ARP Inspection Log Status
Use this screen to look at log messages that were generated by ARP packets and that have not
been sent to the syslog server yet. To open this screen, click Advanced Application > IP Source
Guard > ARP Inspection > Log Status.

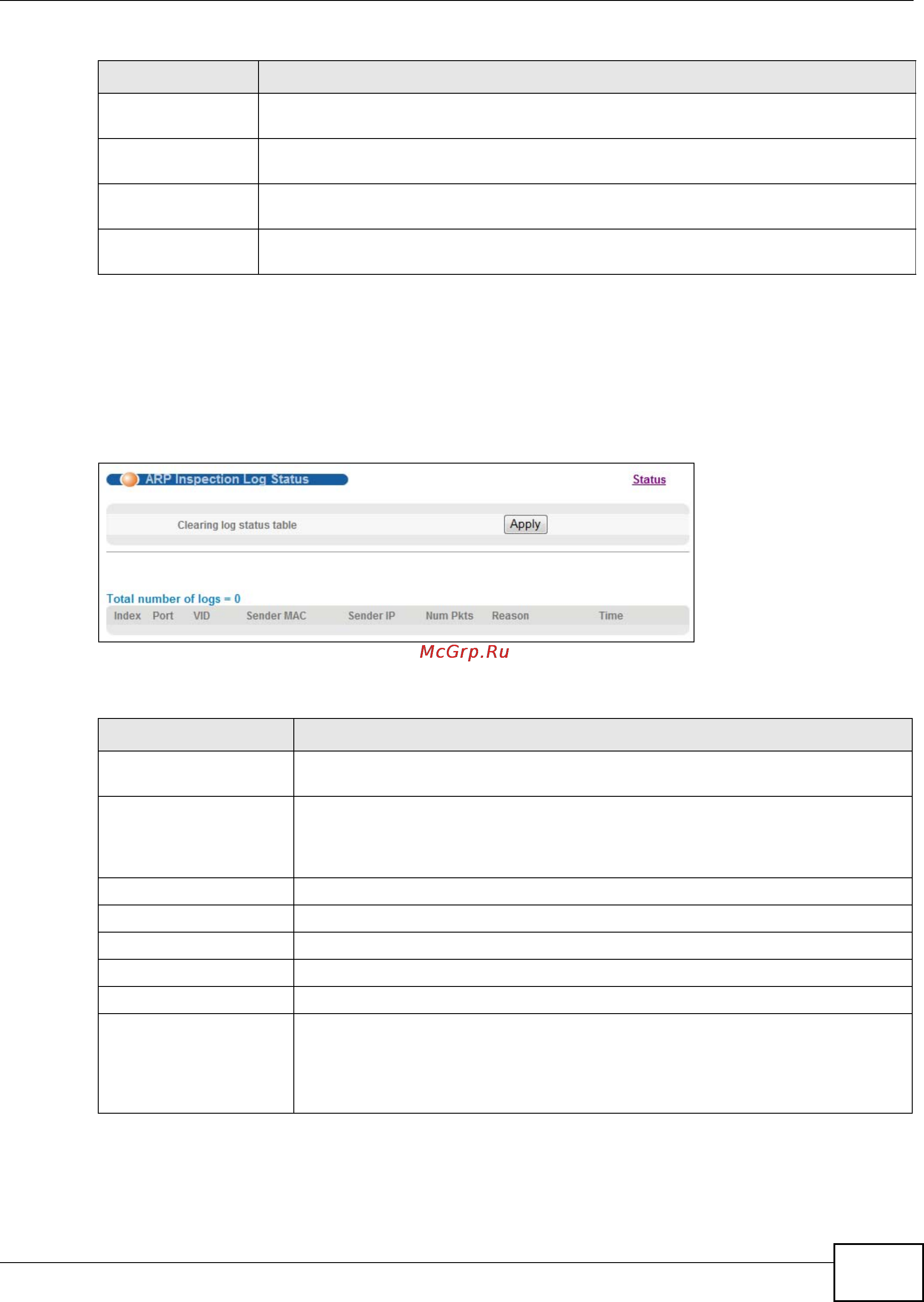

Figure 116 ARP Inspection Log Status
The following table describes the labels in this screen.
Request This field displays the total number of ARP Request packets received from the VLAN
since the Switch last restarted.
Reply This field displays the total number of ARP Reply packets received from the VLAN since
the Switch last restarted.
Forwarded This field displays the total number of ARP packets the Switch forwarded for the VLAN
since the Switch last restarted.
Dropped This field displays the total number of ARP packets the Switch discarded for the VLAN
since the Switch last restarted.
Table 90 ARP Inspection VLAN Status
LABEL DESCRIPTION
Table 91 ARP Inspection Log Status
LABEL DESCRIPTION
Clearing log status table Click Apply to remove all the log messages that were generated by ARP packets
and that have not been sent to the syslog server yet.
Total number of logs This field displays the number of log messages that were generated by ARP
packets and that have not been sent to the syslog server yet. If one or more log
messages are dropped due to unavailable buffer, there is an entry called overflow
with the current number of dropped log messages.
Index This field displays a sequential number for each log message.
Port This field displays the source port of the ARP packet.
VID This field displays the source VLAN ID of the ARP packet.
Sender MAC This field displays the source MAC address of the ARP packet.
Sender IP This field displays the source IP address of the ARP packet.
Num Pkts This field displays the number of ARP packets that were consolidated into this log
message. The Switch consolidates identical log messages generated by ARP
packets in the log consolidation interval into one log message. You can configure
this interval in the ARP Inspection Configure screen. See Section 24.7 on page
216.
