Chapter 2 Tutorials
XS3900-48F User’s Guide
36
2.3.2 Configuring Switch B
The example uses an XGS4700-48F as switch B.

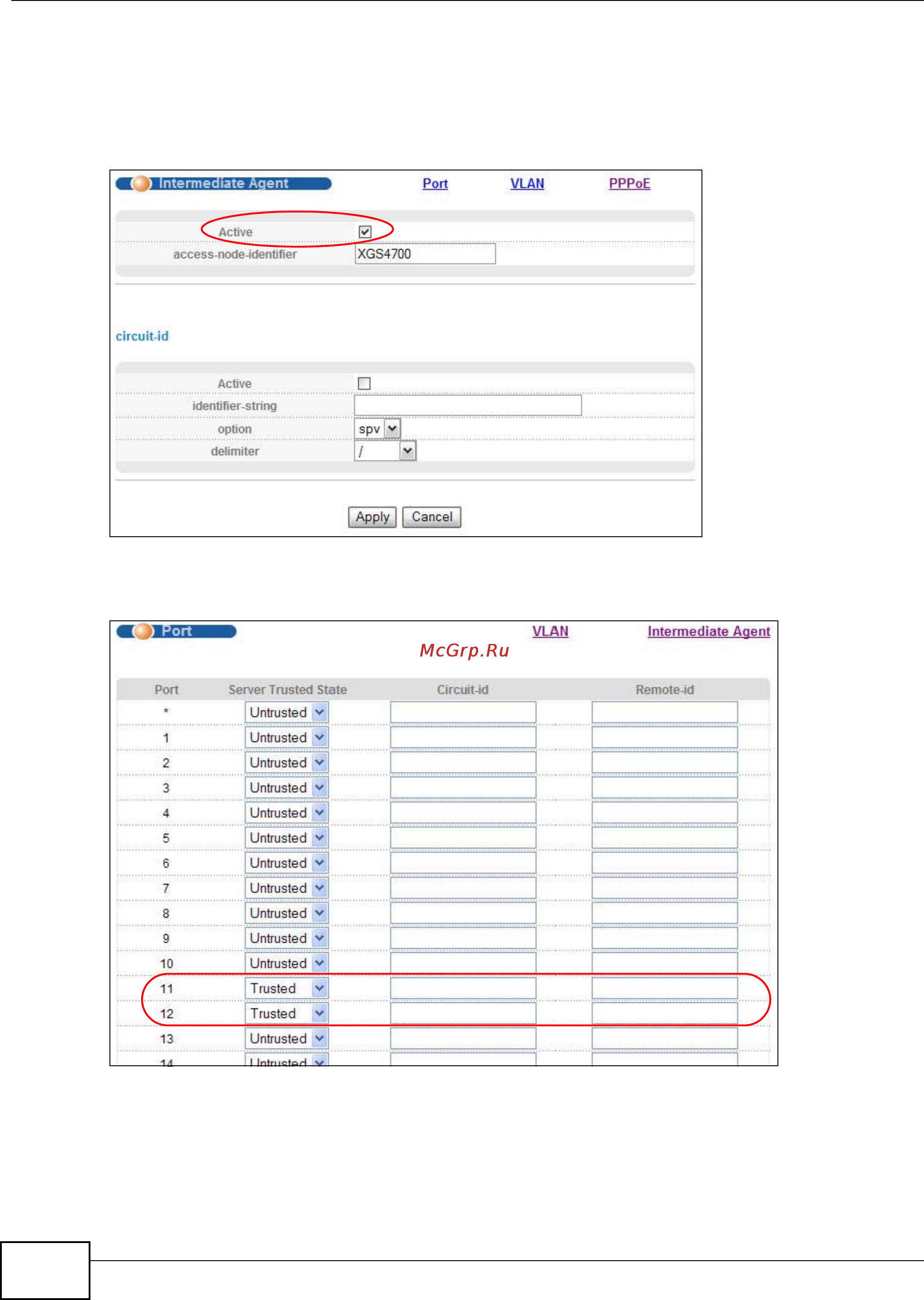

1 Click Advanced Application > PPPoE > Intermediate Agent. Select Active then click Apply.
Click Port on the top of the screen.
2 Select Trusted for ports 11 and 12 and then click Apply.
Then Click Intermediate Agent on the top of the screen.
