Chapter 2 Tutorials
XS3900-48F User’s Guide
37

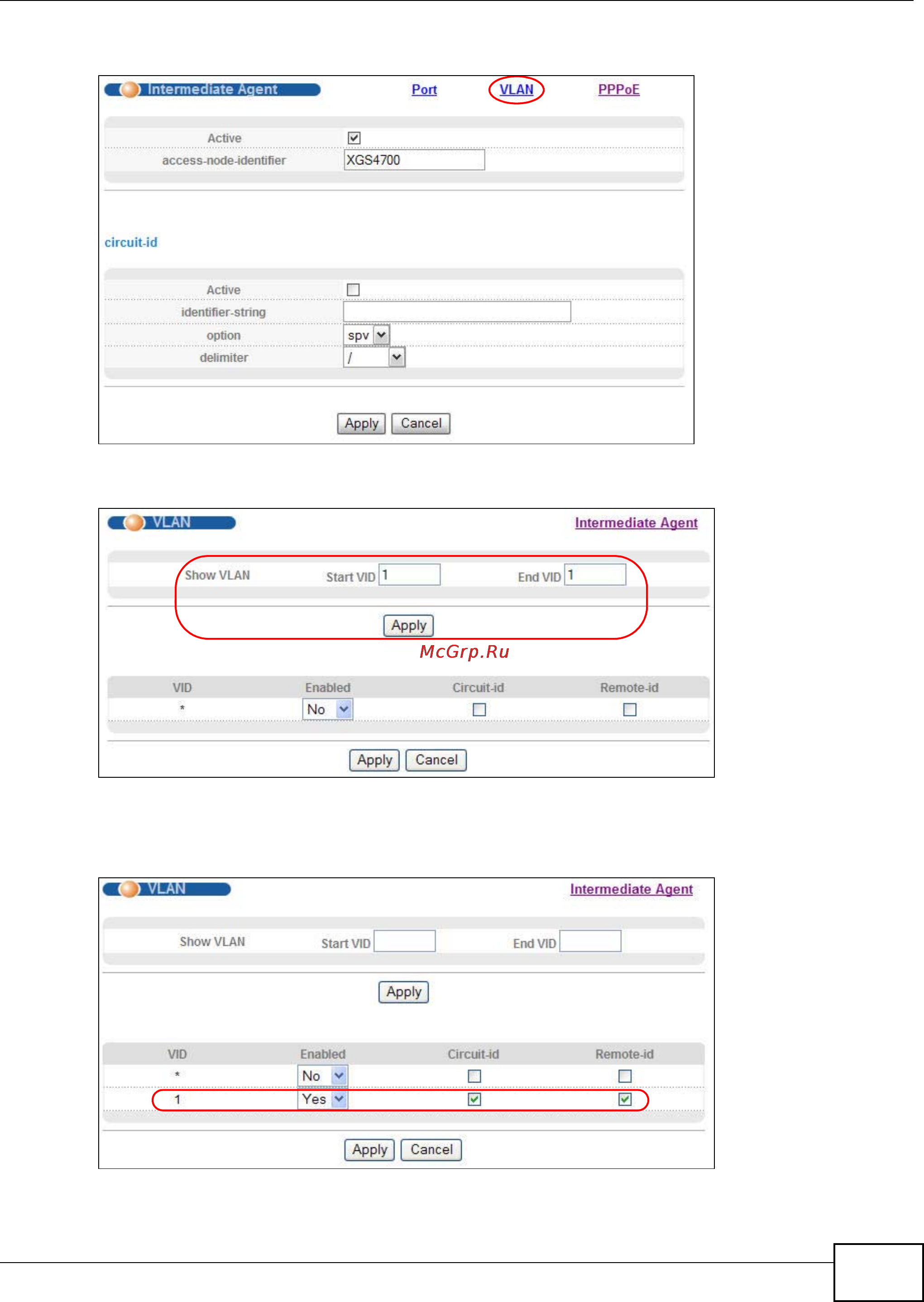

3 The Intermediate Agent screen appears. Click VLAN on the top of the screen.
4 Enter 1 for both Start VID and End VID. Click Apply.
5 Then select Yes to enable PPPoE IA in VLAN 1 and also select Circuit-id and Remote-id to allow
the Switch to add these two strings to frames tagged with VLAN 1 and pass to the PPPoE server.
Click Apply.
