Chapter 2 Tutorials
XS3900-48F User’s Guide
40

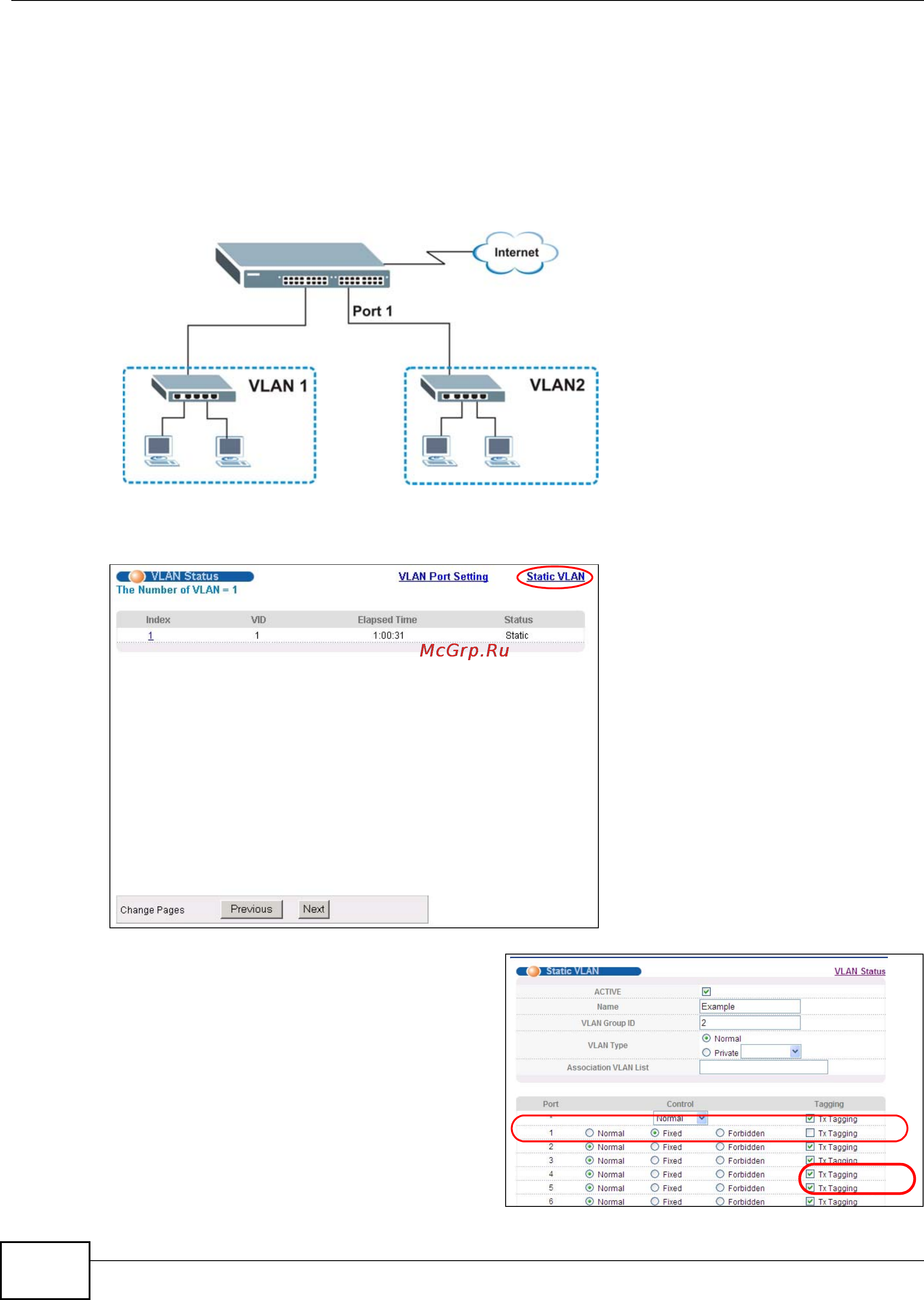

2.5 Creating a VLAN
VLANs confine broadcast frames to the VLAN group in which the port(s) belongs. You can do this
with port-based VLAN or tagged static VLAN with fixed port members.
In this example, you want to configure port 1 as a member of VLAN 2.
Figure 7 Initial Setup Network Example: VLAN
1 Click Advanced Application > VLAN in the navigation panel and click the Static VLAN link.
2 In the Static VLAN screen, select ACTIVE,
enter a descriptive name in the Name field
and enter 2 in the VLAN Group ID field for
the VLAN2 network.
EXAMPLE
