Chapter 2 Tutorials
XS3900-48F User’s Guide
39

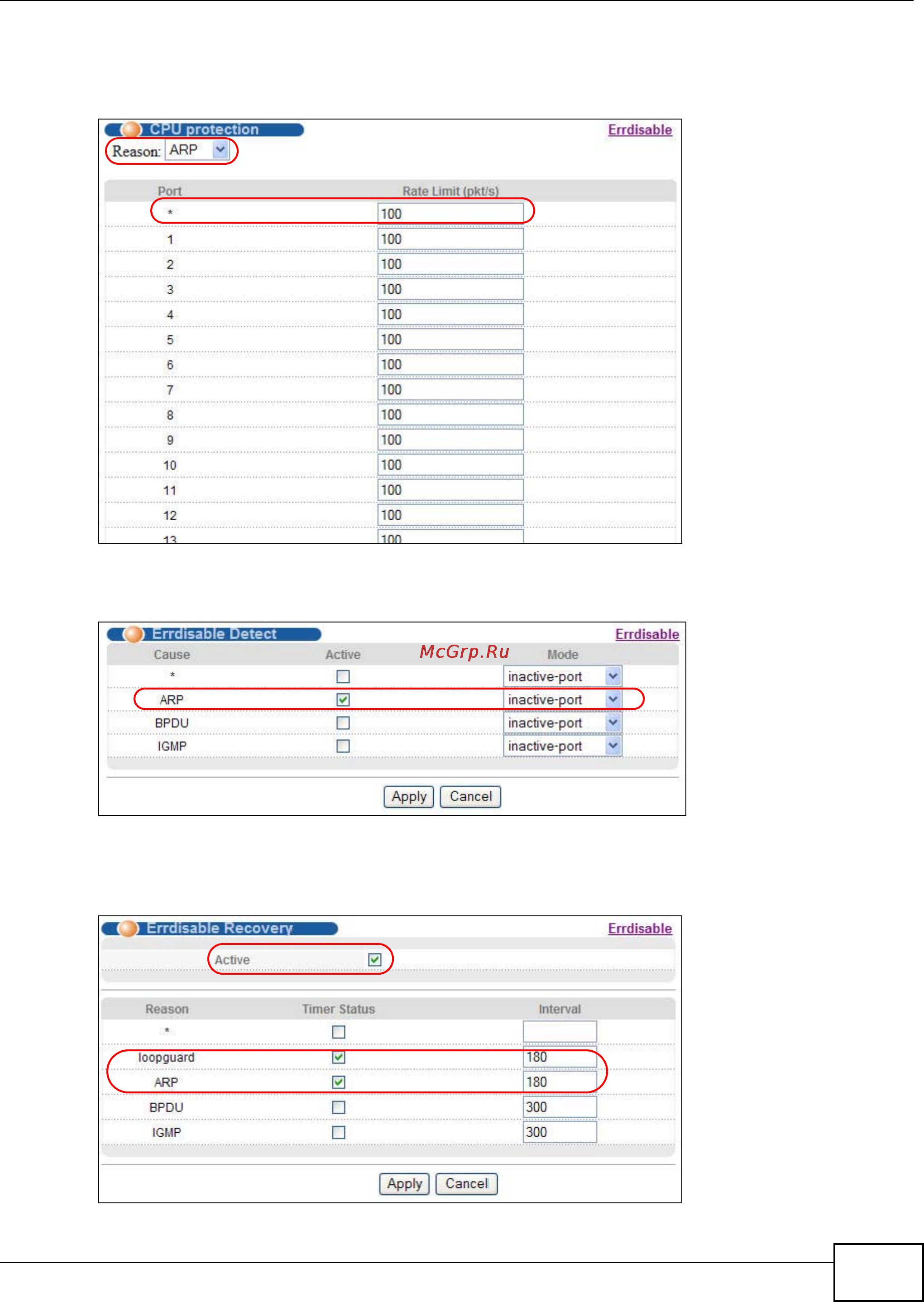

2 Click Advanced Application > Errdisable > CPU Protection, select ARP as the reason, enter
100 as the rate limit (packets per second) for the first entry (port *) to apply the setting to all
ports. Then click Apply.
3 Click Advanced Application > Errdisable > Errdisable Detect, select Active for cause ARP
and inactive-port as the mode. Then click Apply.
4 Click Advanced Application > Errdisable > Errdisable Recovery, select Active and Timer
Status for loopguard and ARP entries. Also enter 180 (180 seconds = 3 minutes) in the Interval
field for both entries. Then click Apply.
