Chapter 7 VLAN
XS3900-48F User’s Guide
90
services). All untagged incoming frames will be classified based on their source IP subnet and
prioritized accordingly. That is, video services receive the highest priority and data the lowest.

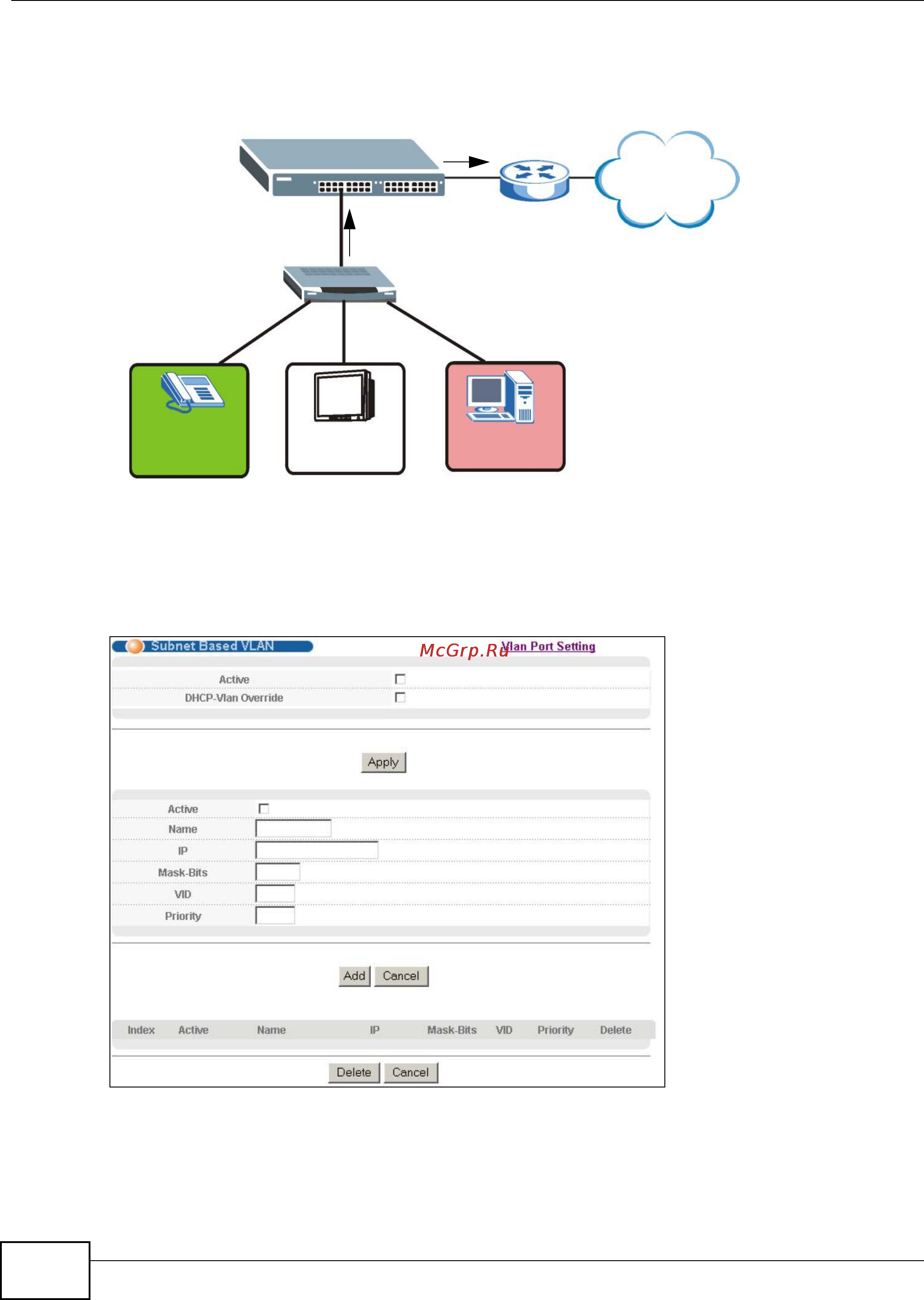

Figure 33 Subnet Based VLAN Application Example
7.5.5.1 Configuring Subnet Based VLAN
Click Subnet Based VLAN in the VLAN Port Setting screen to display the configuration screen as
shown.
Figure 34 Advanced Application > VLAN > VLAN Port Setting > Subnet Based VLAN
10.1.1.0/24
192.168.1.0/24
172.16.1.0/24
Internet
VID = 100
VID = 200
VID = 300
Untagged
Frames
Tagged Frames
