Chapter 2 Tutorials
XS3900-48F User’s Guide
46

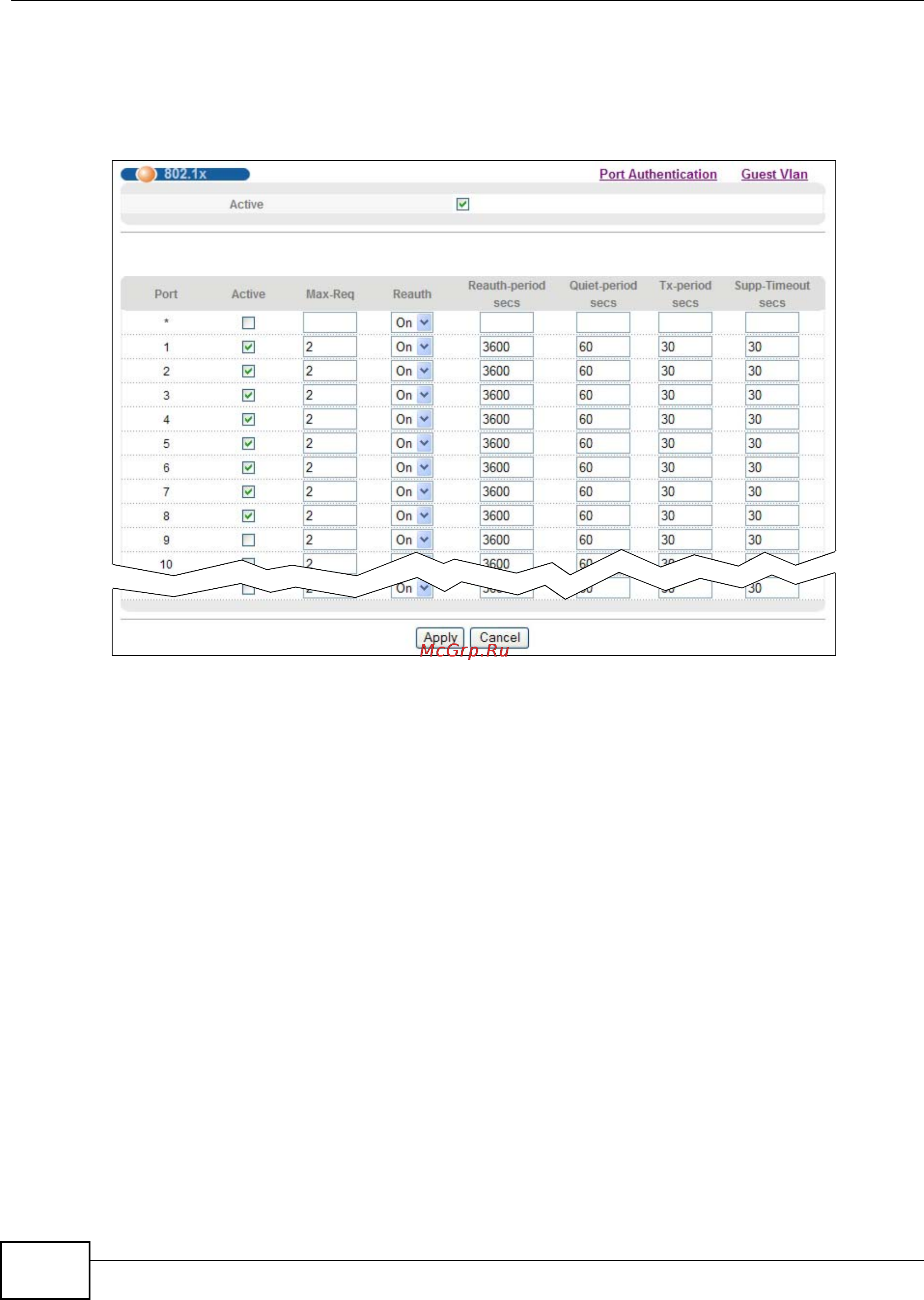

2 Select the first Active checkbox to enable 802.1x authentication on the Switch.
Select the Active checkboxes for ports 1 to 8 to turn on 802.1x authentication on the selected
ports.
Click Apply.
2.7.3 Enabling Guest VLAN
1 Click the Guest Vlan link in the 802.1x screen.
