Chapter 24 IP Source Guard
XS3900-48F User’s Guide
205
24.3 Static Binding
Use this screen to manage static bindings for DHCP snooping and ARP inspection. Static bindings
are uniquely identified by the MAC address and VLAN ID. Each MAC address and VLAN ID can only
be in one static binding. If you try to create a static binding with the same MAC address and VLAN
ID as an existing static binding, the new static binding replaces the original one. To open this
screen, click Advanced Application > IP Source Guard > Static Binding.

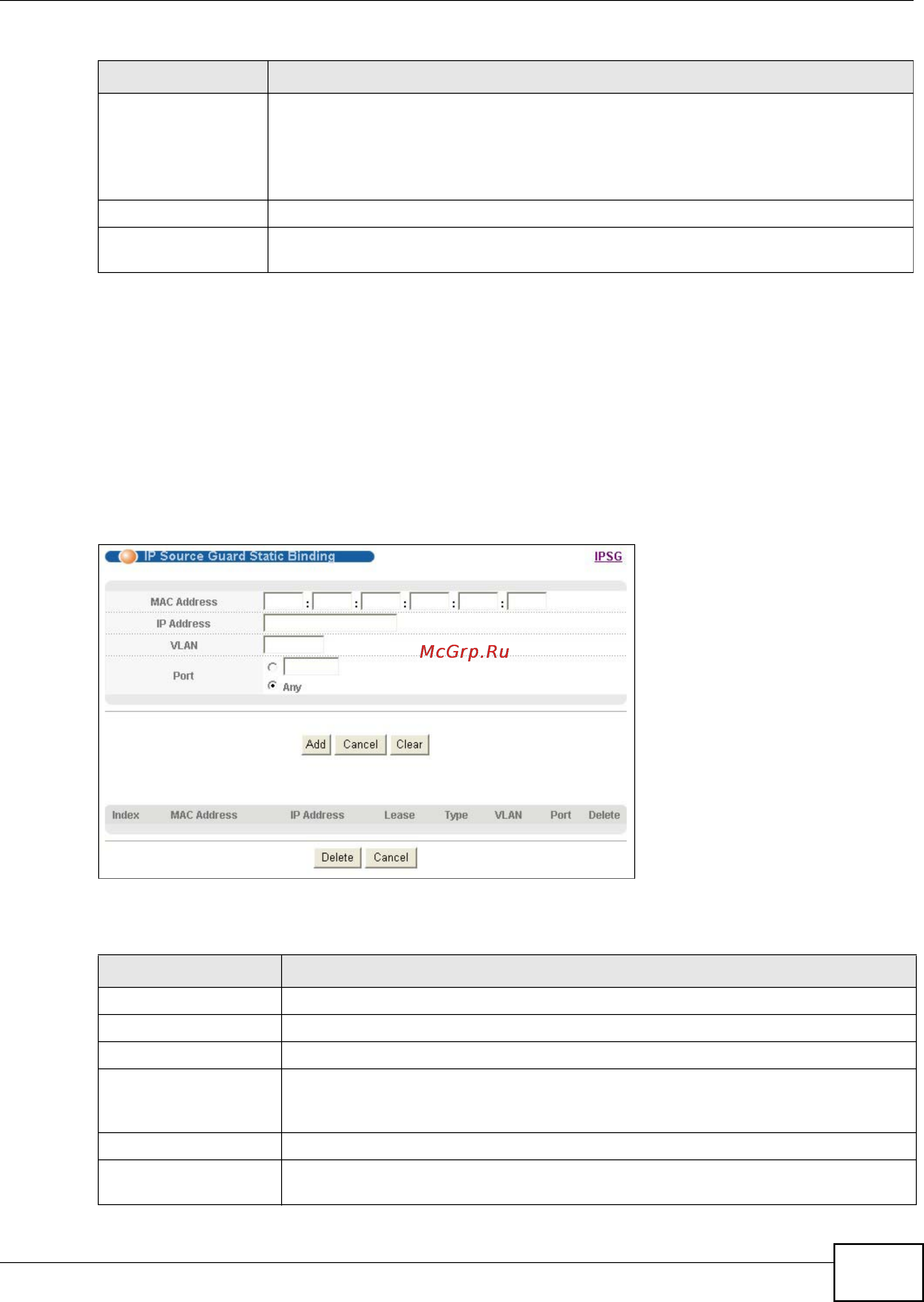

Figure 109 IP Source Guard Static Binding
The following table describes the labels in this screen.
Type This field displays how the Switch learned the binding.
static: This binding was learned from information provided manually by an
administrator.
dhcp-snooping: This binding was learned by snooping DHCP packets.
VID This field displays the source VLAN ID in the binding.
Port This field displays the port number in the binding. If this field is blank, the binding
applies to all ports.
Table 83 IP Source Guard (continued)
LABEL DESCRIPTION
Table 84 IP Source Guard Static Binding
LABEL DESCRIPTION
MAC Address Enter the source MAC address in the binding.
IP Address Enter the IP address assigned to the MAC address in the binding.
VLAN Enter the source VLAN ID in the binding.
Port Specify the port(s) in the binding. If this binding has one port, select the first radio
button and enter the port number in the field to the right. If this binding applies to all
ports, select Any.
Add Click this to create the specified static binding or to update an existing one.
Cancel Click this to reset the values above based on the last selected static binding or, if not
applicable, to clear the fields above.
