Chapter 4 The Web Configurator
XS3900-48F User’s Guide
56
In the navigation panel, click a main link to reveal a list of submenu links.
The following table describes the links in the navigation panel.

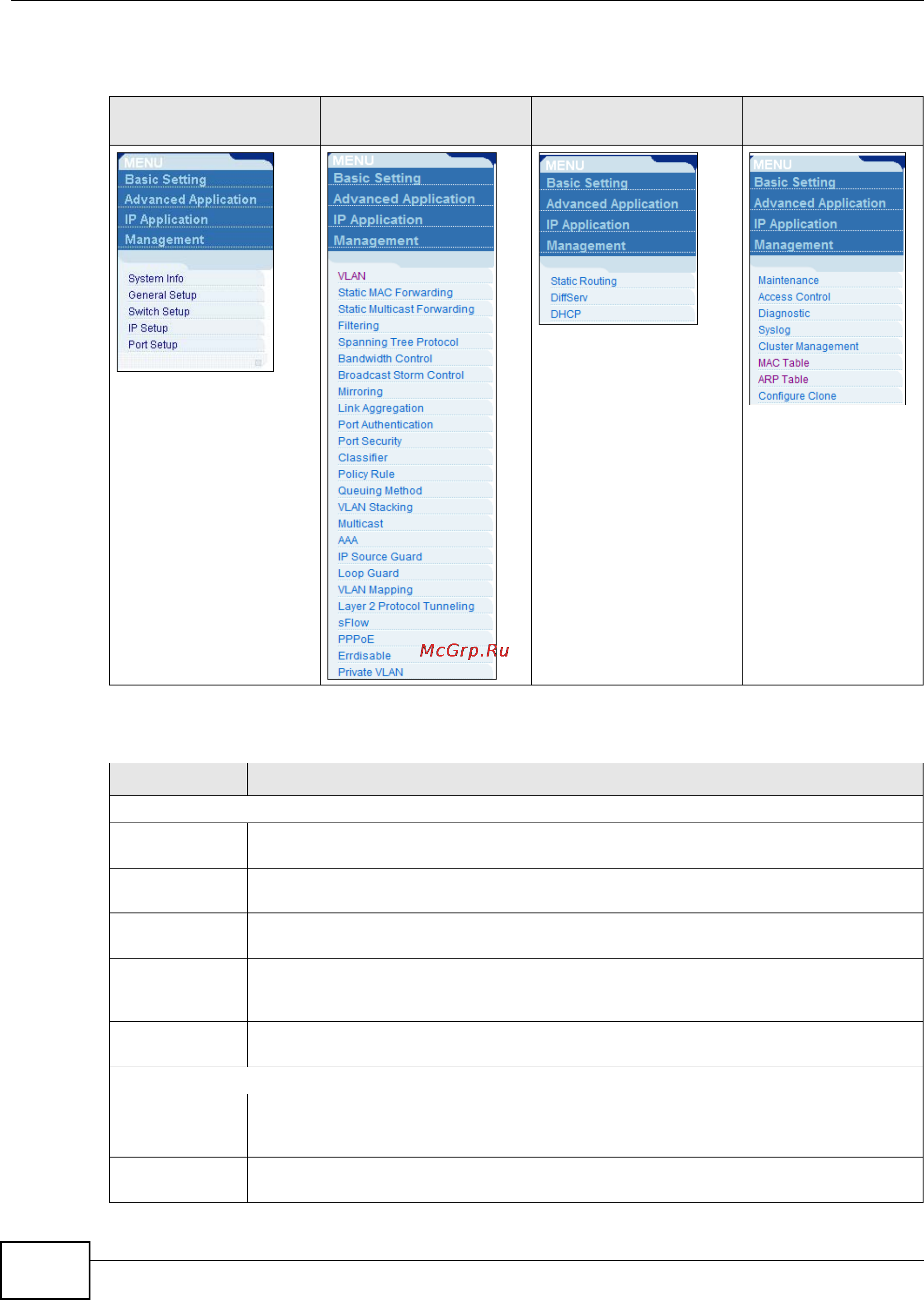

Table 9 Navigation Panel Sub-links Overview
BASIC SETTING
ADVANCED
APPLICATION
IP APPLICATION MANAGEMENT
Table 10 Navigation Panel Links
LINK DESCRIPTION
Basic Settings
System Info This link takes you to a screen that displays general system and hardware monitoring
information.
General Setup This link takes you to a screen where you can configure general identification information
and time settings for the Switch.
Switch Setup This link takes you to a screen where you can set up global Switch parameters such as
VLAN type, MAC address learning, GARP and priority queues.
IP Setup This link takes you to a screen where you can configure the IP address, subnet mask
(necessary for Switch management) and DNS (domain name server) and set up to 64 IP
routing domains.
Port Setup This link takes you to screens where you can configure speed, flow control and priority
settings for individual Switch ports.
Advanced Application
VLAN This link takes you to screens where you can configure port-based or 802.1Q VLAN
(depending on what you configured in the Switch Setup menu). You can also configure a
protocol based VLAN or a subnet based VLAN in these screens.
Static MAC
Forwarding
This link takes you to screens where you can configure static MAC addresses for a port.
These static MAC addresses do not age out.
