Chapter 22 Multicast
XS3900-48F User’s Guide
178
22.5 IGMP Filtering Profile
An IGMP filtering profile specifies a range of multicast groups that clients connected to the Switch
are able to join. A profile contains a range of multicast IP addresses which you want clients to be
able to join. Profiles are assigned to ports (in the Multicast Setting screen). Clients connected to
those ports are then able to join the multicast groups specified in the profile. Each port can be
assigned a single profile. A profile can be assigned to multiple ports.
Click Advanced Applications > Multicast > Multicast Setting > IGMP Filtering Profile link to
display the screen as shown.

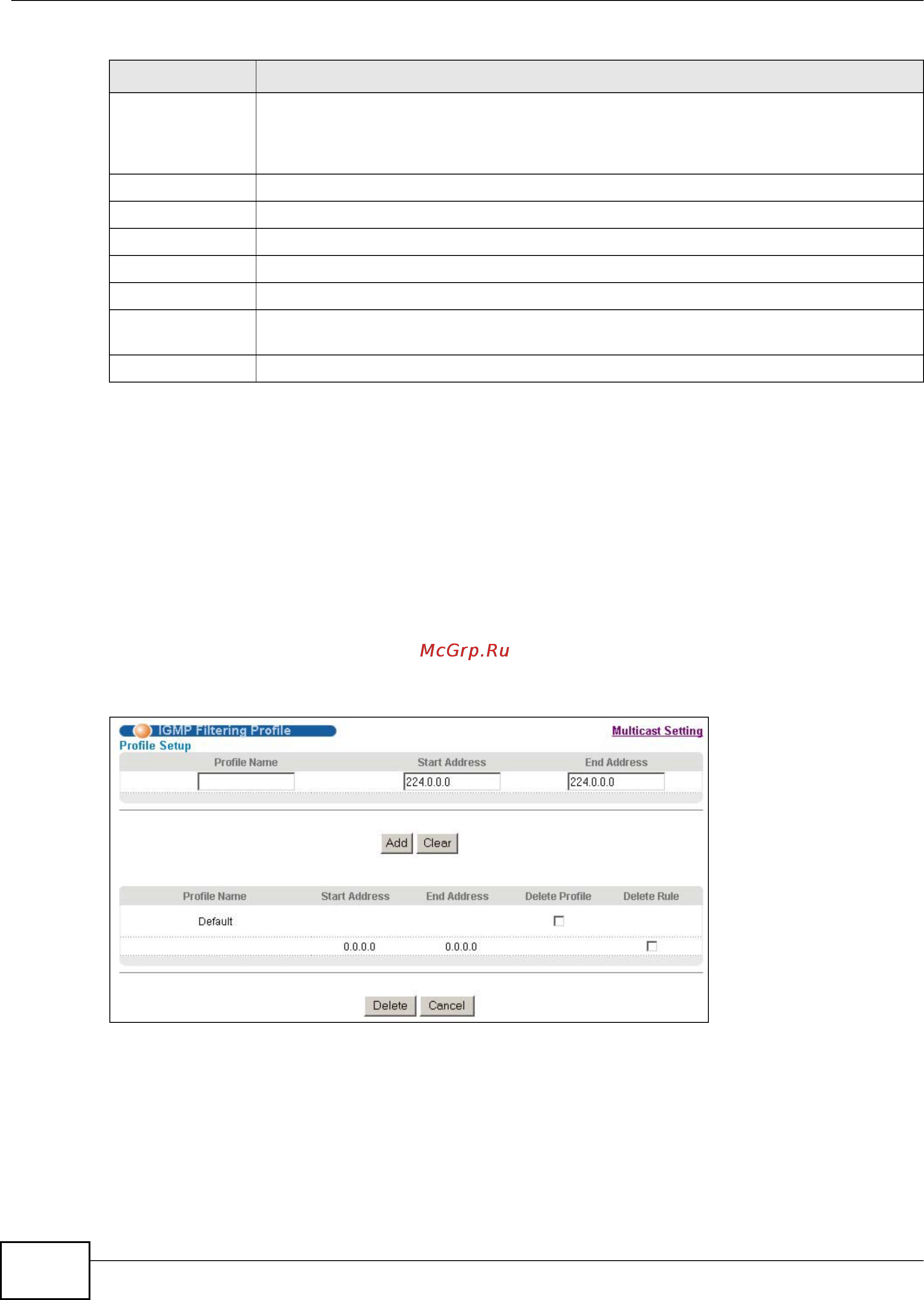

Figure 92 Advanced Application > Multicast > Multicast Setting > IGMP Filtering Profile
Add Click Add to insert the entry in the summary table below and save your changes to the
Switch’s run-time memory. The Switch loses these changes if it is turned off or loses
power, so use the Save link on the top navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel Click Cancel to reset the fields to your previous configuration.
Clear Click Clear to reset the fields to the factory defaults.
Index This is the number of the IGMP snooping VLAN entry in the table.
Name This field displays the descriptive name for this VLAN group.
VID This field displays the ID number of the VLAN group.
Delete Check the rule(s) that you want to remove in the Delete column, then click the Delete
button.
Cancel Click Cancel to clear the Delete check boxes.
Table 69 Advanced Application > Multicast > Multicast Setting > IGMP Snooping VLAN (continued)
LABEL DESCRIPTION
