Chapter 7 VLAN
XS3900-48F User’s Guide
88
7.5.4 Configure VLAN Port Settings
Use the VLAN Port Setting screen to configure the static VLAN (IEEE 802.1Q) settings on a port.
See Section 7.1 on page 81 for more information on 802.1Q VLAN. Click the VLAN Port Setting
link in the VLAN Status screen.

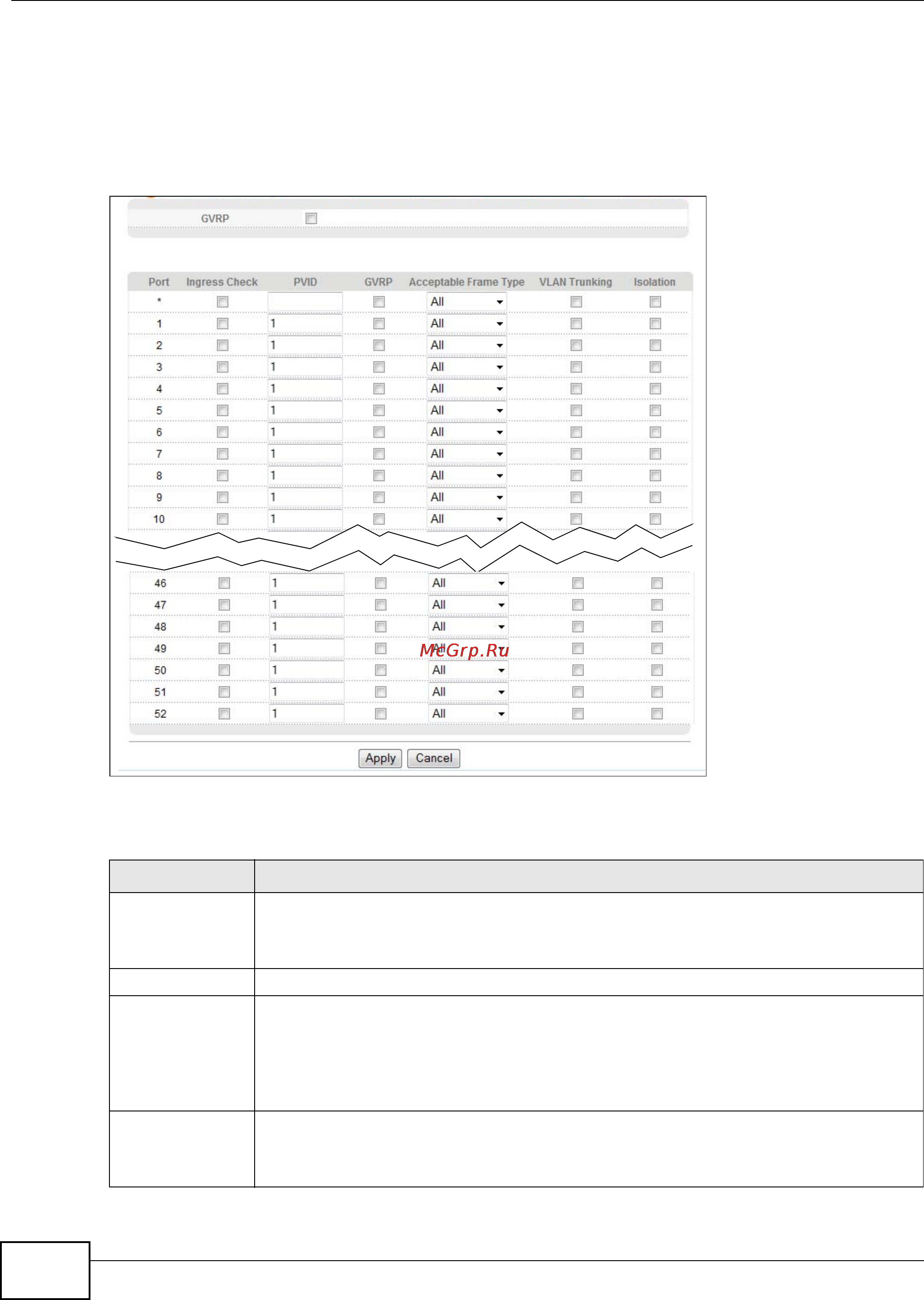

Figure 32 Advanced Application > VLAN > VLAN Port Setting
The following table describes the labels in this screen.
Table 23 Advanced Application > VLAN > VLAN Port Setting
LABEL DESCRIPTION
GVRP GVRP (GARP VLAN Registration Protocol) is a registration protocol that defines a way for
switches to register necessary VLAN members on ports across the network.
Select this check box to permit VLAN groups beyond the local Switch.
Port This field displays the port number.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all ports. Use this row
first to set the common settings and then make adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
Ingress Check If this check box is selected for a port, the Switch discards incoming frames for VLANs
that do not include this port in its member set.
Clear this check box to disable ingress filtering.
