Chapter 29 PPPoE
XS3900-48F User’s Guide
240
29.3.1 PPPoE IA Per-Port
Use this screen to specify whether individual ports are trusted or untrusted ports and have the
Switch add extra information to PPPoE discovery packets from PPPoE clients on a per-port basis.
Note: The Switch will drop all PPPoE packets if you enable the PPPoE Intermediate Agent
on the Switch and there are no trusted ports.
Click the Port link in the Intermediate Agent screen to display the screen as shown.

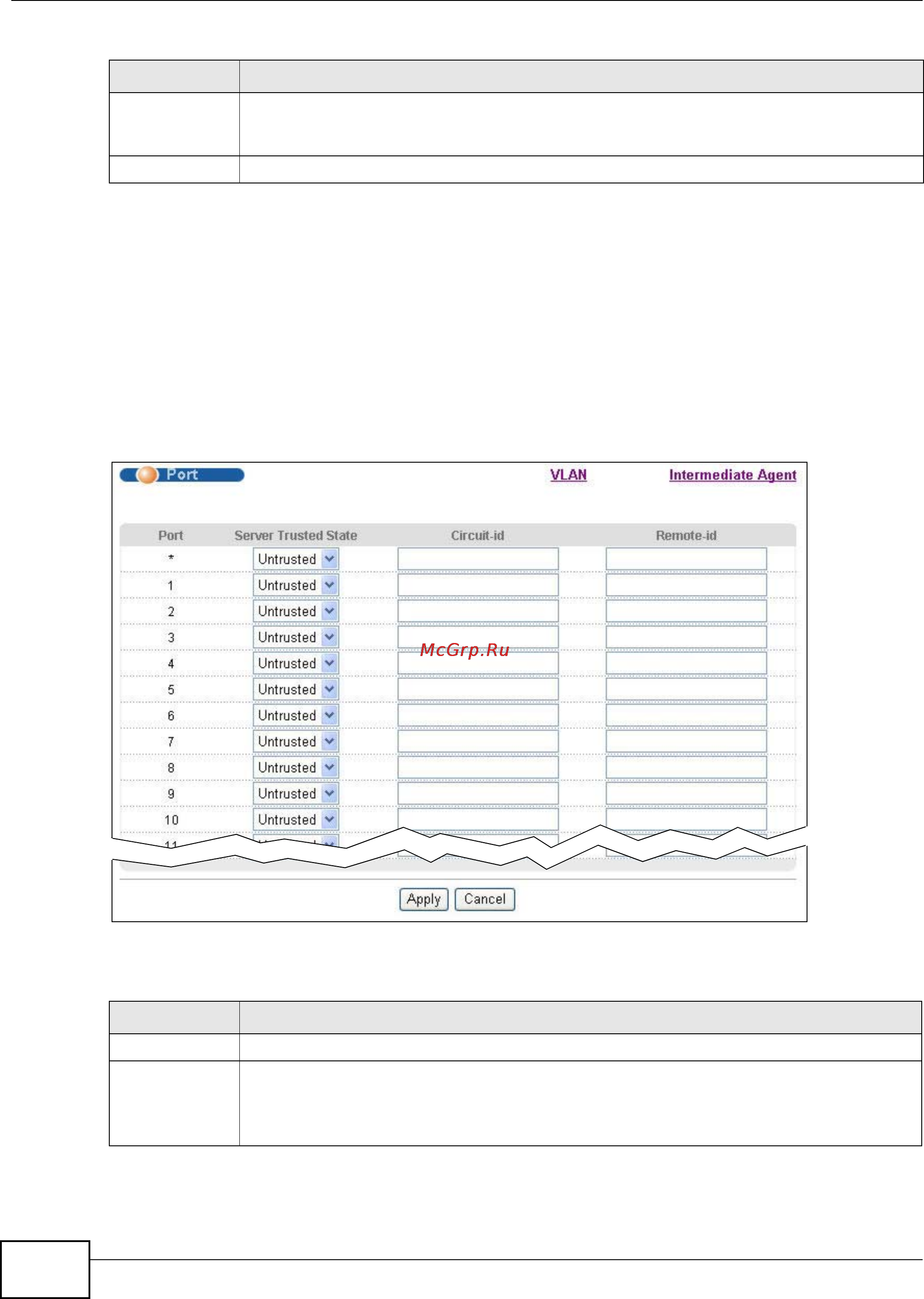

Figure 136 Advanced Application > PPPoE > Intermediate Agent > Port
The following table describes the labels in this screen.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Table 106 Advanced Application > PPPoE > Intermediate Agent (continued)
LABEL DESCRIPTION
Table 107 Advanced Application > PPPoE > Intermediate Agent > Port
LABEL DESCRIPTION
Port This field displays the port number.
* Use this row to make the setting the same for all ports. Use this row first and then make
adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
