XS3900-48F User’s Guide 296
CHAPTER 37
Diagnostic
This chapter explains the Diagnostic screen.
37.1 Diagnostic
Click Management > Diagnostic in the navigation panel to open this screen. Use this screen to
check system logs, ping IP addresses or perform port tests.

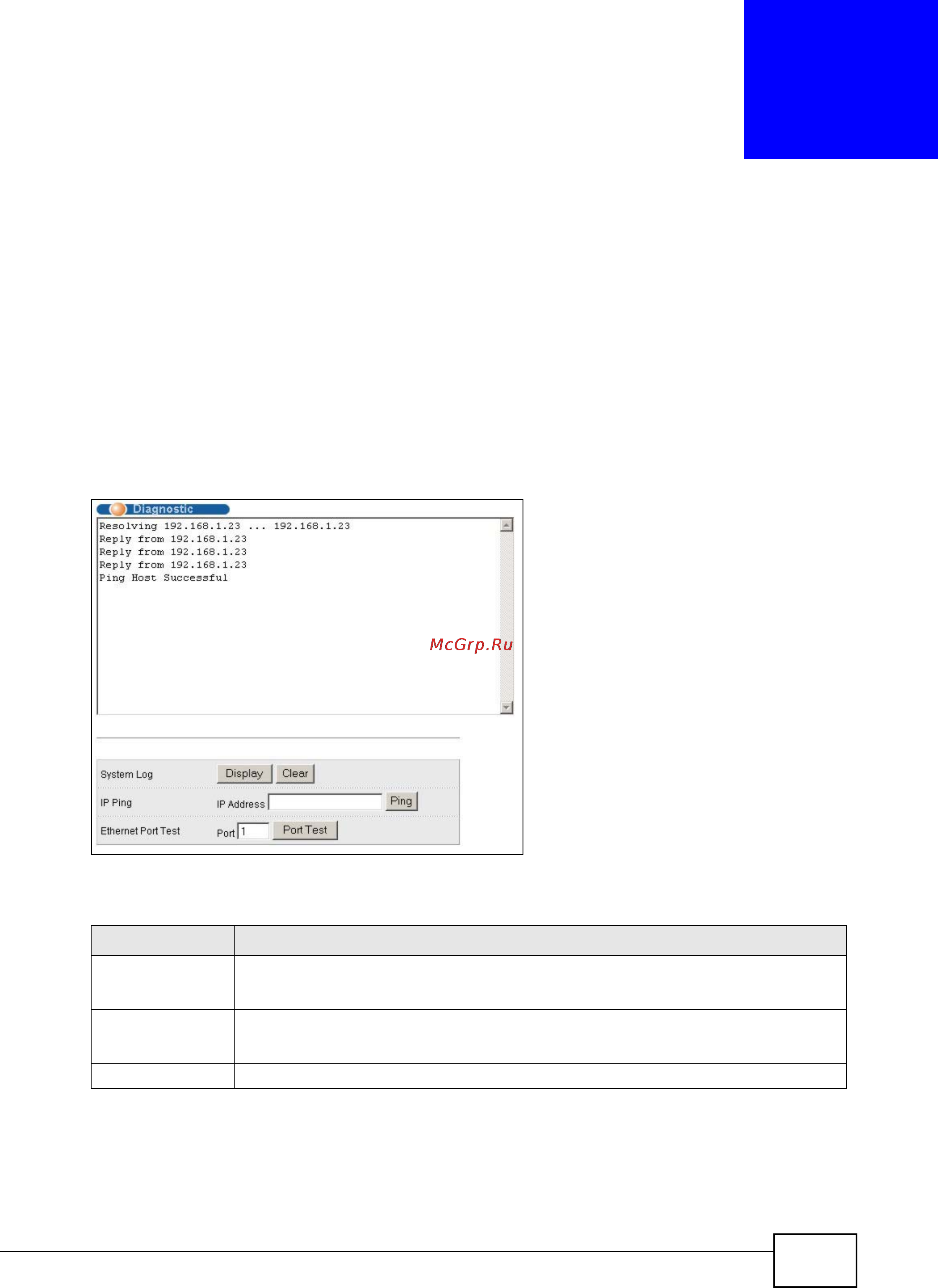

Figure 183 Management > Diagnostic
The following table describes the labels in this screen.
Table 141 Management > Diagnostic
LABEL DESCRIPTION
System Log Click Display to display a log of events in the multi-line text box.
Click Clear to empty the text box and reset the syslog entry.
IP Ping Type the IP address of a device that you want to ping in order to test a connection.
Click Ping to have the Switch ping the IP address (in the field to the left).
Ethernet Port Test Enter a port number and click Port Test to perform an internal loopback test.
