Chapter 7 VLAN
XS3900-48F User’s Guide
85
7.5.2 VLAN Details
Use this screen to view detailed port settings and status of the VLAN group. See Section 7.1 on
page 81 for more information on static 802.1Q VLAN. Click on an index number in the VLAN
Status screen to display VLAN details.

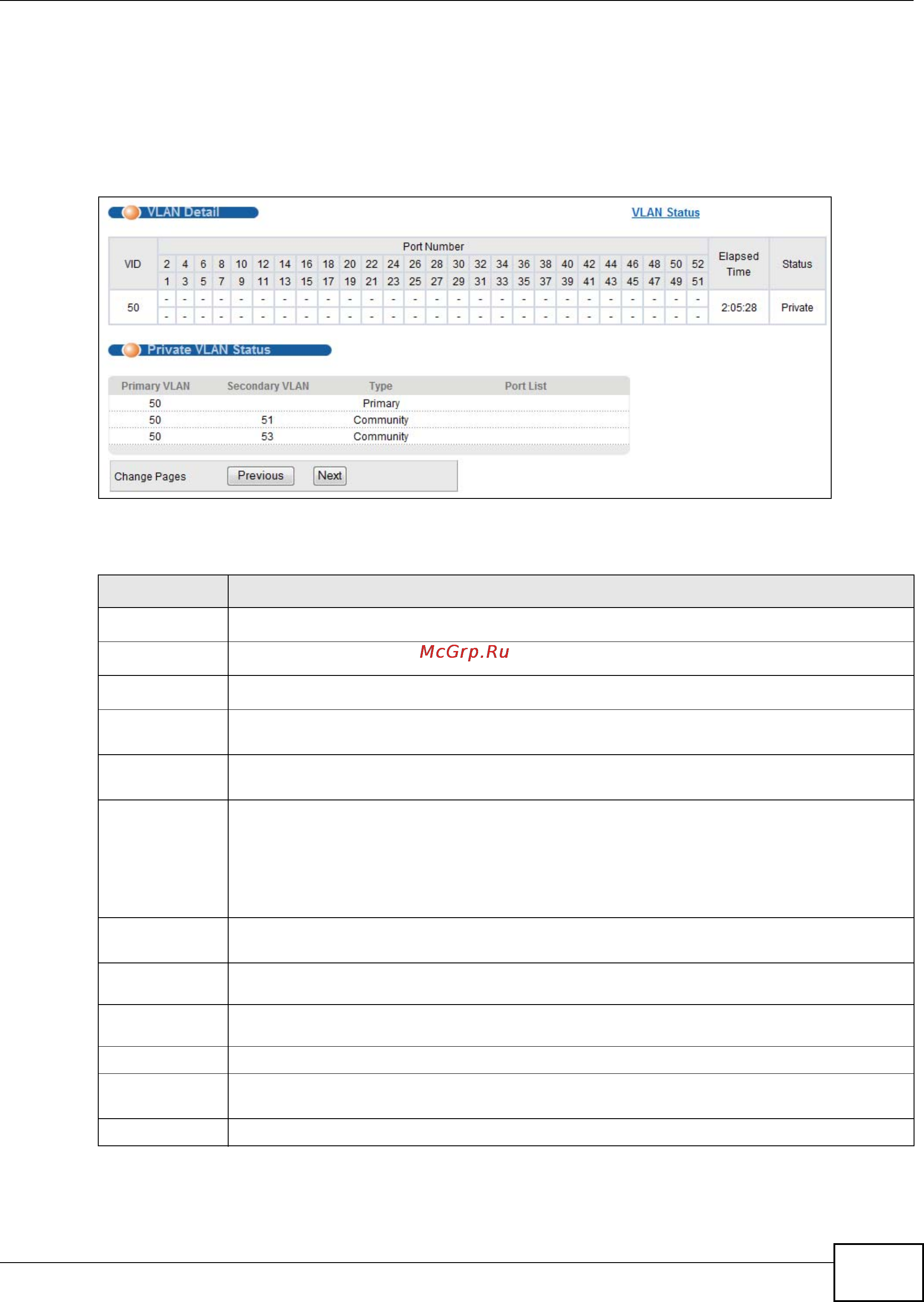

Figure 30 Advanced Application > VLAN > VLAN Detail
The following table describes the labels in this screen.
Table 21 Advanced Application > VLAN > VLAN Detail
LABEL DESCRIPTION
VLAN Status Click this to go to the VLAN Status screen.
VLAN Detail
VID This is the VLAN identification number that was configured in the Static VLAN screen.
Port
Number
This column displays the ports that are participating in a VLAN. A tagged port is marked as
T, an untagged port is marked as U and ports not participating in a VLAN are marked as “–“.
Elapsed
Time
This field shows how long it has been since a normal VLAN was registered or a static VLAN
was set up.
Status This field shows how this VLAN was added to the Switch;
• Dynamic - using GVRP
• Static - manually added as a normal entry
•Private - manually added as a private VLAN (primary, isolated or community)
• MVR - added via Multicast VLAN Registration (MVR)
Private VLAN
Status
These fields show private VLAN information for the selected VLAN. See Chapter 29 on page
236 for more information on private VLANs.
Primary
VLAN
This field shows the primary VLAN ID in the selected VLAN.
Secondary
VLAN
This field shows the secondary VLAN ID in the selected VLAN.
Type This field shows the type of private VLAN: Primary, Community or Isolated.
Port List This shows the ports mapped to the private VLAN using the Advanced Application >
Private VLAN or Advanced Application > VLAN > Static VLAN screen.
Change Pages Use the Previous and Next buttons to display different pages.
