Chapter 2 Tutorials
XS3900-48F User’s Guide
27

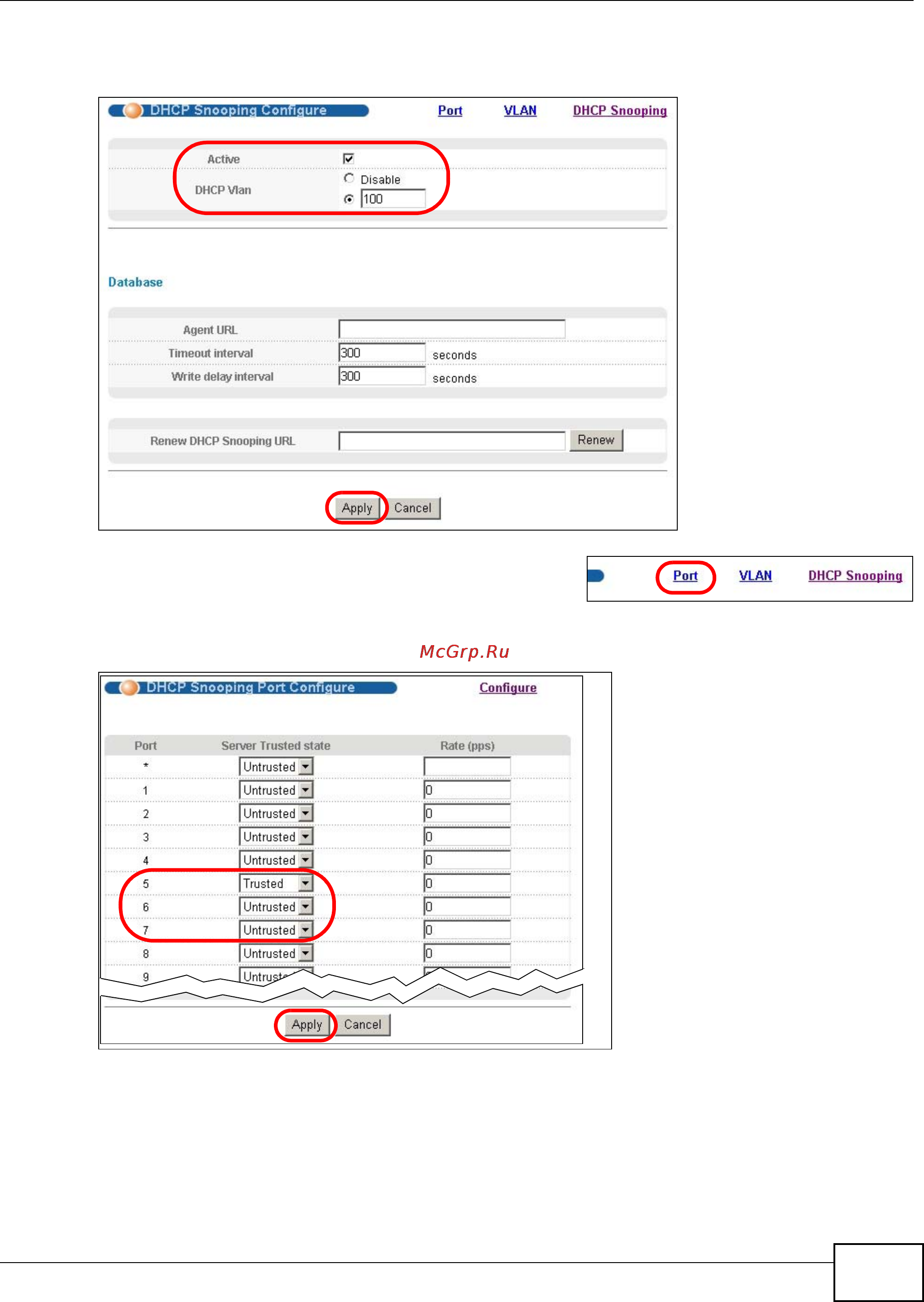

4 Go to Advanced Application > IP Source Guard > DHCP snooping > Configure, activate and
specify VLAN 100 as the DHCP VLAN as shown. Click Apply.
5 Click the Port link at the top right corner.
6 The DHCP Snooping Port Configure screen appears.
Select Trusted in the Server Trusted state field for port 5 because the DHCP server is connected
to port 5. Keep ports 6 and 7 Untrusted because they are connected to DHCP clients. Click Apply.
