Chapter 2 Tutorials
XS3900-48F User’s Guide
30

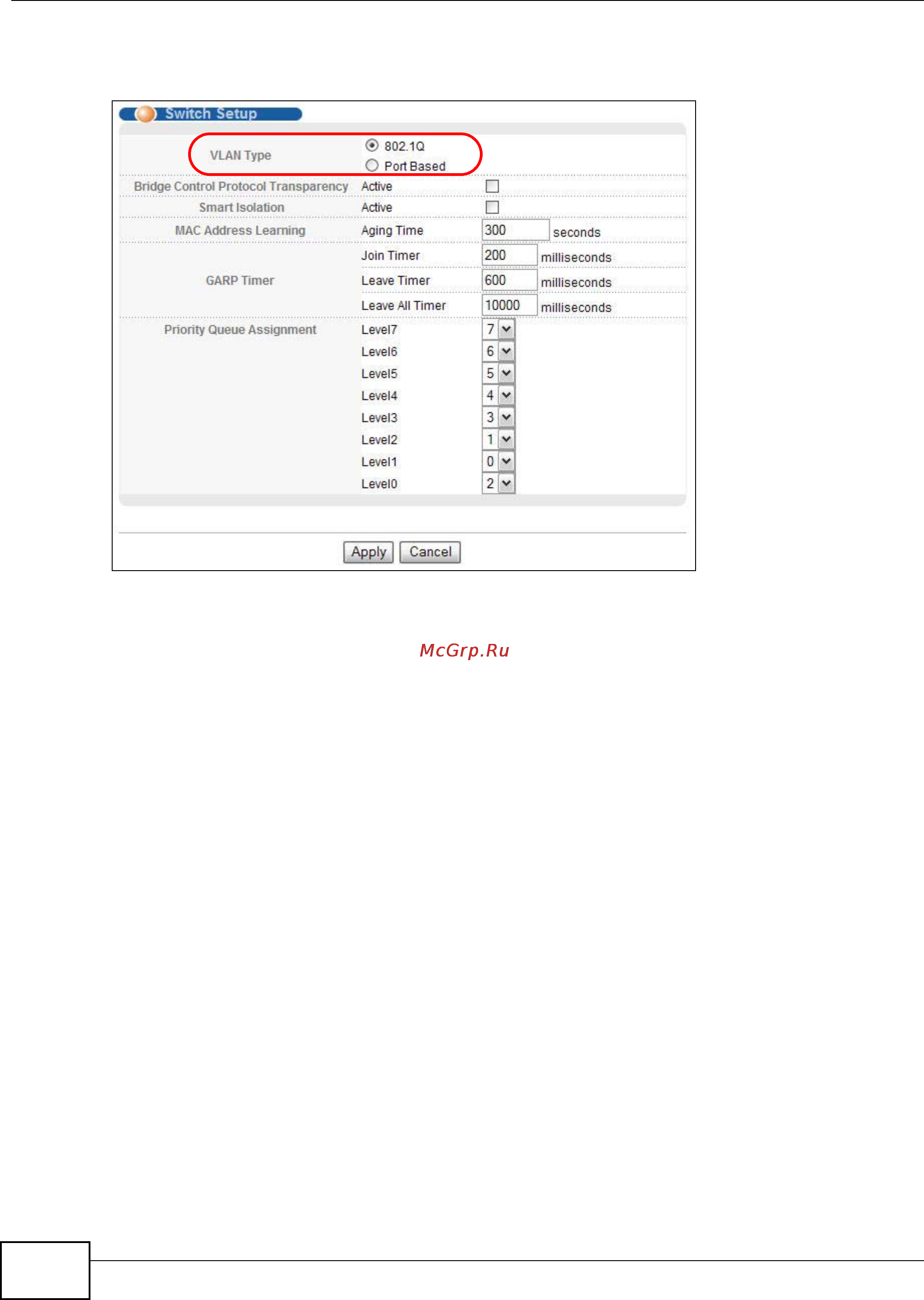

2 Go to Basic Setting > Switch Setup and set the VLAN type to 802.1Q. Click Apply to save the
settings to the run-time memory.
3 Click Advanced Application > VLAN > Static VLAN.
4 In the Static VLAN screen, select ACTIVE, enter a descriptive name (VLAN 102 for example) in
the Name field and enter 102 in the VLAN Group ID field.
5 Select Fixed to configure port 2 to be a permanent member of this VLAN.
6 Clear the TX Tagging check box to set the Switch to remove VLAN tags before sending.
