Chapter 7 VLAN
XS3900-48F User’s Guide
97
The following screen shows users on a port-based, port-isolated VLAN configuration.

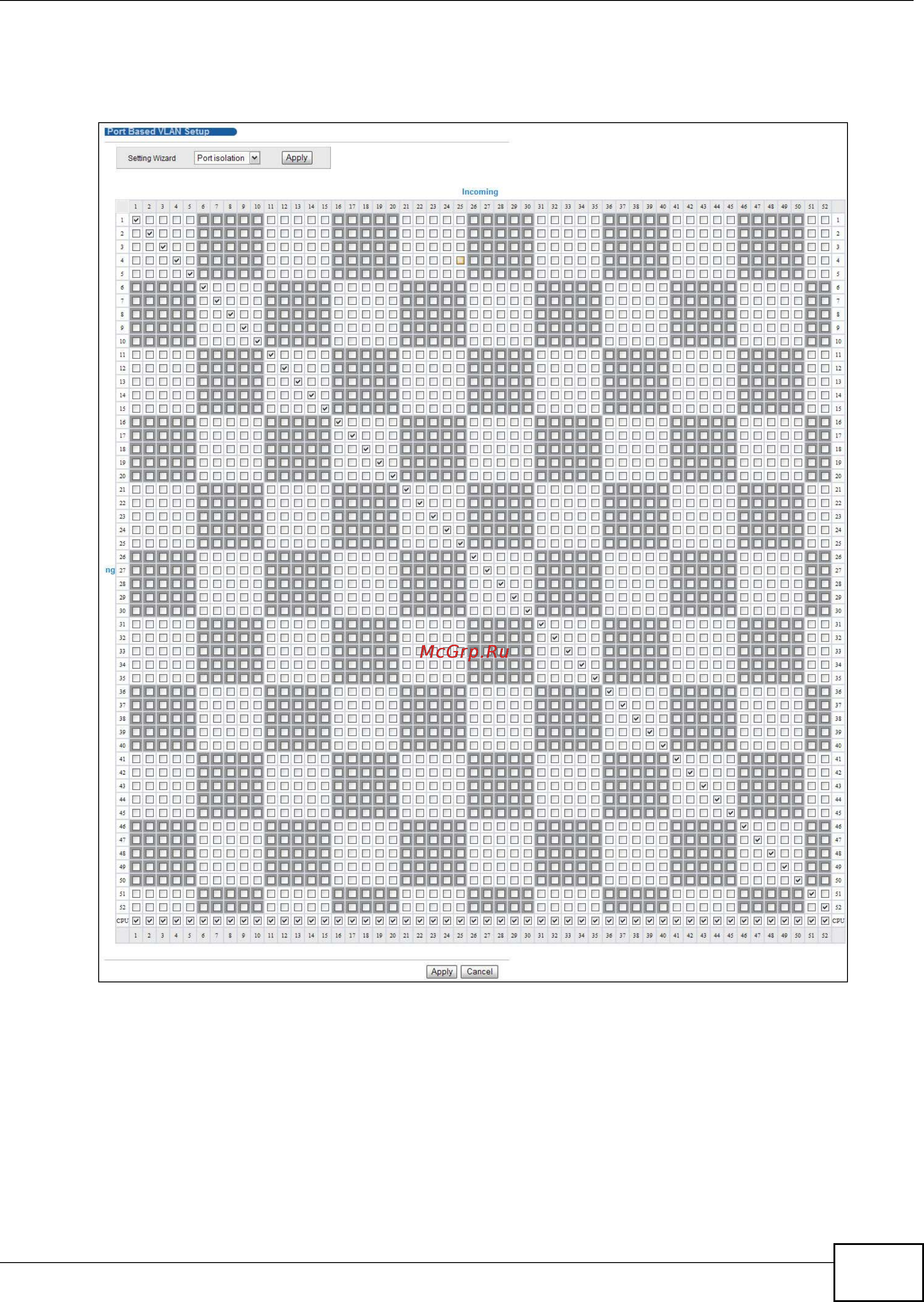

Figure 40 Advanced Application > VLAN: Port Based VLAN Setup (Port Isolation)
